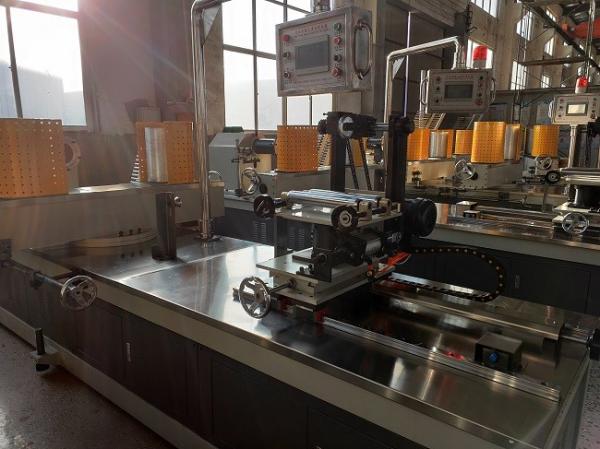

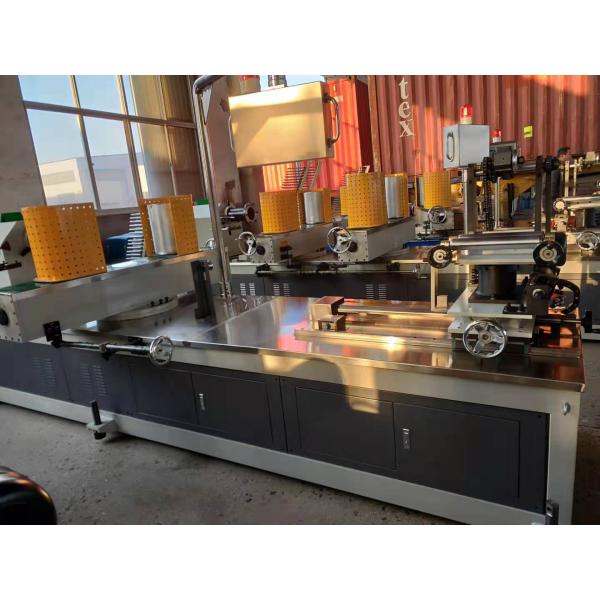

CNC Paper Tube Making Machine Servo Motor Runs Smoothly Low Noise
CNC Paper Tube Making Machine Servo Motor Runs Smoothly Low Noise
CNC Paper Tube Making Machine Servo Motor Runs Smoothly Low Noise
CNC Paper Tube Making Machine Servo Motor Runs Smoothly Low Noise
Specifications
Brand Name :
tiansheng
Model Number :
200type
Certification :
iso9001
Place of Origin :
china
MOQ :
1
Price :
Price negotiation
Payment Terms :
T/T
Supply Ability :
5set per month
Delivery Time :
45days
Packaging Details :
Stretch film
paper layer :
3-25
nner diameter of tube :
30-200（mm）
Thickness of tube :
2-15（mm）
Speed :
0-27（m/min）
Fixed length mode :
CNC (Optical Control)
Cutting type :
CNC Automatic Tracking for Cutting
Description

CNC high quality paper tube core machine, servo motor

Machine introduction

1. Suitable for paper tube with inner diameter Ø30-200mm; paper tube thickness 1-15mm.
2. According to different paper tubes, the speed of roll tube is between 0-25 (m / min).
3. Gear transmission makes the paper tube production process smoother and the equipment more stable.
4. Two fixed-length modes of numerical control and light control make the operation more convenient and fast.
5. The host motor is Shanghai Strong Speed (15kw). This product has strong output power and has an adjustable speed function.
6 The main machine rotates at high and low speeds, and uses different gears for different paper tubes to continuously maintain the normal operation of the motor, which can increase the power of the machine and extend the life of the motor.
7. The main unit is WP0155 reducer. This reducer runs smoothly and has low noise.

Technical parameter



Technical parameter
Control system

paper layer		 3-25layer PLC controller Professional products

Inner diameter of tube		 30-200(mm) Interface Professional products

Thickness of tube		 2-15(mm) Program version CX-P 9.04

Speed		 0-27(m/min) Frequency converter ENERGY

Fixed length mode
CNC (Optical Control)		 Intermediate relay/contactor chint

Winding head		 No resistance four nose Signal element (photoelectric switch, etc.) pefun/hugong

Cutting type
CNC Automatic Tracking for Cutting		 Button Siemens
Fixing Method of Core Rolling Die
Flange tightening		 Emergency stop Siemens

Gluing way
Double sides glue		 knob Siemens

control mode
Frequency control
Pneumatic components		 suopai/tianao/chengdi

Input voltage		 380V/220V
Synchronous control		 X-axis servo ball screw

Number of operators		 1-3people Synchronized tracking tube cutting system EURA Servo Motor

our client

Companies rely on scientific andtechnological progress, the introduction ofhigh technology, is committed to newproduct development and technologyimprovement, and is equipped with perfectsales network and service system, theproducts have been sold all over thecountry, but also with domestic and foreigntrade import and export companycooperation, products have been exportedto South Asia, West Asia, Middle East, Africa, North and South America, Russia, Ukraine and other countries. At present, thecompany has set up its own foreign tradesales department, will further developforeign trade.

CNC Paper Tube Making Machine Servo Motor Runs Smoothly Low Noise

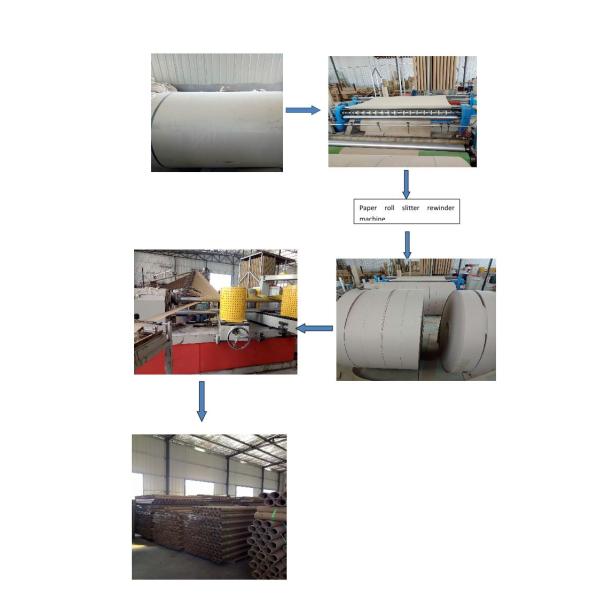

Paper tube production steps

CNC Paper Tube Making Machine Servo Motor Runs Smoothly Low Noise

CNC Paper Tube Making Machine Servo Motor Runs Smoothly Low Noise
