2 Heads Kraft Paper Tube Making Machine Corrugated Parallel Winding
2 Heads Kraft Paper Tube Making Machine Corrugated Parallel Winding
Specifications
Brand Name :
tiansheng
Model Number :
60type
Certification :
ISO9001 CE
Place of Origin :
China
MOQ :
1set
Price :
Price negotiation
Payment Terms :
T/T
Supply Ability :
5 set per month
Delivery Time :
45days
Packaging Details :
Stretch film
diameter :
15-60（mm）
paper layer :
2-7
Thickness :
1-5（mm）
Cutting type :
CNC Automatic Tracking for Cutting
Fixed length mode :
Numerical control
Synchronized tracking tube cutting system :
EURA servo motor
speed :
0-20（m/min）
Winding head :
Two head
Description

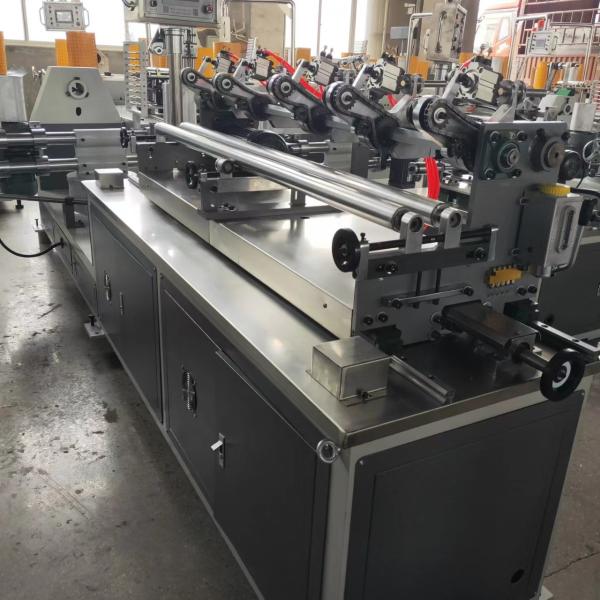

2 Heads Small Automatic Parallel Winding Multi Knife Cutter Kraft Corrugated Paper Tube Machine

paper tube machine Machine introduction

Usage: This machine is very Suitable for all kind of paper tube / paper can production. Such as package tin, tea caddy,

food cans, wine cans, fireworks tube, calendar tube, fax paper core, etc.

Machine Structure:

1.Low price,strong practicability,stable performance;

2.Automatically cut, automatically fall pipe,automatically change speed and revert;

3.Round knife cutting,incision more smooth,performance more stable;

4.Stainless steel gluing box,with polyurethane scraper and high carbon steel plastic

knife,durable in use;

5.Automatically glue.

paper tube machine technical parameter

paper layer 2-7layers
inner diameter 15-60(mm)
thickness 1-5(mm)
speed 0-20(m/min)
Fixed length mode Numerical control (light control)
Winding head Two head
Cutting method Circular knife CNC automatic
Gluing method Double-sided glue
way to control numerical control
Input voltage 380V/220V
Number of operators 1-3
total weight 2104kg
