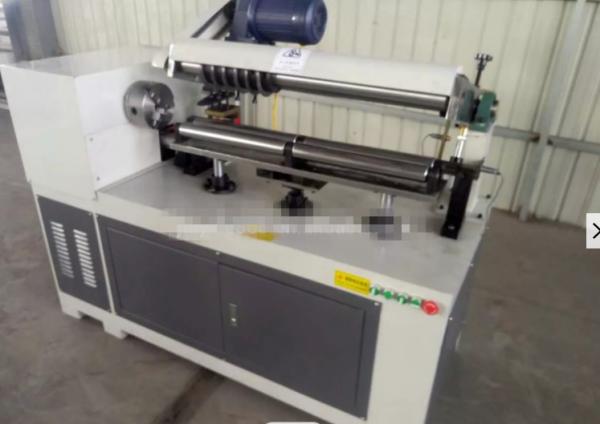

Toilet Paper Tube Cutting Machine , Automatic Paper Core Cutting Machine
Toilet Paper Tube Cutting Machine , Automatic Paper Core Cutting Machine
Specifications
Brand Name :
TIANSHENG
Model Number :
small
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1SET
Price :
Price negotiation
Payment Terms :
T/T
Supply Ability :
5 SET PER MONTH
Delivery Time :
45DAYS
Packaging Details :
Stretch film
diameter :
Φ15-50(mm)
Paper tube thickness :
1-5(mm)
Length of cut pipe :
50-800(mm)
Cutter number :
6 groups (standard)
Control mode :
Button click
Motor power :
1.5kw+1.5kw
Cutting speed :
6times/minute
Charge :
Manual
Description

Toilet Paper Tube Cutters Cardboard Tube Blades Cutting Machines

Equipment advantage:

1. Adopts PLC control system and modular electrical layout design system;
2. Equipped with automatic variable speed cutting machine and automatic tracking cutting, which make the paper tube length more accurate;
3. The machine has reasonable design, stable performance, easy operation, stable running;
4. Automatic finished paper tube unload stand, which can reduce the labor intensity.

Technical parameter Control system

Paper tube diameter		 Φ15-45(mm) Major Executing Devices (Contactors, etc.)
CHINT

Paper tube thickness		 1-5(mm) Signal elements
(proximity switches, etc.)
Pefun

Length of cut pipe		 50-800(mm)
Cylinder element		 CEHNGDI/SUOPAI/
TIANAO

Cutter number
6 groups (standard)		 Configuration device

Working air pressure		 0.6MPa
Charge
Manual

Control mode
Button click
Blanking
automatic

Motor power		 1.5kw+1.5kw

Toilet Paper Tube Cutting Machine , Automatic Paper Core Cutting Machine

sale services:
1, Provide professional technical support according customer's requirments.
2, Send the machine catalog and instruction manual.
3, If you have any questions please contact us online or send us email,we promise to reply you as quickly as possible.

FAQ

1.We will provide you the FOB price at first time. The factory price,guarantee the lowest price. If you need CIF price, we will give you the quotation after asked the freight agent. The price is very transparent. And also you can use your freight agent.

2.30% deposit T/T in advance,pay the balance payment before shipment.

Toilet Paper Tube Cutting Machine , Automatic Paper Core Cutting Machine
