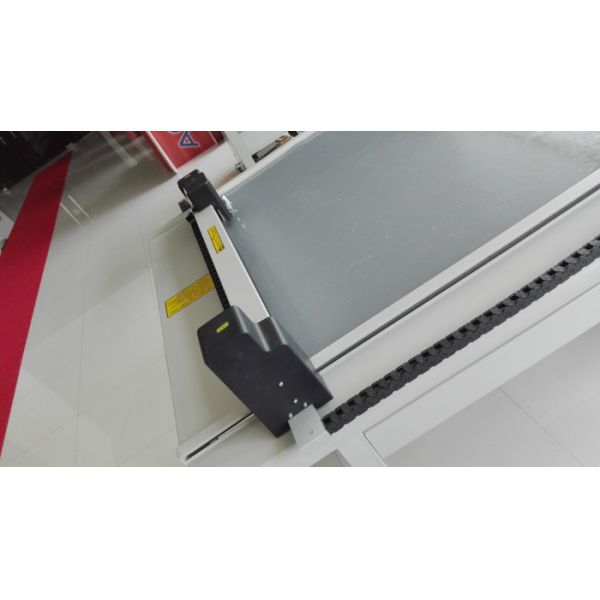

GD Series Fabric Sample Cutting Machine Garment Pattern For Cloth Industry
GD Series Fabric Sample Cutting Machine Garment Pattern For Cloth Industry
GD Series Fabric Sample Cutting Machine Garment Pattern For Cloth Industry
GD Series Fabric Sample Cutting Machine Garment Pattern For Cloth Industry
Specifications
Brand Name :
MAXWELL CUT
Model Number :
MEC
Certification :
CE
Place of Origin :
SHANGHAI CHINA
MOQ :
1 units
Price :
up to the sizes
Payment Terms :
TT, WU, Paypal
Supply Ability :
30 sets per month
Delivery Time :
within one month after we get the order
Packaging Details :
wooden boxes
Product Name :
garment sample cutting and drawing machine
Model :
GD0906
Effective cutting area :
900*600mm
Application :
apparel pattern making
Smallest cutting diameter :
1.3mm
Maximum cutting thickness :
2mm
Cutting Materials :
foam, EVA, PVC,PP Sheets, polypropylene corrugated sheet ,corrugated cardboard up to 60 mm, cartons, laminates, printing blankets， coating plates, preprinted vinyl films, reflective sheeting, textile and technical fabrics, soft,
Cutting thickness :
less than 100mm
Size :
1300*1000mm, 1800*1500mm, 2500*1600mm, 3000*1600mm, 3000*2000mm, customerised
tools :
oscillating knife, Creasing wheel, Pen, laser light,
Tools :
Pneumatic tool, Vcut, Kiss Cut, CCD
TABLE :
Flatbed, Conveybelt,
Description

GD series costume pattern cutting plotter

Introduction:

The GD series costume pattern cutting plotter is particularly suitable for the industry with high requirement on the cutting and plotting accuracy of the machine It is generally used for making costume pattern with the materials such as white paperboard, craft board, red hardboard, and so om This flatbed cutting machine is an ideal tool for costume sample maker. Our costume pattern cutting plotter is configured with plotting pen and special cutting knife, capable of completing cutting and plotting in one time. Compatible with any CAD software, this costume pattern plotting machine can receive the drawing from the CAD software for cutting and plotting. This product also called costume pattern cutting machine, plotter, cloth sample making machine and so on, according to the different cutting material and application.

Main Features:

The imported steel belt drive makes for high accuracy and fast processing speed.

The stable performance is conducive to the high convenience and low failure rate of the costume pattern cutting plotter.

Optimal compatibility ensures perfect combination with any CAD software.

Ctting materials:

Card paper, kraft paper

Application:

cloth

Specification:

Model GD1209 GD1509 GD1512
Effective cutting area 1200*900mm 1500*900mm 1500*1200mm
Configuration Special knife, pen
Way of fixing paper way Vacuum absorbing
Driving material Import steel belt
Cut materials Red hard paper,plastic board,white board,kraft paper
Cutting way Drawing by pen,half cutting,whole cutting
Cutting thickness 0.5-2mm
Cutting precision ≤0.05mm
Max speed 1000mm/s
Working time and character Continuous work, operating computer and cutting at the same time, linear high-speed transmission for data.
Transmitting port International standards: parallel port/RSC232 serial port
Instruction set International standards: HP-GL or DXF form can be selected selected, It is compatible with all kinds of CAD software
Driver Step motor
Pen type General signing pen, oil pen, ball pen
Main structure Cutting platform,head,driving system,control cabinet,control micro computer,frame,vacuum pump
Voltage AC 220V 50HZ
Fuse standard 5A
Occupy dimension (L*W*H) 1635*1365*1080mm 1935*1365*1080 1935*1665*1080
Note Other size can be customized.

Cutting Samples

GD Series Fabric Sample Cutting Machine Garment Pattern For Cloth Industry
