High Speed Cardboard Grooving Machine Low Noise No Rough Edge 40m / Min
High Speed Cardboard Grooving Machine Low Noise No Rough Edge 40m / Min
High Speed Cardboard Grooving Machine Low Noise No Rough Edge 40m / Min
High Speed Cardboard Grooving Machine Low Noise No Rough Edge 40m / Min
Specifications
Brand Name :
MAXWELL CUT
Model Number :
MEC
Certification :
CE
Place of Origin :
SHANGHAI CHINA
MOQ :
1 units
Working speed :
40m/min (150-200 pcs/min)
Carboard size :
140*120-800*600mm
Cardboard thickness :
1-4mm
MDF Thickness :
3mm （MAX）
Price :
up to the sizes
Packaging Details :
wooden boxes
Delivery Time :
within one month after we get the order
Payment Terms :
TT, WU, Paypal
Supply Ability :
30 sets per month
Cutting Materials :
foam, EVA, PVC,PP Sheets, polypropylene corrugated sheet ,corrugated cardboard up to 60 mm, cartons, laminates, printing blankets， coating plates, preprinted vinyl films, reflective sheeting, textile and technical fabrics, soft,
Cutting thickness :
less than 100mm
Size :
1300*1000mm, 1800*1500mm, 2500*1600mm, 3000*1600mm, 3000*2000mm, customerised
tools :
oscillating knife, Creasing wheel, Pen, laser light,
Tools :
Pneumatic tool, Vcut, Kiss Cut, CCD
TABLE :
Flatbed, Conveybelt,
Description

Automatic High Speed Grooving Machine , cardboard, MDF, grooving machine, 75°-140° angle, 1-3mm thickness,

Introduction

LS-1200B Automatic high speed grooving machine is newly invented based on the experience of older roller groover. We apply the new technology which uses some belts to bind the card board and the roller together to convey the cardboard. This technology makes the groove straight and correctly. Thereby the products are on great quality.

Advantage

  • High speed
  • Automatic feeding
  • Dustless and no noise
  • Automatic collecting
  • No rough edge
  • Automatic aligning
  • Grooving angle adjustable from 75°to 140°

Product range

  • 1--4mm cardboard
  • 1--3mm MDF
  • 0.4--1mm thin paper
  • Triangle cardboard

Specification

Quantity of Groove at a time 8 slots
Working speed 40m/min (150-200 pcs/min)
Cardboard size 140*120-800*600mm
Cardboard thickness 1-4mm
MDF Thickness 3mm (MAX)
Grooving distance (min) 0
Angle of the grooves 75°-140°
Machine Dimension 2015*1320*1350

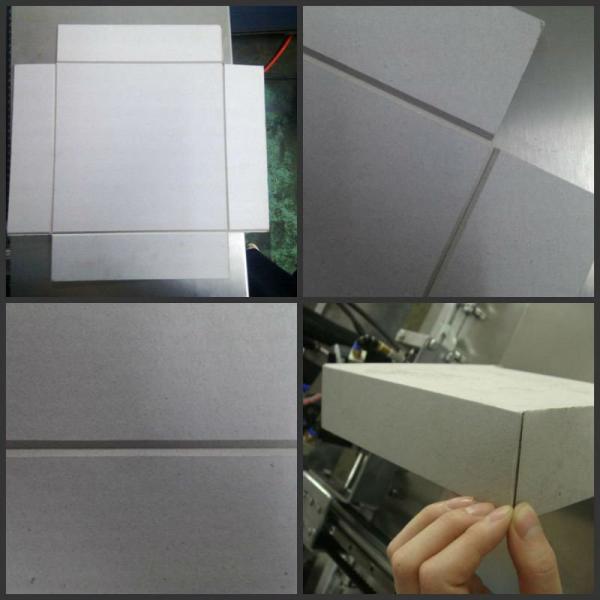

samples

High Speed Cardboard Grooving Machine Low Noise No Rough Edge 40m / Min

High Speed Cardboard Grooving Machine Low Noise No Rough Edge 40m / Min
