Economical Heart Shaped Disposable Paper Plates Making Machines Long Lasting Universal
Economical Heart Shaped Disposable Paper Plates Making Machines Long Lasting Universal
Economical Heart Shaped Disposable Paper Plates Making Machines Long Lasting Universal
Economical Heart Shaped Disposable Paper Plates Making Machines Long Lasting Universal
Economical Heart Shaped Disposable Paper Plates Making Machines Long Lasting Universal
Economical Heart Shaped Disposable Paper Plates Making Machines Long Lasting Universal
Specifications
Brand Name :
Mingyuan
Model Number :
ZDJ-400K
Certification :
CE, SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
150 sets each Yeah
Delivery Time :
30 days
Packaging Details :
Export standard Wooden Case
Plate Size :
3 Inch to 11.5 Inch
Raw Material :
Cardboard Paper, PE coated Paper, Uncoated Paper or Others
Net Weight :
500 KGS
Gross Weight :
550 KGS
Speed :
70 – 100 pcs/min ( Two Working Station)
Paper Weight :
160 GSM to 500 GSM
Description

Economical Heart Shaped Disposable Paper Plates Making Machines Long Lasting Universal

Quick Details

Paper Plate Size 3-11 inch (mould exchangable), Bigger or specially available
Productivity 70-100 Pcs/min
Warranty 1 years
Usage Round Plate or other shape plate
after-sales service Engineers available to service machinery overseas
Description

Model ZDJ-400K Medium-speed Automatic Paper Plate Forming Machine was developed and researched in order to meet the market requirement. It has integrated the pneumatic and the mechanic technologies, which makes it has the functions of faster working speed, higher safety-performance, safer operation and easier maintenance. Model ZDJ-400 medium-speed paper plate machine adopts high efficient pressurizing air cylinder, so that the Max. Pressure can reach to 5 Ton. Compared with the oil pressure one, it has the advantages of high speed, environment protection and humanism design.

It is widely applied to make paper plate (or aluminum foil laminated paper plate) in round (rectangle, square, circular, or irregular) shape.

Specification

Paper Plate Size 3-11 inch (mold exchangeable)
Paper Material 180-500g/m2 Paper/paperboard, aluminum foil coated paper, one side PE coated paper or other
Speed of Production 70-100 piece/minute (total two working stations)
Power Source 220V 50Hz
Total Power 3KW
Total Weight 500KG
Package Size 1480×1150×2050 mm
Working Air Source

Air pressure:0.8Mpa,

Air Out-put: 1.5m³/minute

Advantage

Mold Installment The machine is with two free molds installed
Air Cylinder Our machine use much more stroner air cylinder than others, which makes the plate pressing more exactly(we use Taiwan cylinder)
Paper Clamping Manipulator The paper plate machine is using the automatic paper clamping manipulater system, which save a lot of time and labor costs
Free Spare Parts

one year guarantee,will give spare parts with machine while packing (enough for 2 years using) with one year,all parts given for free,

after that we need charges and delivery cost

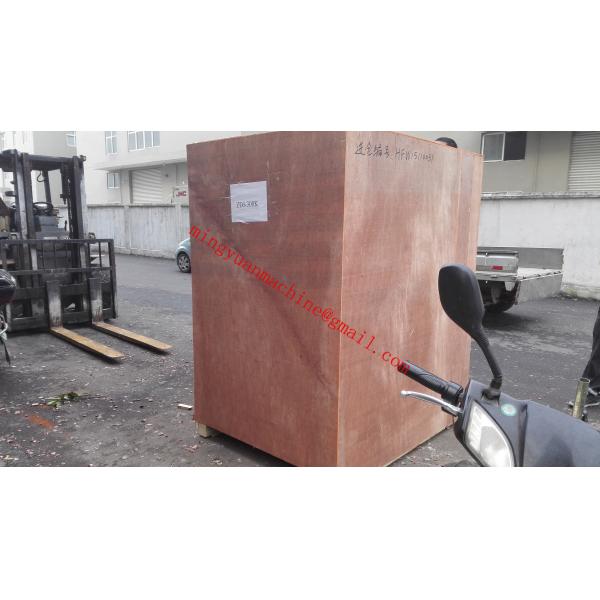

Loading Machine

Economical Heart Shaped Disposable Paper Plates Making Machines Long Lasting Universal
