Automated Paper Cup Forming Machine , Electric Paper Cup Making Machinery

Paper Cup Forming Machine Technical Specification:

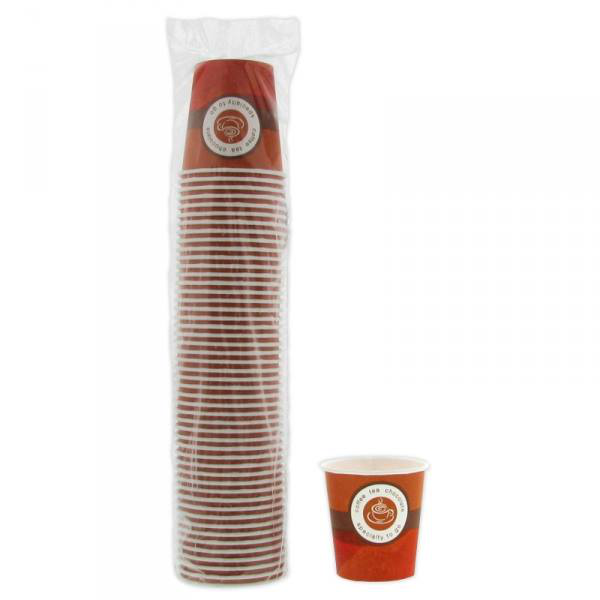

Paper Cup Sample

Paper Cup Size forming Limit in Standard Machine(If size out limit should custom design machine):

Main improved:

1, Adopt Open Cam for the dividing moving, compare with index gear box, easy maintenance, stable and reliable, easy replace broken parts.

2, Main mechanism and moving parts are controlled by quality gears, which is more efficient and more stronger than chain and axis.

Full Gear System Only One Small Chain in Machine

Normal design Chain system in machine

Machine different parts connected by Chains which only support for Lower speed(Suitable speed lower than 60 pcs each min) Also Chain with short span life(Span Life round 2 years)

3. Adopt Three Cam which for control Machine Fours Spare parts running( Running Stable for sealing paper fan, Also difficult broken)

The left Cam is for control the left closing holder.

The right Cam is for control the right closing holder.

The middle Cam is for controlling Sucker and Rod Hold paper fan

Normal design only one Cam

As only one cam for controlling the paper fan holders opening and closing , the machine only can run at low speed of 40-50pcs/min .

4, Machine inner with Single Shaft from Start to End for control whole machine Running which difficult broken and easy control Whole machine running

Normal design machine inner connected by Chains for main controlling

Machine connected by Chains which separate do control different parts running, The spare will easy out of location, client need adjust and testing machine frequent.

5, Automatic Oil Lubrication System For oil lubrication machine moving
Spare Parts Which to Make sure machine running high Speed but spare still keep long Spanlife

Automatic oil Lubrication system

The automatic oil lubrication system which keep machine high speed running smooth, also keep the moving parts with long span life .

Manual oil machine moving parts : the worker to do it which easy forget it.

If machine runs long time without oil lubrication ,the machine will be very easy broken.

6, Full Automatic Silicone oil lubrication system direct for paper fan

New design silicone oil lubrication system is controlled by PLC

Normal design

Normal design silicone oil lubrication system is simple .

7, Machine With Reducer Motor which Keep sure Machine running Stable in high Speed ( Normal Machine the Motor and reducer is Separate connected by belt each broken if run high Speed)

internally geared reducer motor Normal design

Internally geared reducer motor design which is including the motor and reducer function and makes machine running much traction power ( high speed 80 pcs/min), also this type motor is easy for maintenance with long years span life .

Normal design : the reducer and motor function are separated . The traction power very small which limit the machine running speed (low speed 40-50 pcs/min) and the belt also is easily broken .

8, Machine with Paper Fan Two Time feeding design which Easy For adjust and control paper fan sealing

New Design two times paper fan feeding Normal design direct paper fan feeding

New design two times paper fan feeding which for control paper fan to go to sealing heater one by one , which is easy for adjust and control paper fan sealing .

Normal design direct paper fan feeding which paper fan easy jam and trouble in paper

fan sealing heater part , which is also difficult to adjust it .

9, New design : Add Pic showed switch which is Auto control sucking down paper fan or not . No need to push up the paper fan stocker when no need paper fan running

10, Only ONE main turntable, more efficient and reliable. The Bottom paper
direct feeding to Mould which increase machine running Speed

Normal design three turntable

three turntable is low efficiency

12, Use the 18 mm thickness iron base and 16mm thickness legs , which make machine much heavy( Net weight 1700KG), Machine is running high speed very stable no shake.

13, Plain shaft which is not easily broken and has long span life is used in machine key connection parts instead of the screws(the screws is used in normal type machine )

High speed Ultrasonic heater single plate open cam paper cup machine

Advantage design (high configuration)
