Specifications
Brand Name :
Fect
Model Number :
MQ970
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD 31000.00 - 33000.00 per set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
90 sets per month
Delivery Time :
within 30 working days after payment confirmed
Packaging Details :
Wooden case/roll to sheet box cardboard creasing paper cup die cutting machine
Machine name :
roll to sheet box cardboard creasing paper cup die cutting machine
Max. cutting surface :
950*510mm
Paper grammage :
100-500 gram
manufacturing ability :
90-180 times per min
Max. die-cutting speed :
10800 pcs per minute
Max. feed width :
970 mm
Max. unwinding diameter :
1600 mm
Max cutting pressure :
320 Ton
Max die cutting width :
950 millimetre
Type :
Paper cup die cutting machine
Description

roll to sheet box cardboard creasing paper cup die cutting machine

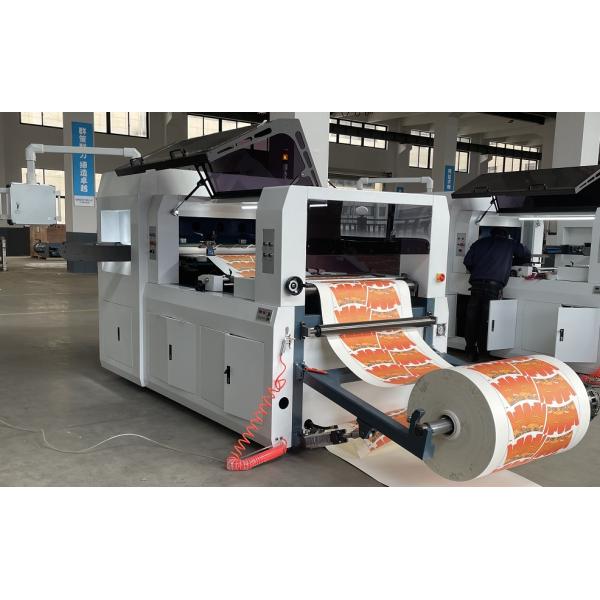

This MQ970 automatic web die-cutting machine based on international advanced technology has high stability, high safety performance, high precision. It is the ideal and professional machine in die-cutting, creasing, embossing, and full-stripping various PE coated paper, normal paper, corrugating paper. it’s widely used in the printing, packaging, and paper products industries, such as the production of paper cups, paper boxes, medical packages, wine packages, food packages, and other environmental protection products.

It adopts a micro-computer, human-computer control interface, servo positioning, alternating current frequency converter, automatic counting, manual pneumatic lock plate, photoelectric correcting deviation system, electromagnetic clutch, centralized oil lubrication, overload protection, and distinctive gearing. So it guarantees smooth operations of returning paper and feeding paper, precise positioning, and orderly withdrawing.

Such installation can realize the machine in steady pressure, precise positioning, smooth moving, safety, and reliability.

970mm Paper Cup Die Cutting Machine 100 To 500 Gram Cardboard Creasing Machine970mm Paper Cup Die Cutting Machine 100 To 500 Gram Cardboard Creasing Machine

970mm Paper Cup Die Cutting Machine 100 To 500 Gram Cardboard Creasing Machine

Technical parameters of roll to sheet box cardboard creasing paper cup die cutting machine

Model MQ970*550
Max cutting area 950*510mm
Cutting precision ±0.2mm
Paper gram weight 100-500g
Production capacity 90-180times/min
Max die cutting speed 10800pcs/min
Max roll feeding width 970mm
Max unwinding diameter 1600mm
Max cutting pressure 320T
Max die cutting width 950mm
Total power 12KW

Unwinding Unit

Adopts chain type pneumatic roller unwind, tension controls unwind speed ,and that is hydraulic, it could support at least 1.5T, Max. roll paper diameter is 1.6m.

970mm Paper Cup Die Cutting Machine 100 To 500 Gram Cardboard Creasing Machine

Collection unit

By the action of the entity induction switch, finished product will be automatically lowered down to remain the height of the pilling paper unchanged, during the whole die-cutting process, manual paper-taking is not needed.

970mm Paper Cup Die Cutting Machine 100 To 500 Gram Cardboard Creasing Machine

Automatically fold and flatten the cornering materials at the paper core. It realized the multistage adjustment of the folding degree. No matter how bent the product is ,it can be flatten or refolded towards other directions.

970mm Paper Cup Die Cutting Machine 100 To 500 Gram Cardboard Creasing Machine

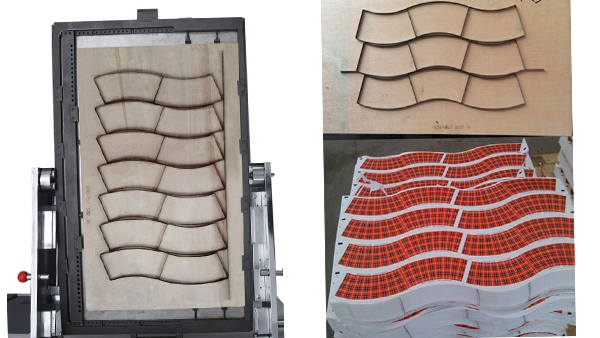

Die cutting department adopts pneumatic lock version of the device to avoid come off from the machine.

Die cutting plate: 65 Mn steel plate heating treatment, high hardness and flatness.

Die cutting knife plate and plate frame can be taken out so that it can save plate-changing time.

970mm Paper Cup Die Cutting Machine 100 To 500 Gram Cardboard Creasing Machine
970mm Paper Cup Die Cutting Machine 100 To 500 Gram Cardboard Creasing Machine

970mm Paper Cup Die Cutting Machine 100 To 500 Gram Cardboard Creasing Machine
