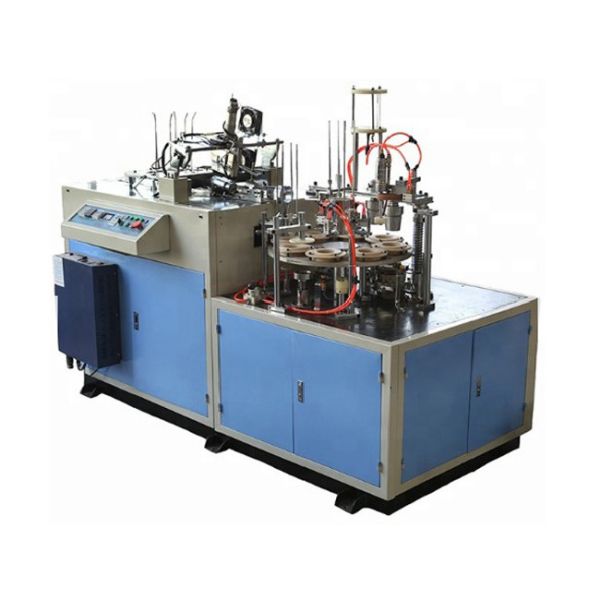

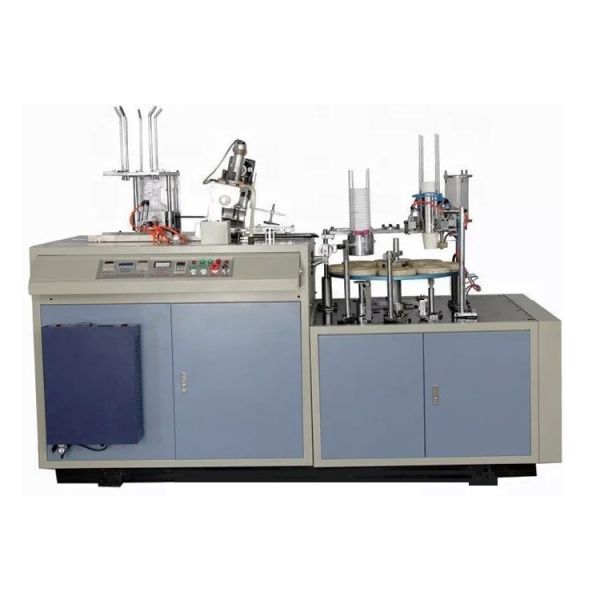

Automatic Hollow Overcoat Molding Machine of Paper Cup and Bowl is the supporting equipment of Automatic Molding Machine of Paper cup and bowl, with the advanced technology and reasonable design, it has the functions of automatic paper feeding, sealing ,spin coating, error warning, counting and so on.

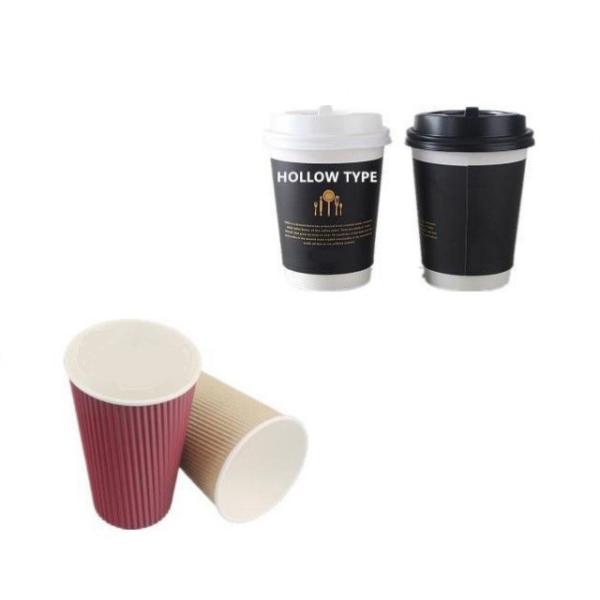

Overcoat Machine of Paper bowl has two forms of expression: Direct packing overcoat machine and hollow overcoat machine .direct -packing overcoat machine means that the overcoat is directly attached outside of white paper bowl ,without the gap between the inner layer ,with the rolling bottom in the bottom of outside layer, it is more heat-proof than the direct-packing.
♦Technical Specification♦
Type
| PFD-24 |
Cup size: | 4-50 oz (other customized size) Max. height 120 mm |
Production capacity
| 45-50 pcs/min |
Power source:
| 220V/380V 50HZ(please inform us your power in advance) |
Suitable Material:
| Gray bottom white paper(200-400g/m2) |
Total Power:
| 4 KW |
Weight:
| 1000KG/1144kg |
Packing size
| 2100 x 1250 x 1750 mm/ 2.35*1.25*1.75 m |
Collection device(Optional)
| 0.9*0.9*1.8 m/ 100kg/172 kg |
♦Components brand♦
Motor |
Main motor
| JINGGUANG(CHINA) |
Knurling motor | SHANGHAI DEDONG(CHINA) | |
educer
| HANTIAN(CHINA) | |
gear box
| LI ZHONG(CHINA) | |
Electric elements |
Frequency converter
| EURO (CHINA) |
All other electrical parts
| CHNT(CHINA) | |
Ultrasonic
| KEJIAN(CHINA) / Ever Green(TAIWAN.CHINA) | |
sensors
| (CHINA) | |
Pneumatic | cylinder | MINGMAN SHAKO (TAIWAN) |
Bearing |
other bearings
| (CHINA) |
FAQ
Q1: Are you manufacturer or trading company?
A: We have our own factory and export team, welcome to visit our factory, we can pick you up at the airport.
Q2 : Do you have relevant certificate?
A: Yes, so far, we have CE, ISO, etc. we also can issue CO, Form E, etc if you need.
Q3 : What payment terms are accepted?
A: TT(Telegraphic Transfer), Western Union, MoneyGram, LC, etc.
Q4 : Do you inspect the finished machines?
A: Sure, we test every machine before packing and provide test video.
Q5 : When can the machine be shipped after order is placed?
A: It depends on machine model and quantity, some stock machines can be shipped within 25 working days after payment, other customized machines start production after deposit arrived, please contact our staff for detail info.
Q6: How about the warranty and after-sale service?
A: Our machines have one years warranty and lifetime technical support. Help is always just one call or email, and then we can provide a suitable solution within 8 hours after analyzing and estimating the problem. Remote training and door-to-door service is available.
