Double Slot Stainless Steel High Vacuum Felt Water Suction Box For Paper Making Press Part
Double Slot Stainless Steel High Vacuum Felt Water Suction Box For Paper Making Press Part
Double Slot Stainless Steel High Vacuum Felt Water Suction Box For Paper Making Press Part
Double Slot Stainless Steel High Vacuum Felt Water Suction Box For Paper Making Press Part
Double Slot Stainless Steel High Vacuum Felt Water Suction Box For Paper Making Press Part
Double Slot Stainless Steel High Vacuum Felt Water Suction Box For Paper Making Press Part
Double Slot Stainless Steel High Vacuum Felt Water Suction Box For Paper Making Press Part
Double Slot Stainless Steel High Vacuum Felt Water Suction Box For Paper Making Press Part
Specifications
Brand Name :
YUXING
Model Number :
CUSTOMIZED
Certification :
CHINA LIGHT INDUSTRY STANDARD
Place of Origin :
CHINA
MOQ :
1set
Payment Terms :
T/T, Western Union, MoneyGram
Delivery Time :
7 work days
Packaging Details :
export standard package
Length :
customized
Width :
customized
Material :
ceramic and stainless steel
Type :
Paper Machine Part
Application :
PaperMaking
Condition :
New
Dimension(l*w*h) :
up to the type
Computerized :
No
Product type :
paper making machine
Processing type :
paper making machine
Description

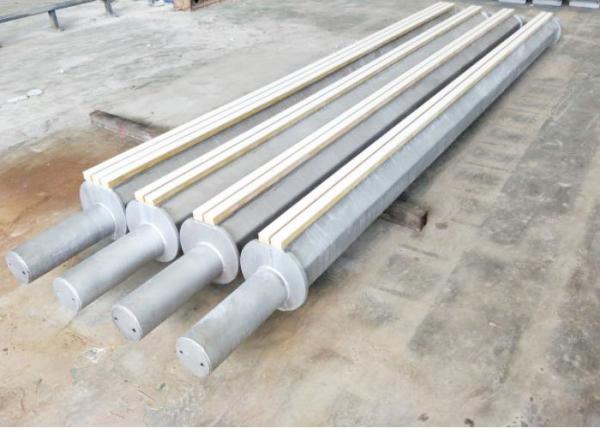

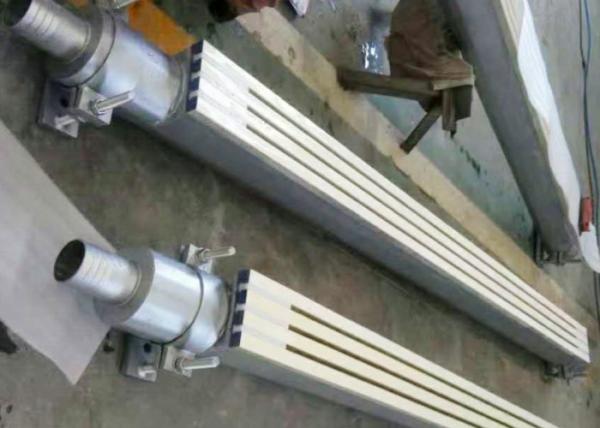

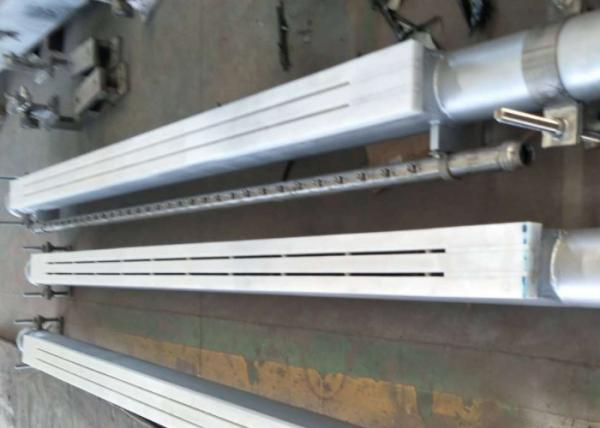

Double Slot Stainless Steel High Vacuum Felt Water Suction Box Of Paper Making Machine Press Part

Material: The box body is welded by stainless steel, special heat treatment is carried out to prevent deformation of the workpiece, and the panel is all ceramic.

Adjusting device: It is equipped with high and low, front and rear adjustment devices, which can be moved back and forth on the T-shaped rail surface of the wire table, and the degree of contact with the net surface can be adjusted in a small amount. End seal suction width adjustable.

1 face board

Long strip board with rake angle, horizontal support surface and backward inclination angle. The bottom is made into various tongue and groove shapes to match the connection bracket.

The face board requires a low coefficient of friction and is wear-resistant. Commonly used materials are high-molecular polyethylene, inlaid ceramic strips, and all-ceramic blades.

High-density polyethylene has a life of about 3 months, low price, can be reground three times, and is only used for low-speed paper machines;
2 Frame It is a stainless steel box structure, which requires high rigidity and small deformation. The brackets at both ends can be adjusted back and forth and up and down
3 The service life of ceramics can reach several years, and the friction coefficient on the paper making wire is small, and it is easy to keep clean. Although the cost is high and the processing difficulty is large, it is used more and more.

Double Slot Stainless Steel High Vacuum Felt Water Suction Box For Paper Making Press PartDouble Slot Stainless Steel High Vacuum Felt Water Suction Box For Paper Making Press PartDouble Slot Stainless Steel High Vacuum Felt Water Suction Box For Paper Making Press PartDouble Slot Stainless Steel High Vacuum Felt Water Suction Box For Paper Making Press PartDouble Slot Stainless Steel High Vacuum Felt Water Suction Box For Paper Making Press Part

Double Slot Stainless Steel High Vacuum Felt Water Suction Box For Paper Making Press Part
