Kraft Paper Making Equipment Horizontal Pneumatic Winding / Reeling Machine
Kraft Paper Making Equipment Horizontal Pneumatic Winding / Reeling Machine
Kraft Paper Making Equipment Horizontal Pneumatic Winding / Reeling Machine
Kraft Paper Making Equipment Horizontal Pneumatic Winding / Reeling Machine
Kraft Paper Making Equipment Horizontal Pneumatic Winding / Reeling Machine
Kraft Paper Making Equipment Horizontal Pneumatic Winding / Reeling Machine
Kraft Paper Making Equipment Horizontal Pneumatic Winding / Reeling Machine
Kraft Paper Making Equipment Horizontal Pneumatic Winding / Reeling Machine
Specifications
Brand Name :
YUXING
Model Number :
2500mm
Certification :
China light industry standard
Place of Origin :
China
MOQ :
1set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Delivery Time :
45days
Packaging Details :
sea worthy package
material :
steel plate ,cast iron
width :
2500mm
jumbo roll diameter :
2000mm
paper types :
all kinds of paper
color :
grey ,green , as demands
design speed :
250m/min
Condition :
New
Warranty :
1year
paper variety :
kraft paper
gsm :
100-200
Description

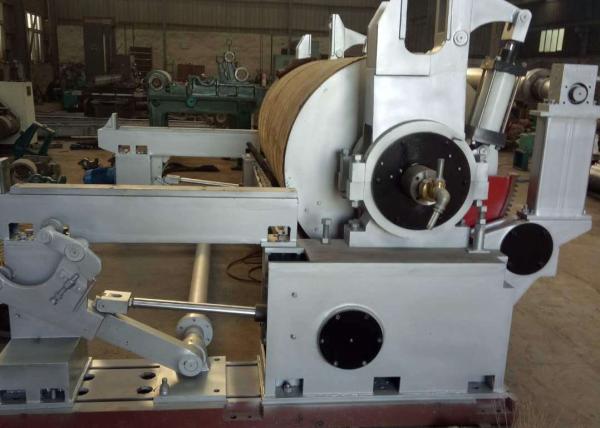

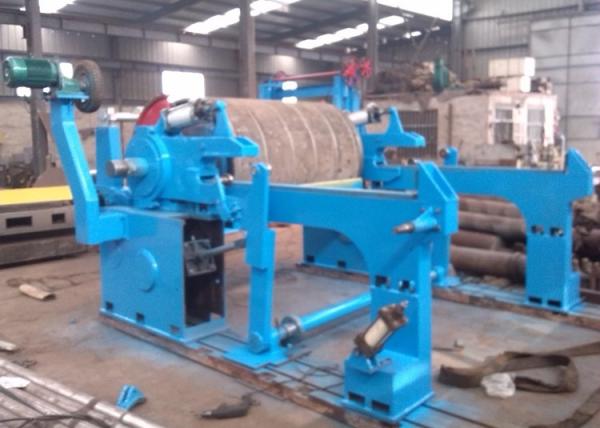

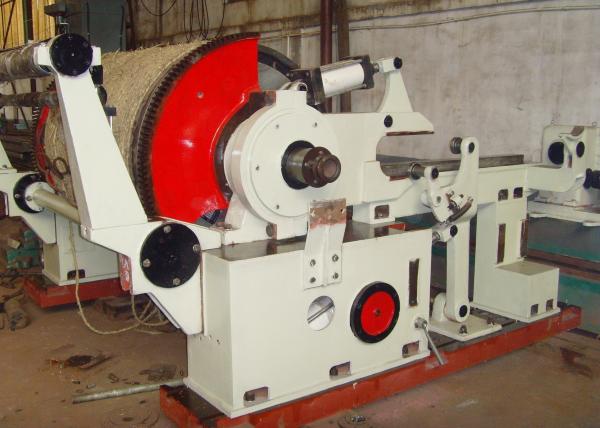

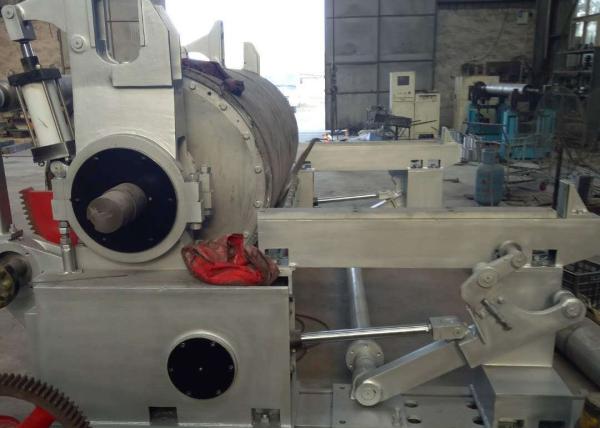

2500mm horizontal pneumatic winding machine

Technical specification

I. Overview

This serial horizontal paper winding machine is matched with paper machine with the same net jumbo roll width and is used to roll paper into tight and uniform rolls.

During operation, the winding roller is close to the rotating cooling cylinder, and is driven to rotate by the friction of the surface. The linear pressure between the winding roller and the cooling cylinder can be adjusted by controlling the air intake pressure of the auxiliary arm air cylinder and the main arm air cylinder through the console. Therefore, it can meet the needs of different paper types.

Since the winding roller is driven by the surface friction of the cooling cylinder, as the diameter of the paper gradually increases, the rotation speed of the paper roll is correspondingly reduced, no additional speed adjustment is required, and the operation is convenient.

This series of products can be divided into left and right arrangements according to different transmission positions. Stand facing the machine at the end of the paper roll. If the transmission device is on the right side, it is called the right hand machine , if the transmission device is on the left side, it is called the left hand machine . It should be consistent with the direction of the paper machine When the user chooses.

II.Main specification

Item Specification
Jumbo roll width 2500mm
Machine type Horizontal
Controlling form Electric / Pneumatic
Winding linear pressure 2-4N/mm
Spreader roll Movable curved roller
Max winding diameter Φ2000mm
Working speed 150m/min
Cooling cylinder diameter Φ1100mm
Winding roll diameter Φ240mm
Bearing center distance
Overall size As final drawing
