Specifications
Brand Name :
YUXING
Model Number :
CUSTOMIZED
Certification :
CHINA LIGHT INDUSTRY STANDARD
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
T/T, Western Union, MoneyGram
Delivery Time :
7-10 WORK DAYS
Packaging Details :
STANDARAD EXPORT PACKAGE
Material :
Polyester
Product name :
Sprial Dryer screen
Size :
As required
Weight :
Depends
Application :
the drying section of paper machines
Type :
Medium ring
Color :
White/Blue/Red
sprial ring width :
7.2mm
Thickness :
2.45mm
Air permeability m³/㎡h :
820 CFM
machine speed :
below 400m/min
Description

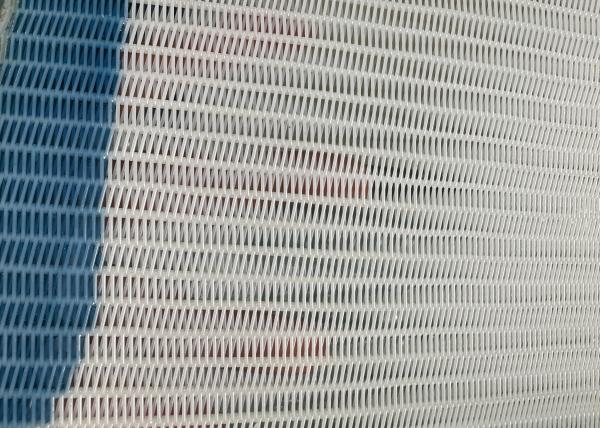

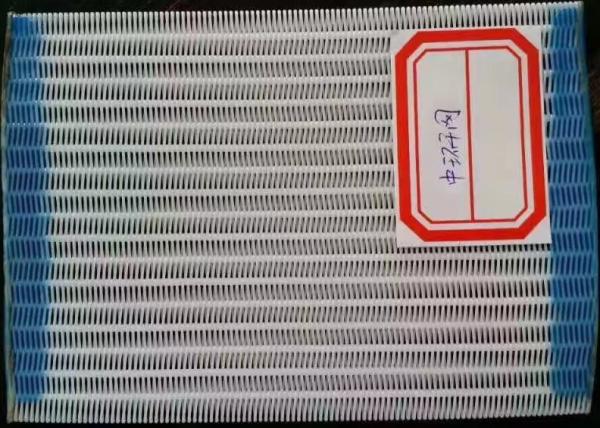

Medium And Low Speed Fluting Paper Machine Polyester Spiral Medium Ring Dryer Screen

1.spiral dryer fabric uses high-strength monofilament and is suitable for drying packaging paper, cultural paper, board paper and pulp board with large quantitative quantities. It is widely used and can also be used as conveyor belts and mesh belts for laminating machines.

2.It has high air permeability, flat mesh surface, can be detached and connected at will, has good strength and long service life.

3.Specification

Wire model Ring width
mm		 Wire diameter
mm		 Strength
N/cm		 Weight
Kg/㎡		 Thickness
Mm		 Air permeability
m³/㎡h		 Reference filtering accuracy
Um
Warp Wept
Medium ring 6890A 8 0.68 0.9 2000 1.31 2.45 18000 1125
Medium ring 6890B 7.15 0.68 0.9 2000 1.4 2.45 16000 1000

Dry net is an important part of the dryer of the paper machine. Its function is to filter water and level the paper.

Polyester mesh is one of the main drying and filtering materials in the world, so it is widely used in the field of paper making, and it is an indispensable and expensive dewatering equipment in the paper making industry.

The manufacturing process of polyester mesh is generally: shaping, weaving, primary setting, plug-in, secondary setting

Polyester mesh has the characteristics of high strength, small deformation, good corrosion resistance, abrasion resistance, and long life.

Features: It has acid resistance, alkali resistance, wear resistance, high temperature resistance, long service life, flat mesh surface, high tensile strength, and good breathability. High heat transfer efficiency can save energy for users. Easy to install and use, no marks on the interface, strength can reach normal network
