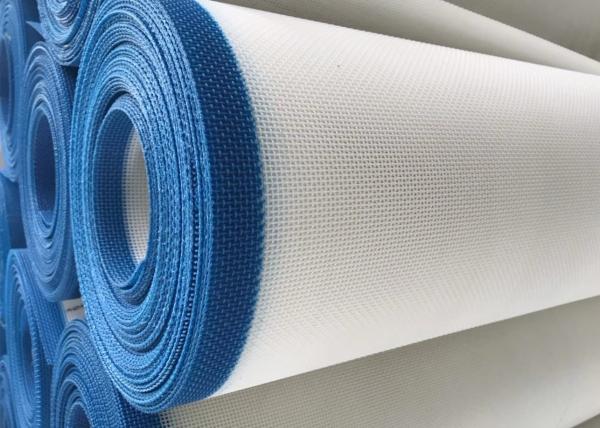

Polyester Mesh For Belt Type Sludge Dewatering Machine In Paper Mill

Polyester filter press is suitable for municipal domestic sludge, sludge press filtering in various industries and enterprises, pulp pressing in paper mills, concentrated juice pressing, smelting plants and mine tailings dry discharge, etc. and other special industries. .
It has the characteristics of being breathable, water-proof and impermeable to materials (sludge), and resistant to strong acid and alkali. The mesh design makes the filter cake easy to peel off and clean. Mainly used with belt filter press, rubber belt vacuum filter, horizontal belt vacuum filter

Features: Since the mesh belt has a herringbone design, the sludge and mesh belt are peeled off quickly, it is not easy to stick to the mud, a large amount of mud is produced, it is easy to clean, and the connection is quick and convenient.
1. The mesh belt of the belt filter press has high tensile strength, strong wrinkle resistance, uniform monofilaments on the mesh surface, and flexibility.

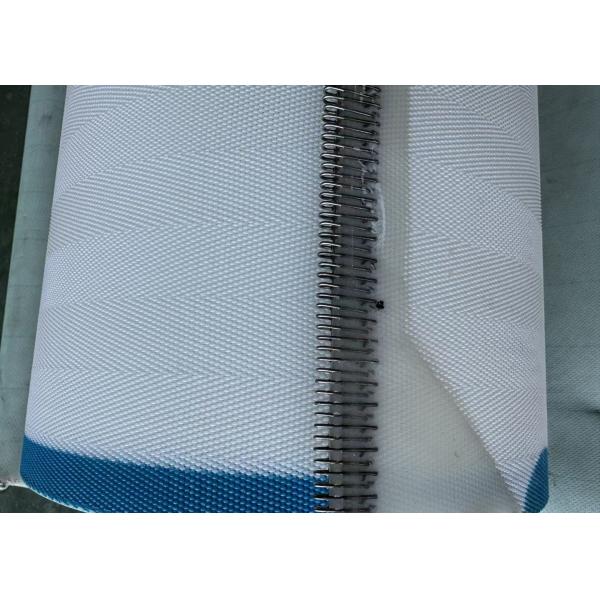

2. The joints of the mesh belt of the belt filter press are well made and made of imported latex, which is light and thin and not easy to fall off. The joint reed is relatively thin, strong and wear-resistant. The thickness of the interface is uniform and thin, making it difficult to damage the scraper.
3. The glue used on both sides of the beer grain processing filter belt is imported latex, which is soft and even and not easy to fall off.
4. The surface of the filter belt is smooth, the mud cake is easy to peel off, and the filter belt is easy to wash.
5. The mesh belt of the belt filter press is not easily deformed in the radial direction, does not arch, and does not wrinkle. It has the characteristics of long service life, acid resistance, alkali resistance, wear resistance, and high temperature resistance (can operate for a long time in an environment of 180°C). Filter belt performance: The filter cake is thick and easy to peel off. Stable in shape, no deformation, no deviation, no pleating, high tensile strength, strong acid and alkali resistance. Can withstand high and low temperatures. Good breathability. The filter belt tension is generally controlled at 0.3-0.7MPa, and the common value is 0.5MPa. The running speed of the filter belt is 1~9m/min. Different specifications and sizes can be customized and produced according to samples.
