Low Pressure Pulp Cleaner Stainless Steel Dump Rejector 1 Year Warranty
Low Pressure Pulp Cleaner Stainless Steel Dump Rejector 1 Year Warranty
Low Pressure Pulp Cleaner Stainless Steel Dump Rejector 1 Year Warranty
Low Pressure Pulp Cleaner Stainless Steel Dump Rejector 1 Year Warranty
Low Pressure Pulp Cleaner Stainless Steel Dump Rejector 1 Year Warranty
Low Pressure Pulp Cleaner Stainless Steel Dump Rejector 1 Year Warranty
Low Pressure Pulp Cleaner Stainless Steel Dump Rejector 1 Year Warranty
Low Pressure Pulp Cleaner Stainless Steel Dump Rejector 1 Year Warranty
Specifications
Brand Name :
YUXING
Model Number :
TYPE280
Certification :
CHINA LIGHT INDUSTRY STANDARD
Place of Origin :
CHINA
MOQ :
1SET
Payment Terms :
T/T, Western Union, MoneyGram
Delivery Time :
30 WORK DAYS
Packaging Details :
STANDARD EXPORT PACKAGE
Material :
STAINLESS STEEL
Pressure :
Low Pressure
Application :
Pulp making
Power :
Depends
Voltage :
380V
Warranty :
1 Year
Description

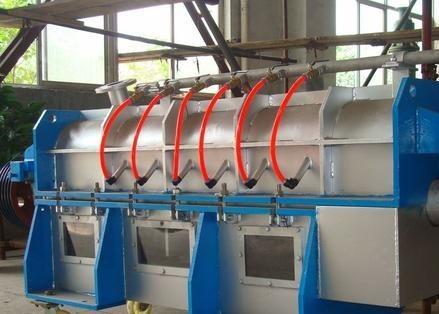

Type280 stainless steel dump rejector for the paper pulp cleaning

I. Introduction

Features: This machine is mainly used for the treatment of tailings in the screening section of the waste paper system. The feed concentration is about 1-3%, the slag discharge concentration can reach 20%, the treatment efficiency is high, the fiber retention rate is high, and the recovery rate can reach more than 80%; only need to operate under normal pressure, and it is a closed operation to avoid the splashing of dirt, save the cost of slag discharge treatment, and fast long-term investment recovery.

II. Main specification

Model ZSZ1 ZSZ2 ZSZ3
Size Φ280 Φ380 Φ500
Pulp consistency (%) 1-3.5
Slag consistency(%) 15-20
Capacity (t/d) 10-20 20-35 40-70
Power (kw) 37 55 55

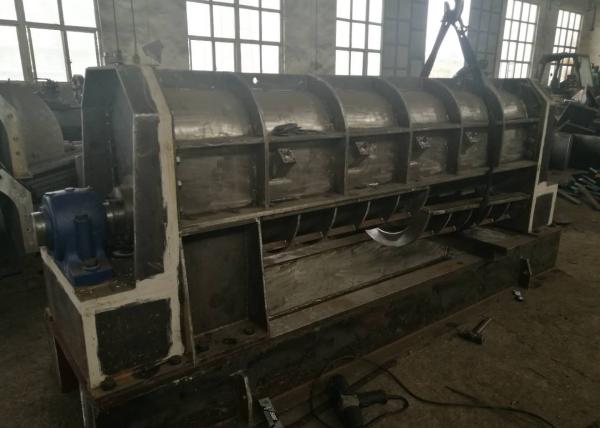

III. Structure introduction

1. The cylinder is welded by steel plate. The part in contact with the slurry is stainless steel. There are eight water spray pipes on both sides of the cylinder.

2. The rotor is a rotating rod with 32 blades fixed on it.

3. The sieve plate is a combination of two semi-circular sieve cylinders with a diameter of Φ2.0-Φ4.5mm. It can be used as required.
