Specifications
Brand Name :
YUXING
Model Number :
CUSTOMIZED
Certification :
CHINA LIGHT INDUSTRY STANDARD
Place of Origin :
CHINA
MOQ :
10PCS
Payment Terms :
T/T, Western Union, MoneyGram
Delivery Time :
7 WORK DAYS
Packaging Details :
STANDARD EXPORT PACKAGE
Product name :
Doctor blades
Material :
Carbon fiber
Length :
As demands
Width :
As demands
Application :
Size press roll
Condition :
New
Packaging material :
Carton box
Description

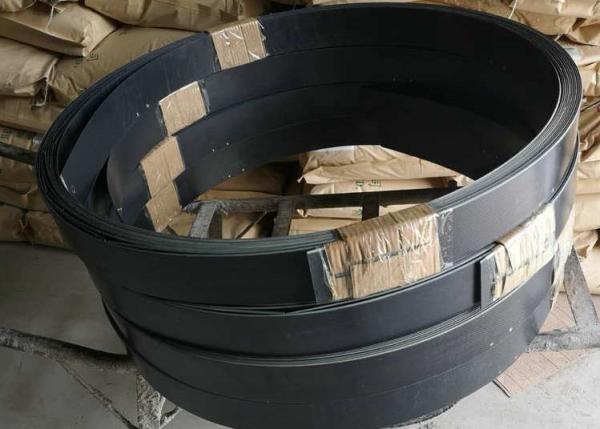

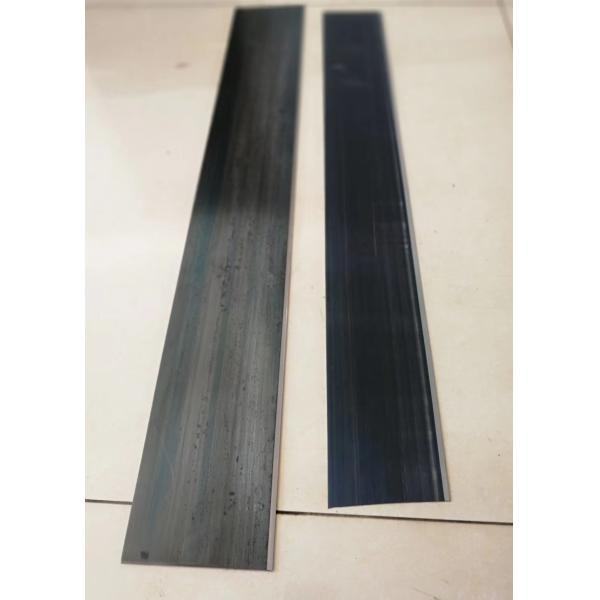

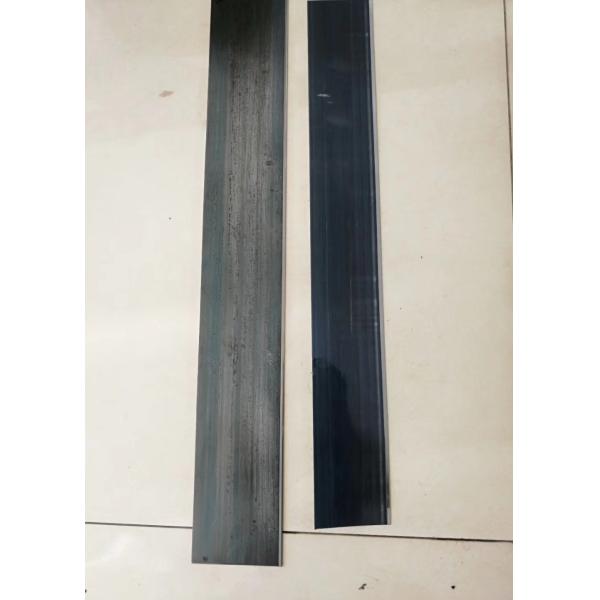

Carbon fiber scraper doctor blades used in the size press rolls of paper machine

Doctor blades is the main part of the paper machine scraper which used for cleaning the rolls’ surface.

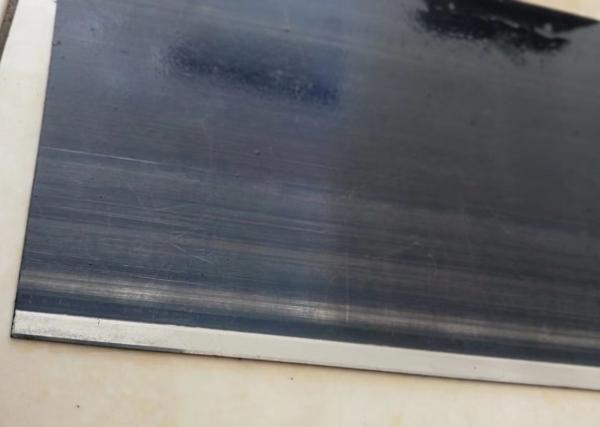

Carbon fiber scraper is made of carbon fiber cloth or carbon fiber cloth plus glass fiber cloth or using carbon fiber cloth with glass fiber cloth plus silicon carbide layer fiber cloth or zirconium steel layer fiber cloth in the inner layer, and it is prepared by bonding with adhesive; Glass fiber cloth preg, cutting, spreading, heating and pressure curing to plate, and then slitting, cutting and grinding at the scraped end, the edge angle is 20-60 degrees; the scraped thickness is 1.5-10mm. The width is 76-270mm; the length can be customized as required.

The other end of the scraper is a connection end, which can be connected to the frame by U-shaped grooves or by copper rivets or by adding butterfly blades or by rivets or milling steps.

It has high temperature resistance, good strength, easy manufacturing, low cost, and easy to use.

Specification of Carbon fiber scraper doctor blades used in the size press rolls of paper machine

No. Specification (length x width x thickness) Material Customized Part
1 X 120 x 3mm Carbon fiber Yes Size press

Scraper device

Components include: clamps, scraper blades, bearings, pressure and pressure relief devices, swinging devices.

Pressing part blade: a pressure roller blade to clean fine fibers and fillers, and a blade on the blanket guide roller to prevent dirt from contaminating the carpet, because the small fibers and fillers tend to transfer from the carpet to the smooth roller surface.

Drying blade: Press on the inlet and outlet of each group of dryers to remove paper breaks and dirt on the cylinder surface
