Specifications
Brand Name :
YUXING
Model Number :
1M2/2M2/3M2
Certification :
CHINA LIGHT INDUSTRY STANDARD
Place of Origin :
CHINA
MOQ :
1set
Payment Terms :
T/T, Western Union, MoneyGram
Delivery Time :
15 work days
Packaging Details :
standard export package
Material :
stainless steel
screen plate hole size :
2-5mm
Application :
Pulp making
Condition :
New
Dimension(l*w*h) :
Depends
Warranty :
1 Year
Description

1. High frequency vibrating screen for the waste paper pulp cleaning

Self-cleaning vibrating frame flat screen is a device used by pulp and paper mills to screen pulp and improve pulp quality. This equipment is suitable for the screening of various pulps such as wood pulp, straw pulp, waste paper pulp, etc., and can continuously screen various impurities in pulp suspension, such as plastic, rubber, vinyl chloride, hot melt and coarse residue , Residual knots, etc.

This machine has a simple structure, strong slag discharge capacity and low noise. The flat bottom screen is easy to manufacture and convenient to operate and maintain.

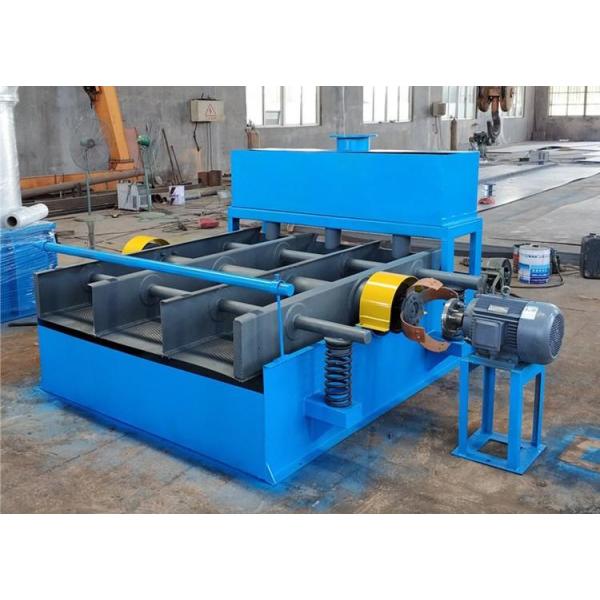

This product consists of screen body, vibration exciter, shock absorber, slurry tank, slurry tank, water spray device and elastic coupling.

Specification of the High frequency vibrating screen for the waste paper pulp cleaning

Model PVS-1 PVS--2 PVS-3 PVS-4
Capacity (T/D) 8－16 20－40 40－80 60－120
Screen area (m2) 0.6 1 2 3
Screen plate dimension mm 500×1300 580×2100 1080×2100 1580×2100
Water spray (L/min) 15～30 20～40 30～60 50～100
Vibration frequency (times/min) 710 710 710 710
Amplitude (full amplitude) mm 10~12 10~13 10~15 10~15
pulp inlet mm 70×240 150×300 150×300 150×300
Motor model Y132S-8 Y132M-8 Y160M-8 Y160S-8
Power (KW) 2.2 3 4 5.5
Rotary speed r/min 710 710 710 710
Weight(without motor)kg 807 1000 1200 1500
Overall size (L X W X H)mm 2169×2030×1160 2780×2100×1300 2780×2560×1400 2780×3100×1400
