Specifications
Brand Name :
YUXING
Model Number :
CUSTOMIZED
Certification :
CHINA LIGHT INDUSTRY STANDARD
Place of Origin :
CHINA
MOQ :
10PCS
Payment Terms :
T/T, Western Union, MoneyGram
Delivery Time :
3 WORK DAYS
Packaging Details :
STANDARD EXPORT PACKAGE
Material :
EP
Size :
As demand
Product name :
Doctor Blade
Application :
Paper machine roller cleaning
Description

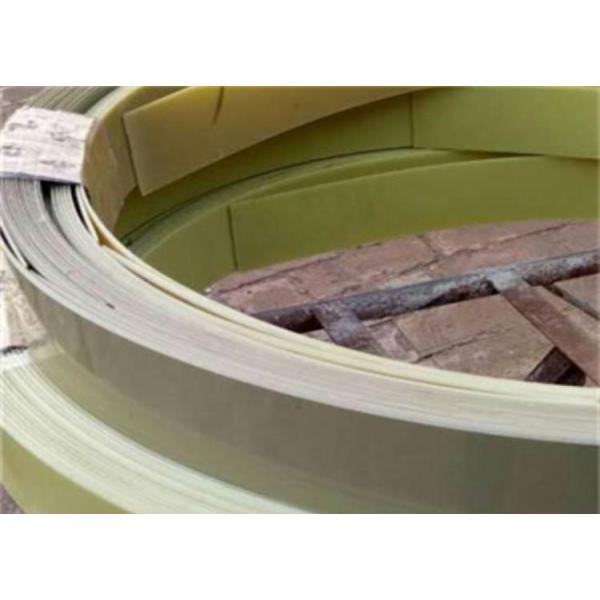

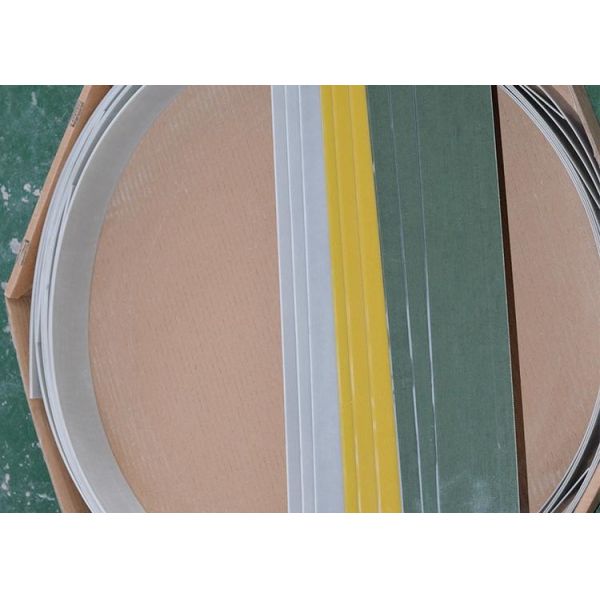

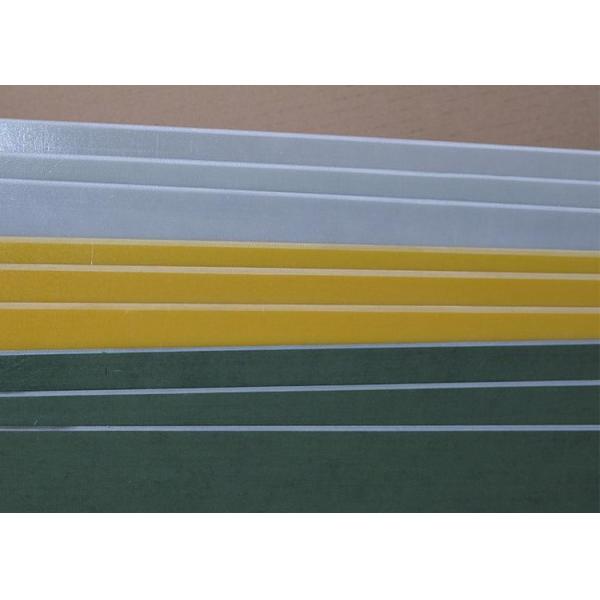

5. Paper machine winding cylinder doctor blades made by (EP)Epoxy resin material

Doctor blades is the main part of the paper machine scraper which used for cleaning the rolls’ surface.

EP blades are widely used on paper machines, with blades ranging from the wire section to the winding part.

The role of the scraper: mainly used to clean the guide roller. Remove dust, paper scraps, and other debris from the rollers. High-density EP scraper; once molded as a whole, high strength, uniformity, fine texture, abrasion resistance (very small friction coefficient), good self-lubricity, heat resistance, especially used in dryers, calender rollers, and screens of paper machines It is unique on rollers, press rollers, and paper guide rollers. It has the strength of steel and copper materials, does not scratch the surface of the cylinder roller, and protects the cylinder roller. The service life of the paper industry

Specification of Paper machine winding cylinder doctor blades made by (EP)Epoxy resin material

No. Specification (length x width x thickness) Material Customized Part
1 X 120 x 3mm Epoxy resin Yes Winding cylinder

Scraper device

Components include: clamps, scraper blades, bearings, pressure and pressure relief devices, swinging devices.

Pressing part blade: a pressure roller blade to clean fine fibers and fillers, and a blade on the blanket guide roller to prevent dirt from contaminating the carpet, because the small fibers and fillers tend to transfer from the carpet to the smooth roller surface.

Drying blade: Press on the inlet and outlet of each group of dryers to remove paper breaks and dirt on the cylinder surface


Long Service Life Paper Cutting Machine Blade Epoxy Resin Material EP BladesLong Service Life Paper Cutting Machine Blade Epoxy Resin Material EP BladesLong Service Life Paper Cutting Machine Blade Epoxy Resin Material EP BladesLong Service Life Paper Cutting Machine Blade Epoxy Resin Material EP Blades
