Specifications
Brand Name :
YUXING
Model Number :
CUSTOMIZED
Certification :
CHINA LIGHT INDUSTRY STANDARD
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
T/T, Western Union, MoneyGram
Delivery Time :
7-10 WORK DAYS
Packaging Details :
STANDARAD EXPORT PACKAGE
Product name :
Dryer screen
Mateiral :
Polyester
Type :
Plain weaving
Size :
Depends
Weight :
Depends
Application :
Paper drying
Description

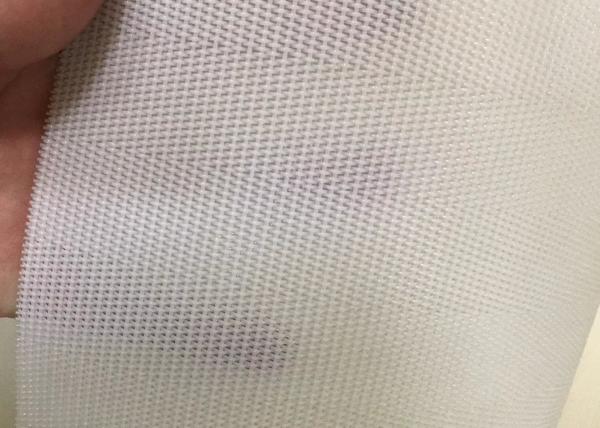

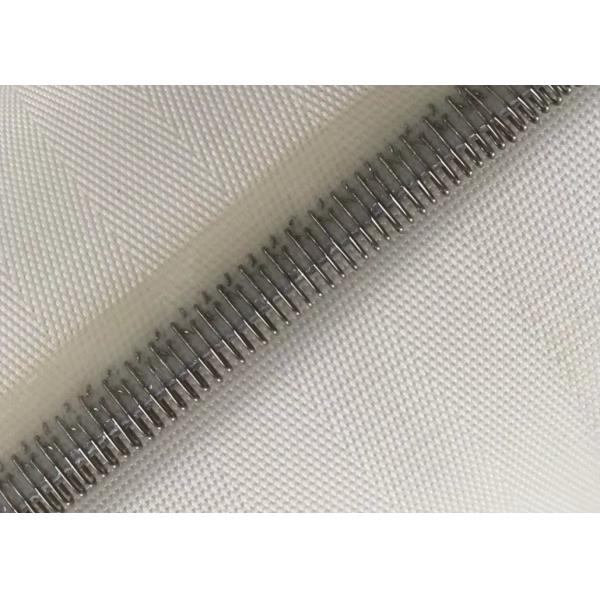

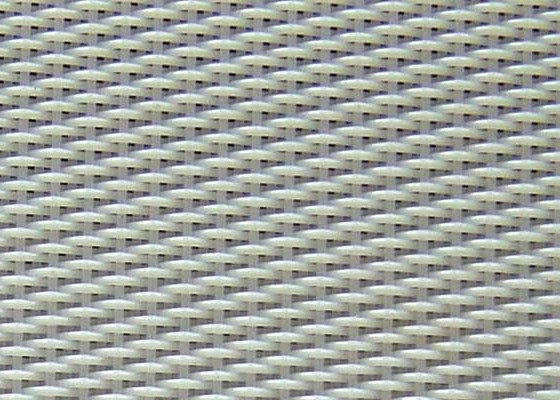

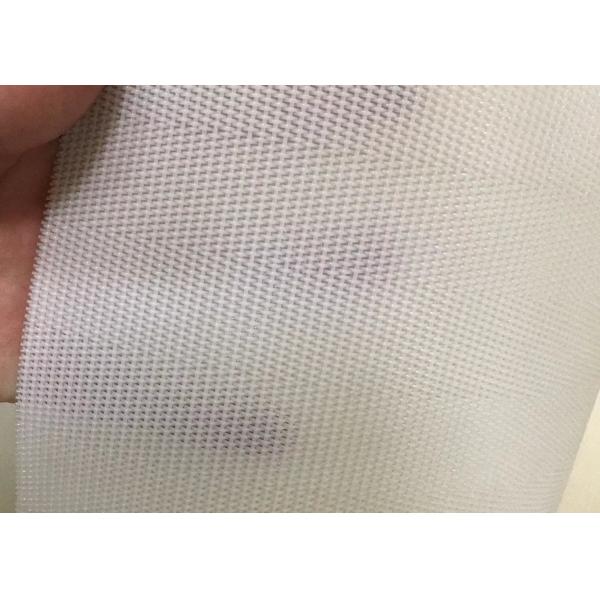

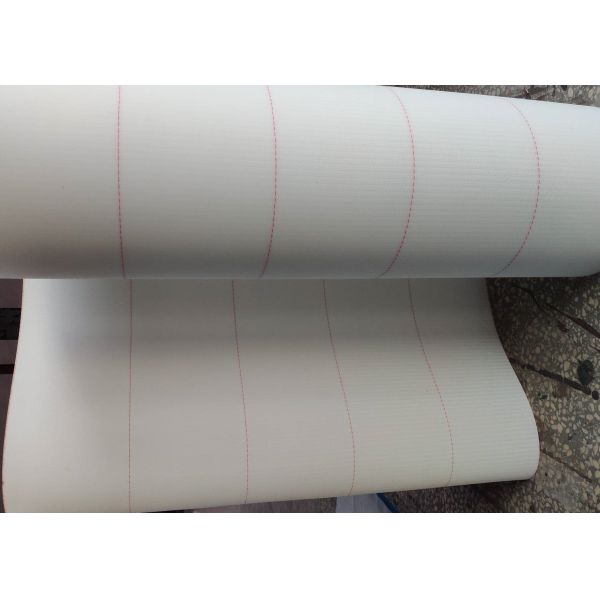

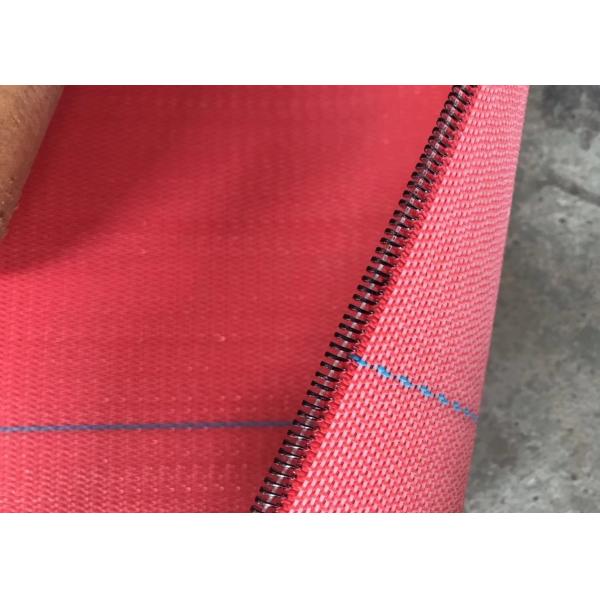

Polyester plain weaving flat wire dryer felt for paper making

Dry net is an important part of the dryer of the paper machine. Its function is to filter water and level the paper.

Polyester mesh is one of the main drying and filtering materials in the world, so it is widely used in the field of paper making, and it is an indispensable and expensive dewatering equipment in the paper making industry.

The manufacturing process of polyester mesh is generally: shaping, weaving, primary setting, plug-in, secondary setting

Polyester mesh has the characteristics of high strength, small deformation, good corrosion resistance, abrasion resistance, and long life.

Features: It has acid resistance, alkali resistance, wear resistance, high temperature resistance, long service life, flat mesh surface, high tensile strength, and good breathability. High heat transfer efficiency can save energy for users. Easy to install and use, no marks on the interface, strength can reach normal network

Polyester flat yarn

Product characteristics: Polyester flat wire dry mesh uses rectangular polyester monofilament as the warp thread. The wire has a small arc and a long node. long. It is suitable for single hanging and drying cylinders in the drying section of various medium and high speed paper machines.

Technical Parameters:

Variety Model Wire size density(pcs/cm ) Air permeability(m³/m²h )
warp weft Warp weft
Flat yarn 1.5layer YGW4106 0.33×0.52 0.50 21-22 11-12 8000
YGW4106-1 0.37×0.58 0.35,0.60 20-21 13-14 6000
2 layer YGW2040 0.31×0.815 0.40,0.70 20.5-21.5 12-13 5000
YGW2035 0.31×0.815 0.40,0.70 20.5-21.5 14-15 4000
