300m/Min Paper Processing Machine For Kraft / Craft Paper Rewinding
300m/Min Paper Processing Machine For Kraft / Craft Paper Rewinding
300m/Min Paper Processing Machine For Kraft / Craft Paper Rewinding
300m/Min Paper Processing Machine For Kraft / Craft Paper Rewinding
300m/Min Paper Processing Machine For Kraft / Craft Paper Rewinding
300m/Min Paper Processing Machine For Kraft / Craft Paper Rewinding
300m/Min Paper Processing Machine For Kraft / Craft Paper Rewinding
300m/Min Paper Processing Machine For Kraft / Craft Paper Rewinding
Specifications
Brand Name :
YUXING
Model Number :
2640MM
Certification :
CHINA LIGHT INDUSTRY STANDARD
Place of Origin :
CHINA
MOQ :
1SET
Payment Terms :
T/T, Western Union, MoneyGram
Delivery Time :
30 WORK DAYS
Packaging Details :
STANDARD EXPORT PACKAGE
Product name :
Paper rewinding machine
Machine type :
2640mm
Application :
Kraft /fluting paper/writing paper
Gsm :
90-300g/m2
Speed :
600m/min
Condition :
New
Description

2100mm Kraft / craft paper rewinding machine

The paper rolls (called base paper rolls) produced by the paper machine are sequentially rerolled. After the paper is rerolled, it is made into finished paper.

The paper roll rolled by the paper roll machine is relatively soft, there may be broken or broken ends, the edges on both sides are not smooth, and the width of the paper web is not used in paper processing or printing machines. Most paper types (such as newsprint , Letterpress printing paper, wrapping paper, etc.) must pass through the rewinding machine to trim, slit, joint, and rewind on the paper roll core to form a finished paper roll of a certain specification and certain tightness requirements before leaving the factory

Specification of 2100mm Kraft / craft paper rewinding machine

1 Paper variety Kraft paper/craft paper
2 Paper grammage 90-180g/m2
1 Net paper width 2100mm
2 Base jumbo roll diameter Ø2000mm
3 Finished paper roll diameter Ø1500mm
4 Working speed 300m/min
5 Support roll diameter Ø450mm
6 Brake type Pneumatic type
7 Bottom blade s Whole round bottom blades
8 Up slitting blades 5pcs

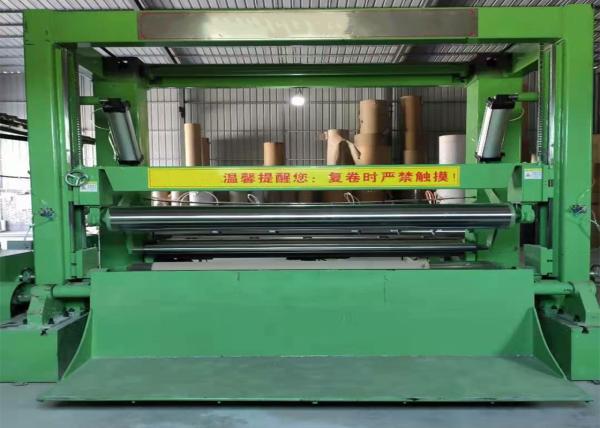

The frame type rewinding machine is a further optimization of the traditional ordinary rewinding machine. We adopt a more reasonable design and better raw materials to ensure the smooth operation of the machine during the work process.


300m/Min Paper Processing Machine For Kraft / Craft Paper Rewinding

300m/Min Paper Processing Machine For Kraft / Craft Paper Rewinding300m/Min Paper Processing Machine For Kraft / Craft Paper Rewinding300m/Min Paper Processing Machine For Kraft / Craft Paper Rewinding
