Specifications
Brand Name :
Fujian Xinyun Machinery Development Co.,Ltd
Model Number :
XY-AI-500
Certification :
CE
Place of Origin :
China
MOQ :
1/set
Price :
USD 23,000/set
Supply Ability :
150/set/year
Delivery Time :
60 work days
Packaging Details :
Spraying antirust oil on machine surface and cover PE film,then packed by seaworthy Export Packing Wooden Pallet, ensure that the goods will safely arrive at the erection or construction site without any damage.
Cutting speed :
15-30cuts/minute
Cutting channel :
single channel
Cutting blade :
band saw blade(18,000--20,000 rolls/blade)
Log length :
≦2200mm or ≦2850mm
Cutting length :
≦300mm
Cutting diameter :
150-300mm(Adjustable)
Power supply :
15KW 3 phase 4line 380V 50HZ
Overall size of machine :
4600*2350*2200mm（2.2m jumbo roll） 5300*2350*2200mm (2.2-2.85m jumbo roll)
Description

Auto Jumbo Roll Log Saw Cutting Machine,maxi roll log saw cutting machine,toilet paper cutting machine

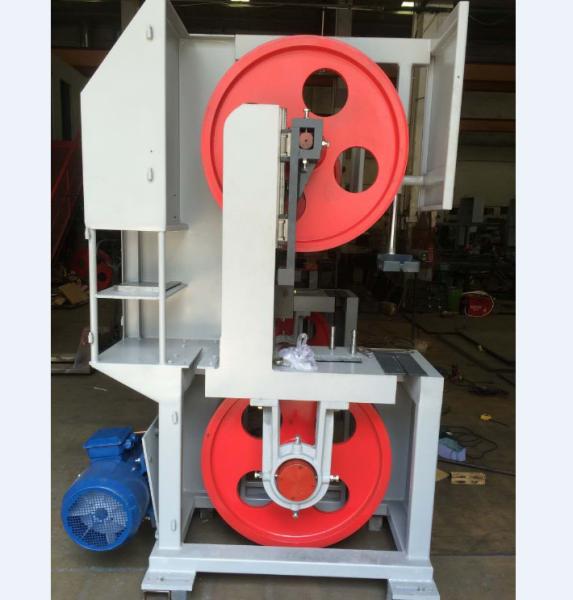

XY-AI-500 Automaitc maxi roll band saw cutting machine

Description of the equipment:

The equipment is the latest research and development which is the extension of the company with the current market situation. Using PLC program control, big screen true color human﹣computer interface. The precise servo control feed length, electromechanical integration control and other international advanced technology con automatically detect each key action, has good fault information prompt system, make the whole production line achieving the best working state.

Features:

1. The main motor using the inverter independent drive.

2. For one set of machine, the cutting diameter of paper roll is adjustable as 150~250mm.

3. The equipment adopts automatic sharpening system, grinding wheel can be automatic feeding adjustment according to the blade loss.

4. The grinding system is equipped with an independent dust removal device to ensure the working environment.

5. The band saw adopts hydraulic tension system to ensure the tension of band saw.

6. It will be automatic stop and alarm when the knife is broken.

7. High precision servo system is used to ensure the quality of finished products.

8. According to the raw materials and the length of finished products, the number of finished products can be calculated automatically.

9. The device stops working and prompts the interface when the input data is wrong.

10. Using band saw for cutting and reduces the cost of use of users.

11. The thickness of finished paper core should less 3mm(Suggestion)

15KW PLC Control Jumbo Roll Log Saw Cutting Machine For Toilet Paper

Video link : https://youtu.be/3xkBshHqDpY
