Specifications
Brand Name :
Xinyun
Model Number :
XY-TQ-B
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD 23000-80000
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
100 SETS PER YEAR
Delivery Time :
70-80 days
Packaging Details :
Start Business 1350mm Toilet Tissue Paper Making Machine Manufacturer will be packed by wooden pallet. Spraying antirust oil on machine surface and cover PE film,then packed by seaworthy Export Packing Wooden pallet, ensure that the goods will
Width of jumbo roll :
1350-2800mm(need to be specified)
Unwind stands :
1-3 stands(need to be specified)
Finished product diameter :
90-280 mm
Production speed :
200-230 m/min
Automatic grade :
Automatic
Usage :
making toilet paper
Processing type :
Paper embossing and Rewinding Machine
Weight :
6-15 T(depends on model)
Condition :
New
Description

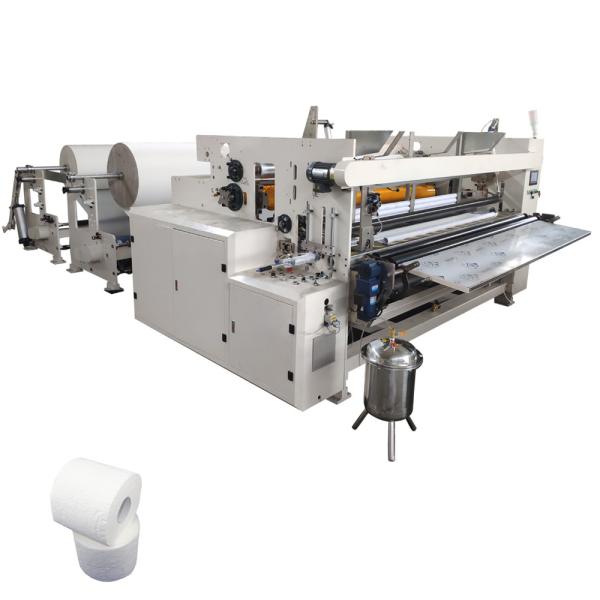

Start Business 1350mm Toilet Tissue Paper Making Machine Manufacturer XY-TQ-B

Product Application:

1. This equipment is to perforate and cut the raw paper into various sizes according to the requested.

2. The finished product is neat, in good order and with equality tension.
3. It has the feature of compact structure, easy and stable operation, less electricity consumption and covers a small area of 8.4m². The highest production speed is 180-230m/min.
4. This equipment is adjustable to meet the requested finished product. This model is the ideal equipment for paper making factory and paper processing factory.

5. This equipment can process raw paper of 1.2-2.8m in width. There are two types of this model:
A) is ordinary type, it used one embossed unit for 2 ply paper,
B) other is dot-by-dot type, it used embossed units respectally for each one.
6. This machine is consist of stand of raw material, paper conveying unit, embossing unit, perforating unit, rolling unit,electricity control and cutting system.
Start Business 1350mm Toilet Tissue Paper Making Machine

Start Business 1350mm Toilet Tissue Paper Making Machine

The production process is : unreeling -→ embossing -→perforating-→furl-→slitting.
Functions and Features --- Wall Type Automatic Rewinding Machine
1. PLC (computer) control production, degree of full-automatic of production process is high, the function of machine is complete, and production efficiency is high.
2. Load and change the core, spray glue, seal can be done without stop the machine. When changing the core, the machine will low the speed and up the speed automatically.
3. When change the core to rewind, it will be tight first and then loose, to avoid the core loose.
4. Equipped with automatic alarm to indicate filling up of core pipe. The machine will be automatically stopped when there is no core pipes.
5. When raw material broken, the machine will stop automatically.
6. Each raw material unreel separately , equip with tension control.
7. Easy to adjust in order to suitable different paper core.
8. There is tail after the finished product sealed with
9. There is pneumatic jack to load the raw material on machine
As required, the machine can equip with single color or double colors printing device, the pattern is vivid.
The machine can equip with two sets of embossing device according to requirements.

Video Link: https://youtu.be/GK44fR9n5tI
https://youtu.be/GK44fR9n5tI
Product Specifications
Model XY-TQ-B High speed 200-230m/minute small toilet paper embossing perforating making machine
Jumbo Roll Max Width 1350-2800mm (Need to be specified)
Jumbo Roll Diameter Φ1200mm(Other size can be specified)
Jumbo Roll Inner Diameter 3inches(76.2mm) (Other size can be specified)
Perforation Distance 4 anvil Blades(115mm)(Other size can be specified)
Finished Product Diameter Φ80~φ280mm
Finished Product Core Diameter φ38~φ76mm
Production Speed 200~230m/min
Program Controller PLC(DELTA OR INVT need to confirm)
Unwind Stands 1 or 3 Stands(Need to be specified)
Pneumatic System 3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user)
Main Power 14-45 KW 380V 50HZ( depend on model)
Dimension 7000*4000*1900(L*W*H) ( depend on model)
Weight About 6-17T ( depend on model)
Embossing unit Steel to rubber embossing roller

Start Business 1350mm Toilet Tissue Paper Making Machine

Start Business 1350mm Toilet Tissue Paper Making Machine

Start Business 1350mm Toilet Tissue Paper Making Machine
