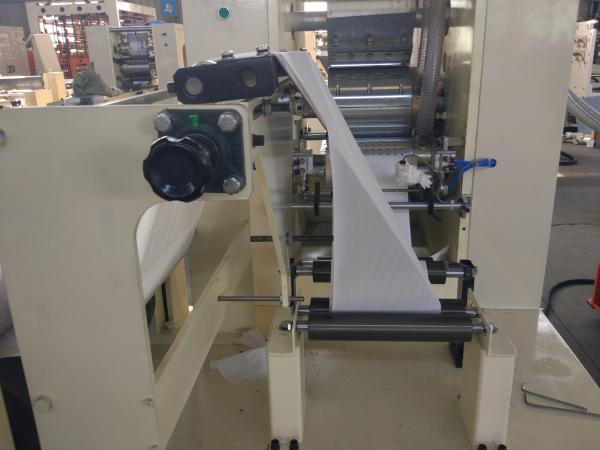

XY-OQ-7000B Full Automatic Adsorption L-folding Napkin Paper Machine

Features:

1. Embossing design on raw paper with clear embossing shape.

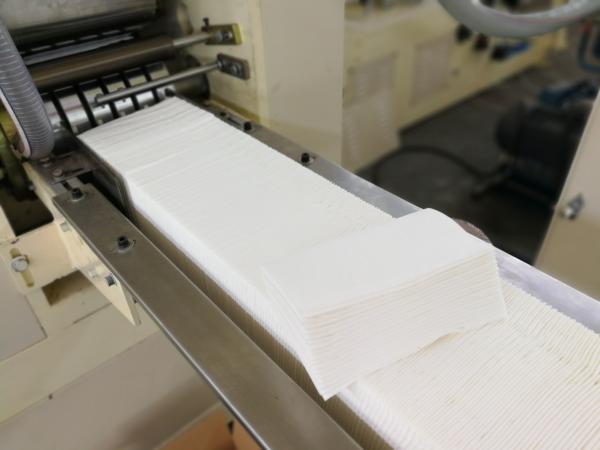

2.Count automatically and orderly placed, convenient to pack.

3. Controlled with rolling tension to fit production with different tension of raw paper.

4. Adopt double screw turning knife to cut fast and easy adjustment.

5. Adopt vacuum folding type.

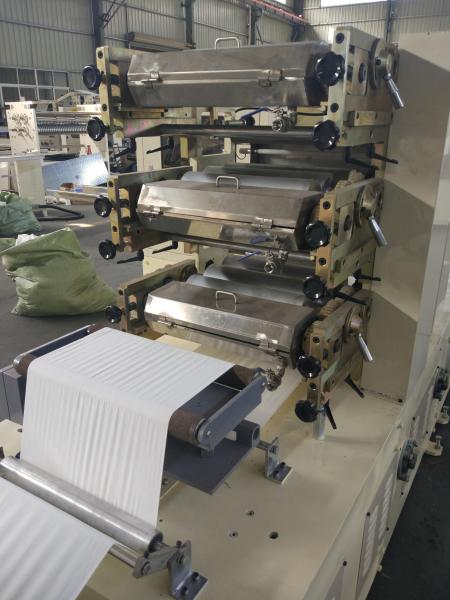

6. As requested, this machine can be equipped with single color or double colors printing device.

The quality of machine

1. All transmission parts are processed by special steel, they are resist pressure and toughness.

2. Adopt China name brand Zhengtai electricity

3. Adopt China name brand Haerbin bearing.

After-sale services

1. The machine will guaranteed for one year. We will replace the damaged spare parts (except easy damageable parts) within one year. After one year, we will trace the technology and quality for long time.

2. We will equipment the easy damageable parts with the machine.

The accounting of cost

1 ton 20g paper (paper unfolding size: 30.6cmx18cm) can produce 550g 1818units (500 sheet per unit). 60 units per hour. 480 units 8 hours for one day.

The cost for 1 box: Per ton is basic on 1000 USD, 550g =0.55USD.

Electricity cost, workers’ wage and other expenses:0. 00625 USD.

Total cost per unit: 0.55625 USD.

Specification of raw material

1. The width of raw material: 180mm

2. The diameter of raw material: 700mm-1000mm

3. The thickness of raw material : 20g/m^2-25g/ m²

4. The diameter of core: 67 mm

Packing:In wooden cases

Most of the electrical and electronic components are equipped as per export standard.

Guarantee period:One year for mechanical parts, after-sales service is lifelong , and we offer the spare parts at preferential price long.

Technical support:We can send one technician to the customer’s factory to install the machine and train their workers, and the expense for round-trip air-ticket, meal, accommodation and 50 dollar per day for the technician should be born by the customer.

Payment term:30% down payment should be paid by T/T, the 70% balance should be paid by T/T or confirmed irrevocable L/C by draft at sight.

Material:The customer can get the material from their local market(serviette jumbo roll)

Lead time:Within 60 days inform the customer to inspect the machine at seller’s site after receiving the down payment and the confirmation of machine drawing.

Video link : https://youtu.be/nv5_Nivnv2I

https://youtu.be/zyFjr8FI24I

WORKSHOP

PACKING AND DELIVERY
