SPP Film Easy Debugging Wrapper Packing Machine , Paper Roll Wrapping Machine
SPP Film Easy Debugging Wrapper Packing Machine , Paper Roll Wrapping Machine
SPP Film Easy Debugging Wrapper Packing Machine , Paper Roll Wrapping Machine
SPP Film Easy Debugging Wrapper Packing Machine , Paper Roll Wrapping Machine
SPP Film Easy Debugging Wrapper Packing Machine , Paper Roll Wrapping Machine
SPP Film Easy Debugging Wrapper Packing Machine , Paper Roll Wrapping Machine
SPP Film Easy Debugging Wrapper Packing Machine , Paper Roll Wrapping Machine
SPP Film Easy Debugging Wrapper Packing Machine , Paper Roll Wrapping Machine
SPP Film Easy Debugging Wrapper Packing Machine , Paper Roll Wrapping Machine
SPP Film Easy Debugging Wrapper Packing Machine , Paper Roll Wrapping Machine
SPP Film Easy Debugging Wrapper Packing Machine , Paper Roll Wrapping Machine
SPP Film Easy Debugging Wrapper Packing Machine , Paper Roll Wrapping Machine
Specifications
Brand Name :
Xinyun
Model Number :
XY-503IZ
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD 41000-50000 set/sets
Payment Terms :
L/C, T/T, Western Union, MoneyGram,cash
Supply Ability :
200 set/sets per year
Delivery Time :
60days
Packaging Details :
Spraying antirust oil on machine surface and cover PE film,then packed by seaworthy Export Packing Wooden Pallet, ensure that the goods will safely arrive at the erection or construction site without any damage.
model :
XY5031Z
packing speed :
100-200 pack/min
max width pf film :
430mm
toilet roll dimension length :
80-220mm
toilet roll dimension diameter :
80-130mm
total power :
15.5KW 380V 50HZ 3Phases
weight :
1800KG
machine size :
5500*3300*1600mm
material of film :
BOPP, SPP, CPP(As usual, use CPP)
thickness of film :
0.018-0.03
Description

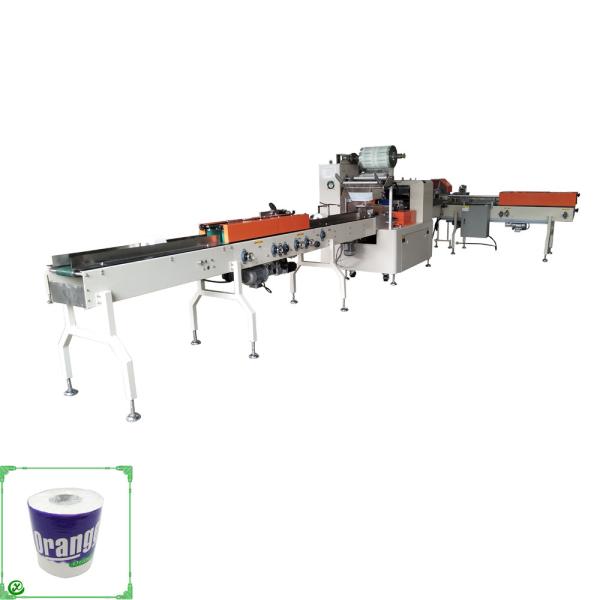

Full automatic single roll toilet roll paper wrapping machine

1. Multi function: Servo controlling, automatic conveying, automatic feeding, automatic sealing, automatic countering.

2. Adopting the advanced PLC computer programming control and employing the liquid crystal text to display parameters, it is with simple set. Moreover, its temperature controlling is more precise so that heating wires and tapes with thermo stability can be protected more efficient.

3. Packing and sealing are pretty and tidy. The machine operated with full-automation. The machine with conveyer can be connected with other machines to form a whole packing line. This allows machine have high capacity and therefore to save the labor and reduce production cost.

product description
model XY5031Z
packing speed 100-200 pack/min
max width pf film 430mm
toilet roll dimension length 80-220mm
toilet roll dimension diameter 80-130mm
total power 15.5KW 380V 50HZ 3Phases
weight 1800KG
machine size 5500*3300*1600mm
material of film BOPP, SPP, CPP(As usual, use CPP)
thickness of film 0.018-0.03
SPP Film Easy Debugging Wrapper Packing Machine , Paper Roll Wrapping Machine
Appearance
SPP Film Easy Debugging Wrapper Packing Machine , Paper Roll Wrapping Machine
Wrapping
SPP Film Easy Debugging Wrapper Packing Machine , Paper Roll Wrapping Machine
Production
