Toilet Paper Packing Machine
Toilet Paper Packing Machine
Toilet Paper Packing Machine
Toilet Paper Packing Machine
Toilet Paper Packing Machine
Toilet Paper Packing Machine
Specifications
Brand Name :
xinyun
Model Number :
XY-AI-398A
Certification :
CE
Place of Origin :
fujian
MOQ :
1 set
Price :
FOB XIamen Price10000-15000USD
Payment Terms :
T/T
Supply Ability :
200sets/year
Delivery Time :
50-60days
Packaging Details :
Spraying antirust oil on machine surface and cover PE film,then packed by seaworthy Export Packing Wooden pallet, ensure that the goods will safely arrive at the erection or construction site without any damage.
Speed :
5~8 Bags/Minute
Power Supply :
3kw 380V 50Hz 3phases
Air Pressure :
0.4-0.5MPa
Overall Dimension :
8700*1000*1300mm
Machine Weight :
600-2000kg
Description

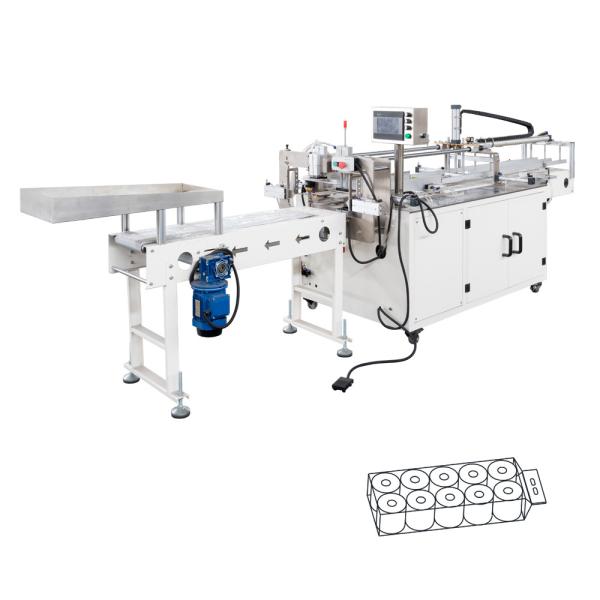

XY-AI-398A Semi Automatic Small Toilet Paper One Layer Multi Rolls Packing Machine

Outline

This machine is specially used for packaging toilet paper roll, with a conveyor belt. The machine to adapt to the toilet paper roll diameter is less than or equal to 90-120mm, 8-12 rolls of toilet paper. The machine is simple, flexible, sealed bag is the one machine. It's easy to operate: Insert the pre-made bag into output hole, press the jog switch, it will automatically put toilet rolls into bag, meanwhile cutting and sealing.

Product Parameters
Speed 5-8bags/min
Power 3KW 380V 50HZ 3phases
Sealing Transformer Power 0.45KW
Air Pressure 0.4-0.5MPA
Overall Dimension 8700*1000*1300 mm
Weight 600-2000KG
Video Link: https://youtu.be/kNxiLQJF06s
Toilet Paper Packing Machine
Feature and Functions
1. Multi function: automatic conveying, single head operation, automatic feeding, automatic sealing, automatic countering.
2. Adopting the advanced PLC computer programming control and employing the liquid crystal text to display parameters, it is with simple set and water cooling control. Moreover, its temperature controlling is more precise so that heating wires and tapes with more stability can be protected more efficient. The machine use the servo motor to push the products to the bags, it causes to locating the products more accurately.
3. Packing and sealing are pretty and tidy. The machine can be operated with full-automation and semi-automation. The machine with conveyor can be connected with automatic toilet roll packing machine with conveyor. This allows the machine have high capacity and therefore to save the labor and reduce production cost.
4. Capacity: 8-12 bundling bag/min, 1 labor only to pack.
5. Suitable for core or coreless toilet roll. The machine cannot proofread color code automatically.
6. Comprehensive design, rigid frame, and imported major component, this allows our machine work steadily& efficiently, and therefore this makes our machine have long life.

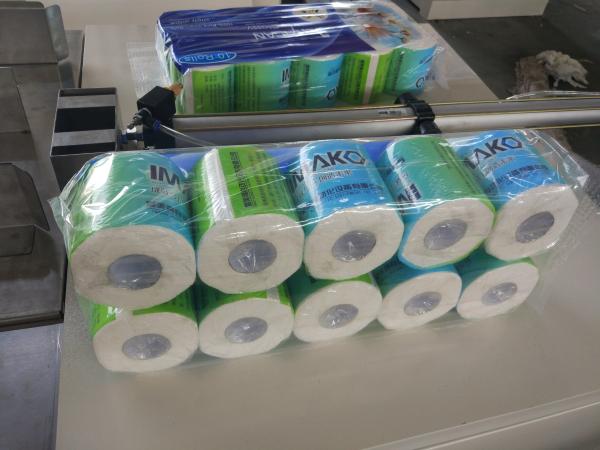

Finished Products
Toilet Paper Packing Machine

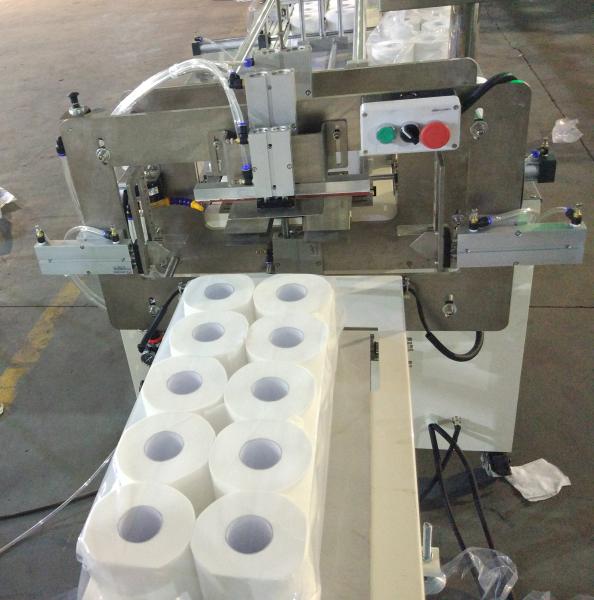

Workshop
Toilet Paper Packing Machine

After Sales Service:

Why choose machines from Fujian Xinyun Machinery Development Co.,Ltd?
1.Good quality of machine with reasonable price.
2.Good service:Any question from customer will by replied within 24 hours.
For all the machines we sell, we will offer one-year guaranteen for free and all life-long maintenance.
We deliver a USB dish of Operation Video with machine, it will help customers to work the machine easily.
After the machines arrive, the sellers shall send technicians to install the production line(if need).
And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportation and accommodation in buyer's city.

Company Profile:

Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4)Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
