Auto Tissue Paper Packaging Machine, 2 Heads Bundle Strapping
Auto Tissue Paper Packaging Machine, 2 Heads Bundle Strapping
Auto Tissue Paper Packaging Machine, 2 Heads Bundle Strapping
Auto Tissue Paper Packaging Machine, 2 Heads Bundle Strapping
Auto Tissue Paper Packaging Machine, 2 Heads Bundle Strapping
Auto Tissue Paper Packaging Machine, 2 Heads Bundle Strapping
Auto Tissue Paper Packaging Machine, 2 Heads Bundle Strapping
Auto Tissue Paper Packaging Machine, 2 Heads Bundle Strapping
Auto Tissue Paper Packaging Machine, 2 Heads Bundle Strapping
Auto Tissue Paper Packaging Machine, 2 Heads Bundle Strapping
Auto Tissue Paper Packaging Machine, 2 Heads Bundle Strapping
Auto Tissue Paper Packaging Machine, 2 Heads Bundle Strapping
Specifications
Brand Name :
Fujian Xinyun Machinery Development Co.,Ltd
Model Number :
XY-GU-26B
Certification :
CE
Place of Origin :
China
MOQ :
1/set
Price :
USD 11,000/set
Payment Terms :
T/T
Supply Ability :
150/set/year
Delivery Time :
60 work days
Packaging Details :
Spraying antirust oil on machine surface and cover PE film,then packed by seaworthy Export Packing Wooden Pallet, ensure that the goods will safely arrive at the erection or construction site without any damage.
Pacjing Speed :
12-16 bundling bag/min
Packing facial tissue/napkin quantity*1 :
3,4,5 pcs/bundling bag (1 lane)
Air supply :
0.6 MPA(Supplied by user)
Power supply :
1.2Kw 220 V，50 HZ
Single facial/napkin size :
(L(130-200)*W(80-95)*H(70-90)mm
Bundling size :
1 lane：L（200-400）*W（130-200）*H(80-95) mm 2 lane：L（200-400）*W（230-320）*H(80-95) mm
Machine size :
L5300*W1800*H1350 mm
Packing facial tissue/napkin quantity*2 :
6,8,10 pcs/bundling bag(2 lane)
Description

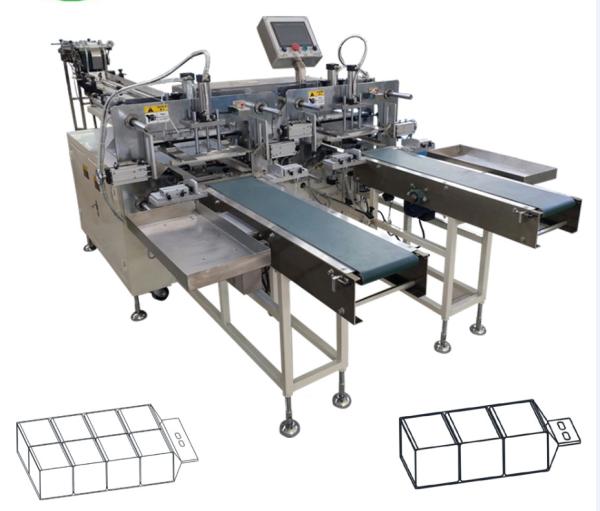

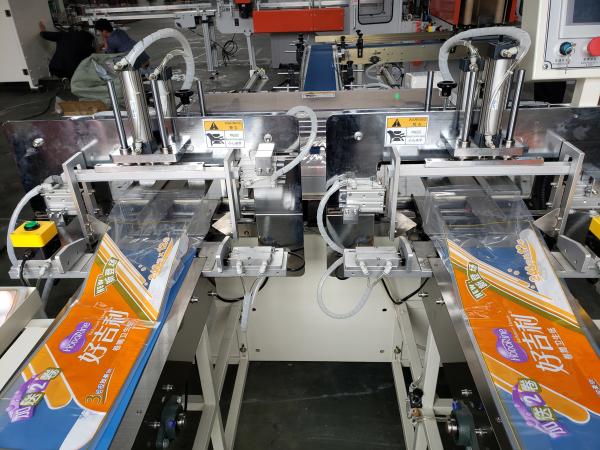

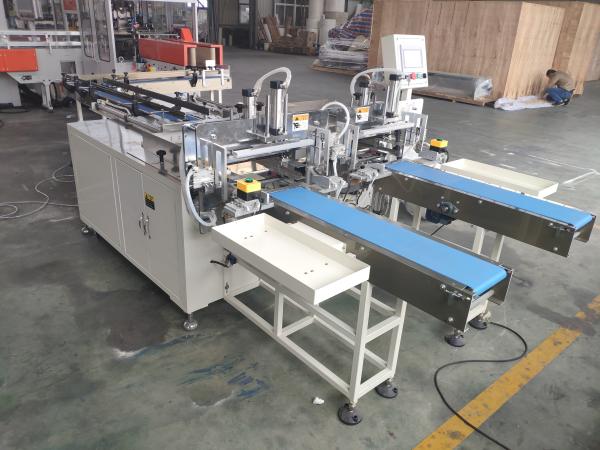

XY-GU-26B Semi automatic two heads facial tissue bundle packing machine

This machine is used for soft-drawing multi-piece middle bag packing, convey automatically by conveyer belt. This machine ssemble paper-feeding, bagging, sealing and cuting in one body. Adopt PLC, liquid crystal text display parameter, easy to set, temperature controll accuracy. Package sealing is good trimming. It is a semi-automatic machine that only need the worker to bagging.

Model XY-GU-26B
Packing facial tissue/napkin quantity

3,4,5 pcs/bundling bag (1 lane)

6,8,10 pcs/bundling bag(2 lane)
Speed 12-16 bundling bag/min
Power supply 1.2Kw 220 V,50 HZ
Air supply 0.6 MPA(Supplied by user)
Single facial/napkin size (L(130-200)*W(80-95)*H(70-90)mm
Bundling size

1 lane:L(200-400)*W(130-200)*H(80-95) mm

2 lane:L(200-400)*W(230-320)*H(80-95) mm
Machine size L5300*W1800*H1350 mm

Auto Tissue Paper Packaging Machine, 2 Heads Bundle Strapping

VIDEO LINK : https://youtu.be/iK_LTbd3d9M

Previous process production equipment:

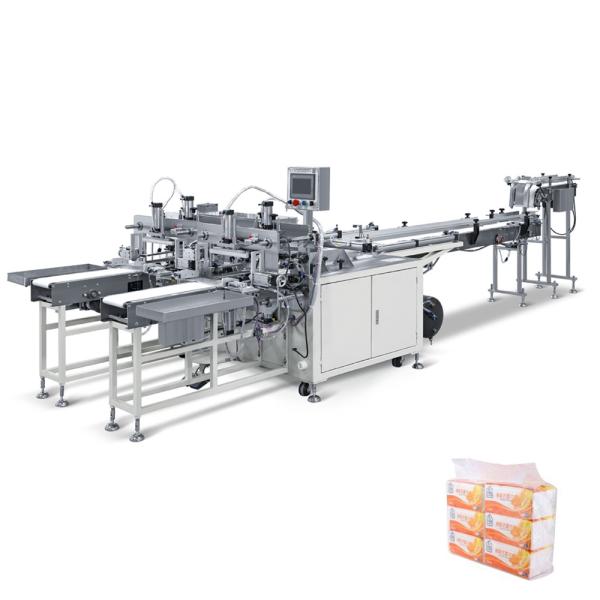

XY-BT-298 Full-automatic Soft Facial TissueNapkin Paper Packing Machine

Application: This machine is mainly used for Facial Tissue or Napkin Paper Three Dimensional Packing.

Main performance and structure features:

1. Adopt packing method by wrapping, hemming and sealing with compact structure and high product appeal.
2. Adopt the controlling system of step-less frequency conversion, touching screen and PLC, clear display and easy maintenance.
3. Adopt auto-putting conveyor, easy to be connected with automatic production line, saving laboring cost.
4. Stepless-speed regulation with double transducer, automatically adjusting packing film length.
5. High autoimmunization, high specialization, high efficiency and but less trouble.
6. Different sizes can be handled easily thanks to a fast and simple changeover facility.

Model & Main technical parameters:

Model XY-BT-298
Outline Dimension (mm) 3560*5885*1925
Speed (bags / min) 50-70
Packing size (mm)After folding size 100-230*90-150*40-100
Machine's Weight (KG) 3000
Motor Consumption (KW) 3.66
Heating Consumption (KW) 3.6
Power 380V 50Hz
Power Consumption (KW) 7.26
Packing film CPP,PE,OPP/CPP,PT/PE and other film sealed on both sides

Auto Tissue Paper Packaging Machine, 2 Heads Bundle Strapping

VIDEO LINK : https://youtu.be/sNFBymIlG2s

-------------------------------------------------------------------------------------------------------------------------------------------------

WORKSHOP

Auto Tissue Paper Packaging Machine, 2 Heads Bundle Strapping

PACKING AND DELIVERY

Auto Tissue Paper Packaging Machine, 2 Heads Bundle StrappingAuto Tissue Paper Packaging Machine, 2 Heads Bundle Strapping

SAY USD DOLLAR ONLY. (FOB Xiamen Price USD)

Packing: In standard export packing wooden pallet.

Terms of payment: 100% TT(Pay 30% deposit in advance ,the 70% balance is paid before shipping).

Delivery time: About 90days.

Guarantee: One year from date of Bill of Lading.
