15 Bags/Min PLC Double Decks Bundle Packing Machine 2.2KW
15 Bags/Min PLC Double Decks Bundle Packing Machine 2.2KW
15 Bags/Min PLC Double Decks Bundle Packing Machine 2.2KW
15 Bags/Min PLC Double Decks Bundle Packing Machine 2.2KW
15 Bags/Min PLC Double Decks Bundle Packing Machine 2.2KW
15 Bags/Min PLC Double Decks Bundle Packing Machine 2.2KW
15 Bags/Min PLC Double Decks Bundle Packing Machine 2.2KW
15 Bags/Min PLC Double Decks Bundle Packing Machine 2.2KW
15 Bags/Min PLC Double Decks Bundle Packing Machine 2.2KW
15 Bags/Min PLC Double Decks Bundle Packing Machine 2.2KW
Specifications
Brand Name :
Xinyun
Model Number :
XY-GU-26B
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD 13000-20000 set/sets
Payment Terms :
L/C, T/T, Western Union, MoneyGram,cash
Supply Ability :
200 set/sets per year
Delivery Time :
60days
Packaging Details :
Spraying antirust oil on machine surface and cover PE film,then packed by seaworthy Export Packing Wooden Pallet, ensure that the goods will safely arrive at the erection or construction site without any damage.
machine model :
XY-GU-26B
packing speed :
10-15 bags/min
packing size one row :
L(210-500)*W(130-200)*H100mm
packing type (bag) :
one row: 1*3,1*4,1*5;tow rows: 2*3,2*4,2*5
packing material :
pre-made PE plastic bag
power :
2.2KW 220V 50HZ
overall size :
4800*2000*1350mm
Description

High Quality 15 BagsMin PLC Double Decks Bundle Packing Machine 2.2KW

This machine is used for soft pull multi-piece in-bag packaging and is automatically transported by a conveyor belt. This machine integrates paper feed, bagging, sealing, and slits. Easy to set up and accurate temperature control using PLC, LCD text display parameters. The packaging is excellent in airtightness.It can form a production line with rewinding machine and cutting machine. This is a semi-automatic machine that allows workers to simply fill the bag.

Video Link: https://youtu.be/itNi3pVF5f0

product description
model XY-GU-26B
speed 10-15 bags/min
packing size one row L(210-500)*W(130-200)*H100mm
packing size tow rows L(210-500)*W(260-400)*H100mm
packing type (bag) one row: 1*3,1*4,1*5;tow rows: 2*3,2*4,2*5
packing material pre-made PE plastic bag
power 2.2KW 220V 50HZ
overall size 4800*2000*1350mm

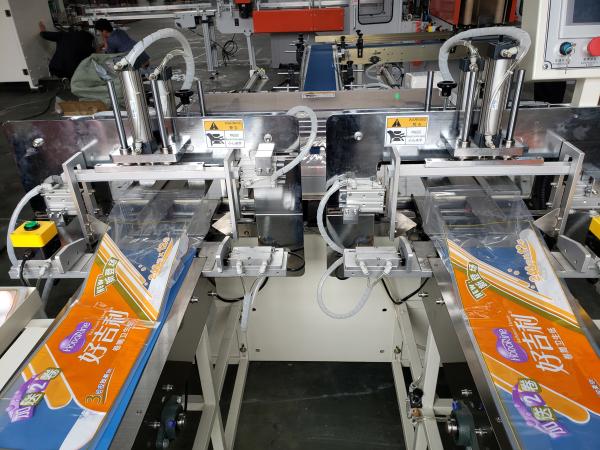

Machine parts detail images

15 Bags/Min PLC Double Decks Bundle Packing Machine 2.2KW

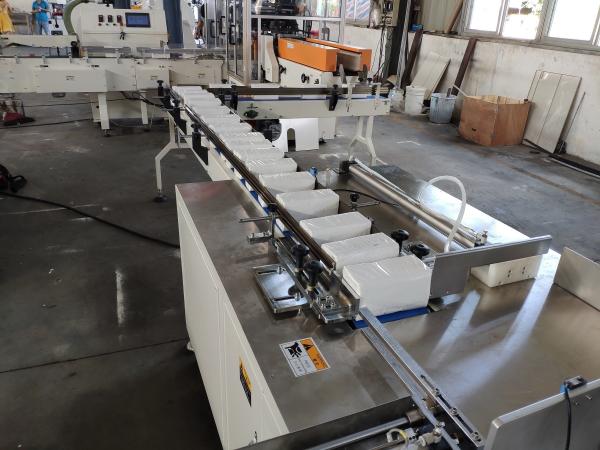

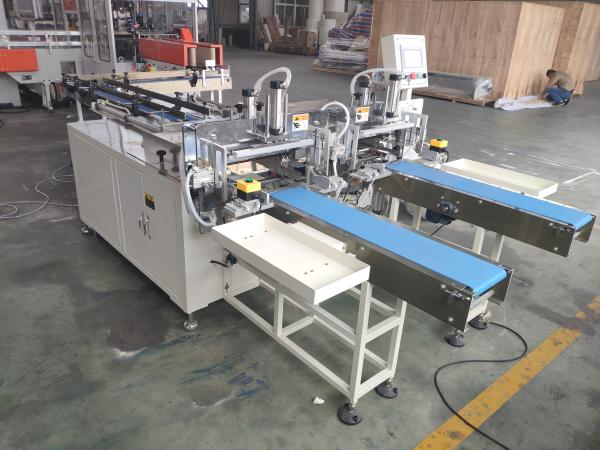

appearance
15 Bags/Min PLC Double Decks Bundle Packing Machine 2.2KW
conveyor belt
15 Bags/Min PLC Double Decks Bundle Packing Machine 2.2KW
Finished product

Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)

2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)

3) Facial Tissue Machine (2-8 output lanes)

4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)

5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)

6) Pocket Tissue Machine(mini and standard size)

7) All kinds of Tissue Paper Cutting and Packing Machine

8) Another Household Paper Equipments and Production Line.

Welcome to contact us to get more details !

We can design the machine according to your request.
