PLC Control Double Heads Facial Tissue Bagging And Sealing Machine 26Bags/Min
PLC Control Double Heads Facial Tissue Bagging And Sealing Machine 26Bags/Min
PLC Control Double Heads Facial Tissue Bagging And Sealing Machine 26Bags/Min
PLC Control Double Heads Facial Tissue Bagging And Sealing Machine 26Bags/Min
PLC Control Double Heads Facial Tissue Bagging And Sealing Machine 26Bags/Min
PLC Control Double Heads Facial Tissue Bagging And Sealing Machine 26Bags/Min
PLC Control Double Heads Facial Tissue Bagging And Sealing Machine 26Bags/Min
PLC Control Double Heads Facial Tissue Bagging And Sealing Machine 26Bags/Min
PLC Control Double Heads Facial Tissue Bagging And Sealing Machine 26Bags/Min
PLC Control Double Heads Facial Tissue Bagging And Sealing Machine 26Bags/Min
Specifications
Brand Name :
Fujian Xinyun Machinery Development Co.,Ltd
Model Number :
XY-GU-27B
Certification :
CE
Place of Origin :
China
MOQ :
1/set
Price :
USD 5,000~9,000/set
Supply Ability :
150/set/year
Delivery Time :
60 work days
Packaging Details :
Spraying antirust oil on machine surface and cover PE film,then packed by seaworthy Export Packing Wooden Pallet, ensure that the goods will safely arrive at the erection or construction site without any damage.
Facial tissue Packing Speed :
22-26 bags/min
Napkin Packing Speed :
16-22 bags/min
Single facial size :
（110-200）*（ 90-110） *（40-100）mm( Width must be pre-selected)
Single napkin size :
L（150-250）*W（ 120-200） *H （50-150）mm( Width must be pre-selected)
Power :
1.2 Kw 220 V，50 HZ
Air supply :
0.6 MPA(Supplied by user)
Description

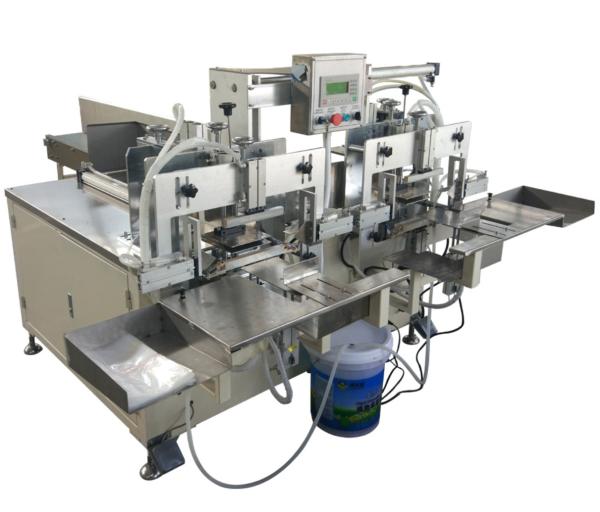

Double heads Facial TissueNapkin Paper Bagging And Sealing Machine

XY-GU-27B Facial Tissue/Napkin Paper Bagging And Sealing Machine

Outline

This product is used for packing facial tissue and napkin tissue.Place the paper on the loading part insert the Plastic bag into the discharge hole, product automatic loading into bag, meanwhile, automatic folding bag, and sealed and cut.

Main function characteristics

1. The machine can automatically package the front end of the connecting line to achieve continuous work.

2. For bag loading, sealed bag for one time, improved working efficiency, reduce the production cost.

3. Easy to operate, very low requirement for the operator skill.

4. Adopt PLC program, accurate location/controlling, convenient to data setting, changing.

5. Adopt high quality parts/electronics parts with imported and national top brand parts. Steady performance.

PLC Control Double Heads Facial Tissue Bagging And Sealing Machine 26Bags/Min

Main technological parameter

Model XY-GU-27B
Speed

Facial tissue: 22-26 bags/min

Napkin: 16-22 bags/min
Power 1.2 Kw 220 V,50 HZ
Air supply 0.6 MPA(Supplied by user)
Single facial/napkin size Facial tissue:(110-200)*( 90-110) *(40-100)mm( Width must be pre-selected)
Single facial/napkin size Napkin:L(150-250)*W( 120-200) *H (50-150)mm( Width must be pre-selected)

Video link : https://youtu.be/KJgwKWqGV4c

PLC Control Double Heads Facial Tissue Bagging And Sealing Machine 26Bags/MinPLC Control Double Heads Facial Tissue Bagging And Sealing Machine 26Bags/Min
