No Need Hand Touch V Fold Carton Box Drawing Facial Tissue Paper Making Machine Production Line
No Need Hand Touch V Fold Carton Box Drawing Facial Tissue Paper Making Machine Production Line
No Need Hand Touch V Fold Carton Box Drawing Facial Tissue Paper Making Machine Production Line
No Need Hand Touch V Fold Carton Box Drawing Facial Tissue Paper Making Machine Production Line
No Need Hand Touch V Fold Carton Box Drawing Facial Tissue Paper Making Machine Production Line
No Need Hand Touch V Fold Carton Box Drawing Facial Tissue Paper Making Machine Production Line
No Need Hand Touch V Fold Carton Box Drawing Facial Tissue Paper Making Machine Production Line
No Need Hand Touch V Fold Carton Box Drawing Facial Tissue Paper Making Machine Production Line
No Need Hand Touch V Fold Carton Box Drawing Facial Tissue Paper Making Machine Production Line
No Need Hand Touch V Fold Carton Box Drawing Facial Tissue Paper Making Machine Production Line
No Need Hand Touch V Fold Carton Box Drawing Facial Tissue Paper Making Machine Production Line
No Need Hand Touch V Fold Carton Box Drawing Facial Tissue Paper Making Machine Production Line
Specifications
Brand Name :
XINYUN
Model Number :
XY-GU-A-A
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 sets
Price :
125000 usd per production line
Payment Terms :
T/T
Supply Ability :
500 sets per year
Delivery Time :
60-70 days
Packaging Details :
Standard export wooden pallet
Voltage :
380V 50HZ
Condition :
New
Product type :
Carton box facial paper
Warranty :
1 Year
Processing type :
carton box facial tissue paper production line
After-sales service provided :
Engineers available to service machinery overseas,Video technical support
Raw material :
Jumbo Roll Paper
Application :
Tissue Paper Production Line
Output paper :
facial tissue paper
Production capacity :
60-100 meters/min
Capacity :
2-3 tons per 8 hours
Type :
Paper Making Machines
Description

No Need Hand Touch V Fold Carton Box Drawing Facial Tissue Paper Making Machine Production Line

Technical performance characteristic:

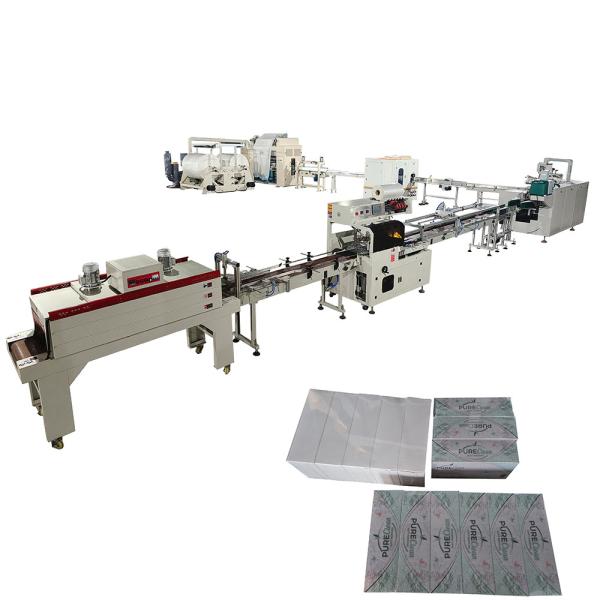

This production line consists of :
1. XY-GU-20A Automatic transfer Facial Tissue Folding Machine,
2. XY-GU-281 Automatic Facial Tissue Cutting Machine
3. XY-GU-388 Automatic carton box facial tissue packing machine
4. XY-TN-269 Full-automatic box facial tissue heat shrink packing machine
From jumbo roll paper into the finished product, the whole line work smoothly and run stable, saving the labor cost and reducing the labor strength. It’s best choice for the producing carton box facial tissue.
No Need Hand Touch V Fold Carton Box Drawing Facial Tissue Paper Making Machine Production Line

1. XY-GU-20A Automatic Facial Tissue Folding Machine

Name
Automatic transfer facial tissue folding machine
Speed
80-100m/min
Overall size(L*W*H)
8500*2250*2000mm
Weight of raw paper
(14-18)*2gsm
Power
35.3KW (380V,50HZ,3phase)

2. XY-GU-281 Automatic Facial Tissue Cutting Machine

High speed facial tissue cutting machine is an important component equipment of Box-drawing facial tissue production line , which can greatly improve the level of automation and production efficiency of the production line.
The machine is strong, beautifully designed, cut paper precise movements, rolls flat section, and smooth.

3. XY-GU-388 Automatic carton box facial tissue packing machine

Machine Model
XY-GU-388
Design Product Capacity
50-70 boxes/minute
Packing material
300-450g/㎡ carton box
Packing size
(110-240)mm X (60-160)mm X (20-120)mm
Air supply
0.5-0.8mpa
Power
15 Kw 380v 50Hz
Overall size
3600x1600x1700mm
Weight
2000 kg
Features:
1. Rejection automatically if no products, nonstandard height or lack of leaflet.
2. Stop automatically if incorrect position of products into carton.
3. Stop automatically if no cartons or out of leaflets continuous.
4. Easy to change to different products.
5. Protecting automatically for overloading.
6. Automatically displaying device for speed and finished products counting.
No Need Hand Touch V Fold Carton Box Drawing Facial Tissue Paper Making Machine Production Line

4. XY-TN-269 Full-automatic box facial tissue heat shrink packing machine
No Need Hand Touch V Fold Carton Box Drawing Facial Tissue Paper Making Machine Production LineThe equipment is operated by using PLC program control, big screen true color human-computer interface. The precise servo control feed length, electromechanical integration control and other international advanced technology con automatically detect each key action, has good fault information prompt system, make the whole production line achieving the best working state.

Model
4525L cutting and sealing machine
4525 temperature shrink machine
Power source
220V 50Hz/60Hz
380V 50/60Hz
Rated Power
1.55KW
12 KW
Sealing Size
 L800*W400*H200MM
450*220*120mm
Packing speed
20-40 Packs /min
0-10m/min
Packaging Size
L450 x W400 x H120 MM
450*220*120mm
Machine size
L1500×W750×H1360mm
L1600×W700×H1300mm
Weight
300KG
150KG
Q: Are you trading company or manufacturer
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to
quantity.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
