Fully Automatic Facial Tissue Paper Folding Machine With Half Fold Transfer Device
Fully Automatic Facial Tissue Paper Folding Machine With Half Fold Transfer Device
Fully Automatic Facial Tissue Paper Folding Machine With Half Fold Transfer Device
Fully Automatic Facial Tissue Paper Folding Machine With Half Fold Transfer Device
Fully Automatic Facial Tissue Paper Folding Machine With Half Fold Transfer Device
Fully Automatic Facial Tissue Paper Folding Machine With Half Fold Transfer Device
Fully Automatic Facial Tissue Paper Folding Machine With Half Fold Transfer Device
Fully Automatic Facial Tissue Paper Folding Machine With Half Fold Transfer Device
Specifications
Brand Name :
XINYUN
Model Number :
XY-GU-20A
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD 40000-100000 set
Payment Terms :
T/T
Delivery Time :
60 work days
Packaging Details :
In wooden pallet.Most of the electrical and electronic components are equipped as per export standard.
Condition :
New
Product type :
Facial Tissue
Warranty :
Twelve Months
Finished products :
Facial paper
Automation :
Fully automatic
Embossing :
Full embossing
Raw material :
Two jumbo rolls
Description

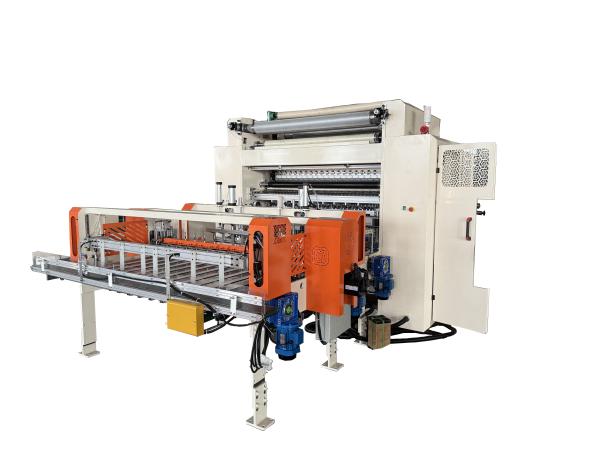

XY-GU-20A Fully Automatic Facial Tissue Paper Folding Machine With Half Fold Transfer Device

Fully Automatic Facial Tissue Paper Folding Machine With Half Fold Transfer Device

Function And Characteristics:

1. Automatic counting and sorting of points in a whole row output.
2. Helical blade cutting and vacuum adsorption folding.

3. The unwinding and rewinding processes feature stepless speed regulation, accommodating various paper materials with different levels of tension.
4. The system is equipped with PLC computer programming control and a pneumatic paper handling system, ensuring simple and easy operation.

5. Frequency conversion control, saves energy.

6. The width of the product is adjustable, enabling it to cater to diverse market demands.

7. Paper rolling pattern device with clear patterns and flexibility to meet market demands. (Patterns are customizable by customers)

8. It can make “V”type single layer towel and two layers glue lamination .(Optional)

Main Technical Parameters:

The max width of jumbo roll paper 2 lines 3lines 4lines 5lines 6lines
420mm 680mm 840mm 1050mm 1260mm
Electrical power for equipment 3.0KW 3.0KW 4.0KW 5.5KW 5.5KW
Vacuum blower 7.5KW 11KW 15KW 15KW 22KW
Production speed 60-100 m/min
Unfold size of finished products (L*W) 180 *130-210 mm
190 *130-210 mm
200 *130-210 mm
Folded size of finished products (L*W) 90 *130-210mm
95*130-210 mm
100*130-210 mm
Machine dimension (m) Depends on Machine Model
Equipment weight(kg) Depend on the size and configure

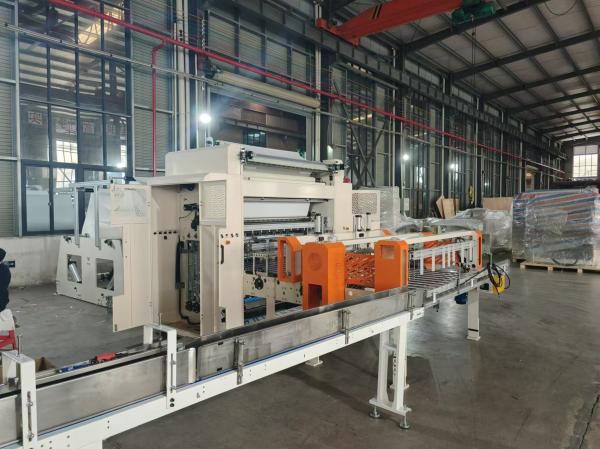

Detail Pictures:

Fully Automatic Facial Tissue Paper Folding Machine With Half Fold Transfer Device

Fully Automatic Facial Tissue Paper Folding Machine With Half Fold Transfer Device

Fully Automatic Facial Tissue Paper Folding Machine With Half Fold Transfer Device

FAQ:
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 60-90 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
