Automatic V Fold Facial Tissue Paper Making Machine 100-230 mm Adjustable
Automatic V Fold Facial Tissue Paper Making Machine 100-230 mm Adjustable
Automatic V Fold Facial Tissue Paper Making Machine 100-230 mm Adjustable
Automatic V Fold Facial Tissue Paper Making Machine 100-230 mm Adjustable
Automatic V Fold Facial Tissue Paper Making Machine 100-230 mm Adjustable
Automatic V Fold Facial Tissue Paper Making Machine 100-230 mm Adjustable
Automatic V Fold Facial Tissue Paper Making Machine 100-230 mm Adjustable
Automatic V Fold Facial Tissue Paper Making Machine 100-230 mm Adjustable
Specifications
Brand Name :
Xinyun
Model Number :
XY-GU-20A
Certification :
CE
Place of Origin :
Quanzhou
MOQ :
1 set
Price :
USD 13220-23200 set
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per year
Delivery Time :
60days
Packaging Details :
In standard export packing wooden pallet
Brand :
Xinyun
Machine Model :
XY-GU-20A
Design Product Capacity :
400-600/Sheets/min/line
Counting System :
Electronic Counting
Dimension :
3500mm*1500mm*1800mm
Cutting Size :
100-230 mm Adjustable
Automatic Function :
Embossing-Folding-Cutting-Counting
Control Sytem :
Servo motor, PLC, HMI, touch screen
Machine Type :
Folding machine
Motor :
Siemens
Product Size :
200x200mm(Other sizes please specify)
Frequency :
50Hz
Color Printing :
Optional
Unwinding Diameter :
1200mm
Description

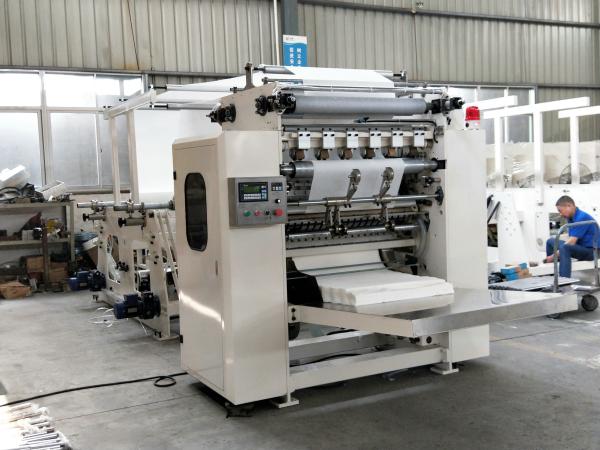

XY-GU-20A Automatic V Fold Facial Tissue Paper Making Machine

Production Description

The jumbo rolls, slit to the required width, are cut by slitting cylinders and interfolded into overlapped rectangular facial tissue sheets. Featuring automatic marking, the machine is recognized for its high speed, precise folding, and ease of operation.

Automatic V Fold Facial Tissue Paper Making Machine 100-230 mm Adjustable
Feature&functions

  1. Stable and Fast Operation – The wallboard rack provides superior stability, ensuring smooth and rapid machine performance.
  2. Customizable Product Widths – Capable of producing products in various widths as per customer requirements.
  3. Embossing Unit – The embossing unit securely bonds the plies together, enhancing product quality.
  4. Automatic Stop – The machine automatically halts if the paper breaks, preventing waste and ensuring continuous operation.

Product Parameters

Structure Wallboard structure
Diameter of raw material 1200mm
Diameter of raw material inner core 76.2mm
Embossing unit Steel to steel
Slitting unit Pneumatic slitting
Driving system Timing belt
Output lines 2-10 lines
Weight 3.0-5.0T

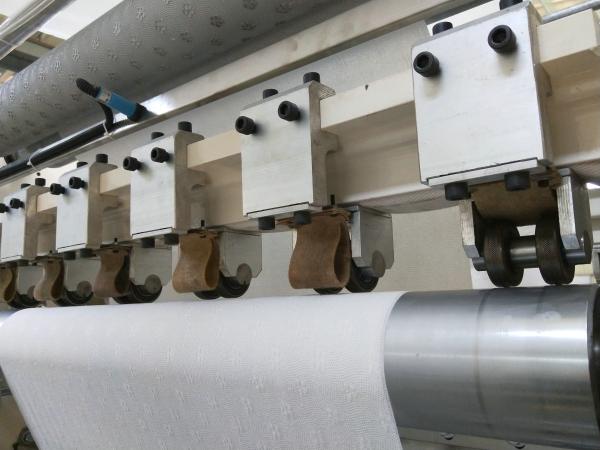

Machine details

Automatic V Fold Facial Tissue Paper Making Machine 100-230 mm AdjustableAutomatic V Fold Facial Tissue Paper Making Machine 100-230 mm AdjustableAutomatic V Fold Facial Tissue Paper Making Machine 100-230 mm Adjustable

Fujian Xinyun Machinery Development Co., Ltd. specializes in the manufacturing of Paper Converting Machinery. We are a professional supplier offering a comprehensive range of equipment tailored to the paper production industry, including:

  1. Toilet Paper Machines (1.2m–2.8m parent roll width, custom solutions available)
  2. Roll Kitchen Paper Towel Machines (1.2m–2.8m parent roll width, custom solutions available)
  3. Facial Tissue Machines (2-14 output lanes)
  4. Napkin Paper Machines (L-fold, 1/4-fold, 1/6-fold, 1/8-fold, and other multi-fold types)
  5. Hand Towel Paper Machines (C-fold, V-fold, N/Z-fold types)
  6. Pocket Tissue Machines (mini and standard sizes)
  7. Tissue Paper Cutting and Packing Machines (all types)
  8. Other Household Paper Equipment and Complete Production Lines

For inquiries, please contact us, and we will respond promptly. Thank you!
