Full Automatic Bottom Output Hanging type V fold Facial Tissue Paper Making Machine Production Line
Full Automatic Bottom Output Hanging type V fold Facial Tissue Paper Making Machine Production Line
Full Automatic Bottom Output Hanging type V fold Facial Tissue Paper Making Machine Production Line
Full Automatic Bottom Output Hanging type V fold Facial Tissue Paper Making Machine Production Line
Full Automatic Bottom Output Hanging type V fold Facial Tissue Paper Making Machine Production Line
Full Automatic Bottom Output Hanging type V fold Facial Tissue Paper Making Machine Production Line
Full Automatic Bottom Output Hanging type V fold Facial Tissue Paper Making Machine Production Line
Full Automatic Bottom Output Hanging type V fold Facial Tissue Paper Making Machine Production Line
Specifications
Brand Name :
XINYUN
Model Number :
XY-GU-A-A
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
100000 usd
Payment Terms :
T/T
Supply Ability :
500 set per year
Delivery Time :
60 days
Packaging Details :
Standard export wooden pallet
Speed :
30-60 bags per minutes
Output paper :
hanging type facial tissue paper
Condition :
New
Product type :
facial paper machine
Voltage :
380V 50HZ
Warranty :
1 Year
Processing type :
facial tissue paper production line
Weight :
according to the model
Raw material :
Jumbo Roll Paper
Application :
Paper Industry
Description

XY-GU-A-A Full Automatic Bottom Output Hanging type V fold Facial Tissue Paper Making Machine Production Line

This production line consists of :
XY-GU-20A Automatic Facial Tissue Folding Machine
XY-GU-281 Automatic Facial Tissue Cutting Machine
XY-BT-299 Automatic Hanging Type Facial Tissue Bag Packing Machine

From jumbo roll paper to the finished product, the whole line works smoothly and runs stable, saving labor costs and reducing labor strength. It’s the best choice for producing hanging-type facial tissue.

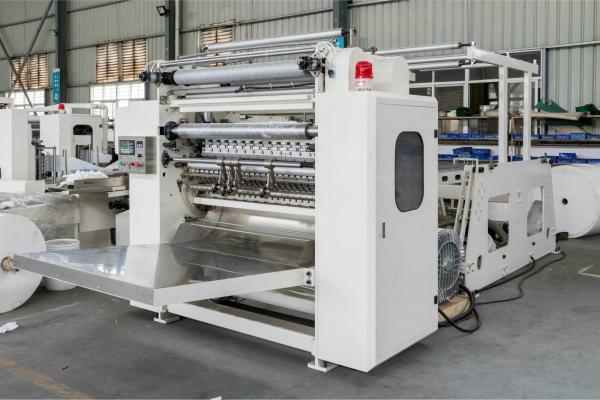

XY-GU-20A Automatic Facial Tissue Folding Machine

Machine model
XY-GU-20A
Folded size of finished products
100*(120-210)±2mm
Unfold size of finished products
200*210±2mm
The width of jumbo roll paper
1400mm
Diameter of jumbo roll paper
1200mm
Diameter of jumbo roll paper inner core
76.2mm
Daily Output
About 7.5T/22 hours (jumbo roll:three layers and 15g/m²)
Embossing unit
Steel to steel full embossing, Steel to steel edge embossing ,independent pneumatic regulation
Slitting unit
Pneumatic slitting
Pneumatic system
3 HP air compressor ,mini pressure 5kg/cm2PA
Driving system
Timing belt
Voltage
380V 50HZ
Pneumatic system
3 HP air compressor ,mini pressure 5kg/cm2PA

XY-GU-281 Automatic Facial Tissue Cutting Machine

High-speed facial tissue cutting machines are pivotal component equipment in box-drawing facial tissue production lines, significantly enhancing the automation level and production efficiency of these lines. These machines boast robust construction, elegant design, and precise cutting movements, ensuring a flat and smooth section of rolled paper.

In addition to their efficiency, these facial tissue cutting machines offer reliable performance and easy operation, making them an ideal choice for modern tissue production facilities. With their advanced features and user-friendly interfaces, these machines contribute to streamlining production processes and reducing operational costs.

The incorporation of high-speed facial tissue cutting machines into production lines not only expedites output but also ensures consistent product quality, satisfying the demands of today's market for high-quality facial tissues. Their ability to process large volumes of tissue quickly and accurately makes them indispensable assets in any tissue manufacturing operation.

Ultimately, investing in a high-speed facial tissue cutting machine is a strategic decision that can enhance the competitiveness and profitability of tissue product manufacturers, positioning them favorably in a rapidly evolving market landscape.

Designation
Parameter values
The length of unfinished products
minimum 500mm(or, mini 5lines)
The Height of finished product
30~130mm
Production Speed
20~150cuts/min
Operating speed
20~120cut/min
Round blade outer diameter
Φ610mm
Paper cutting circular knife top speed
980R/min
Cutting size

L(90-250)-W(130-500)-H70-100
Left-over Length
20~65mm
Power
11KW
Power supply
380V 50Hz
Air pressure
0.5~0.8MPa
Machine Size
4600*1700*2500mm
weight
2300~2600kg

Full Automatic Bottom Output Hanging type V fold Facial Tissue Paper Making Machine Production Line

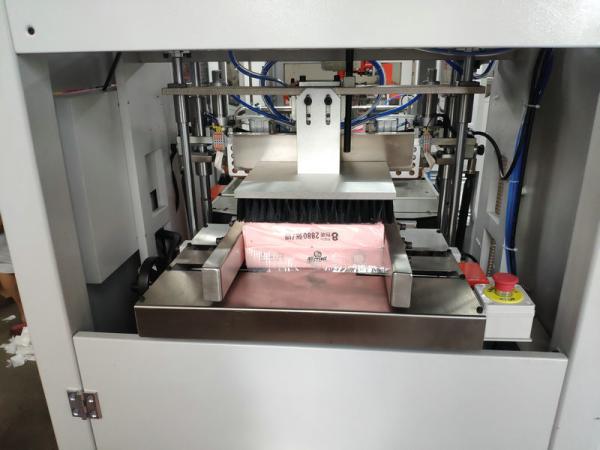

XY-BT-299 Automatic Hanging Type Facial Tissue Bag Packing Machine

Design speed: 30 bags/min
Production speed :20-28 bags/min (depending on the specifications)
Power Motor power:12 Kw
Main unit heating power:2.4Kw
Machine weight:1400KG
Packaging qualification rate ≥98%
Dimensions:3750*4890*1550 (length × width × height)
Power type :AC 380 V (volts) 50 Hz (hertz)
Compressed air consumption : 6kg/cm2 0.45m3/min
Machine noise ≤75 decibels (db)
Note: The above data may differ from the actual data due to different packaging materials and other similar situations that cause different machine configuration requirements.
