Specifications
Brand Name :
XINYUN
Model Number :
XY-OQ-7000A
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
12690 USD
Payment Terms :
T/T
Supply Ability :
500 sets per year
Delivery Time :
30-40 days
Packaging Details :
Standard export wooden pallet
Warranty :
1 year
Color Printing :
1-4 colors
Weight :
1.2 tons
Embossing Unit :
Steel to steel
Folding Type :
1/4 fold
Color Of Machine :
white
Embossing :
Yes
Power Supply :
5.5KW 380V, 50Hz
Embossing Pattern :
Full or border pattern as per request
Machine Type :
napkin paper production line
Condition :
New
Product type :
napkin paper production line
Processing type :
Paper Folding Machine and paper packing machine
Folding Speed :
800-1000 pcs/min
Packing speed :
8-12 bags/minutes
Raw material :
Jumbo Roll Paper
Capacity :
0.5-1.5 tons per day
Description

Cheap price 2 colors printing napkin tissue paper making machine packing production line for start business

Cheap price 2 colors printing napkin tissue paper making machine packing production line for start business

This production line including two machines:

1. XY-OQ-7000A High speed printing napkin paper folding machine

2. XY-GU-27 Semi automatic napkin paper packing machine

Cheap price 2 colors printing napkin tissue paper making machine packing production line for start business

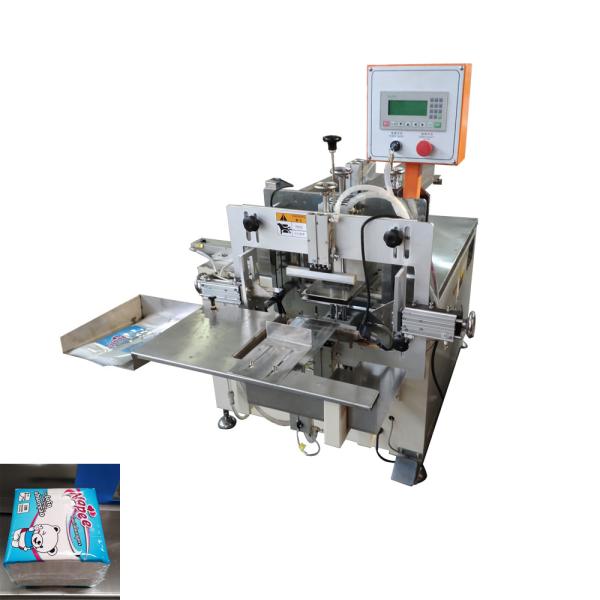

XY-GU-27 Semi automatic napkin paper packing machine
Cheap price 2 colors printing napkin tissue paper making machine packing production line for start business
1.Suitable for packing single facial tissue or napkin packing.
2.Multi function: automatic conveying, single head operation, auto feeding, auto sealing.

3. Adopting the advanced PLC computer programming control, double frequency conversions control and the liquid crystal text to display parameters, it is very easy to set the machine. Moreover, the temperature controlling is more precise so that heating wires and tapes with thermo stability can be protected more efficiently.
4. Packing and sealing are pretty and tidy. The machine can be operated with full-automation and semi-automation. The machine with conveyer can be connected with facial tissue packing machine with conveyer. This allows the machine have high capacity and therefore to save the labor and reduce production cost.
5. Change to different product size by adjusting hand wheels which adjust easily and simply.
6. Adopting double temperature controlled sealing and cutting system to make sure sealing quality is perfect and film bags are not broken.
7. Comprehensive design, rigid frame, and imported major component, allows our machine to work steadily, efficiently, and long lasting too.

Model XY-GU-27
Speed Facial tissue: 14-20 bags/min
Napkin: 12-14 bags/min
Power 1.2Kw 220 V,50 HZ
Air supply 0.6 MPA(Supplied by user)
Single facial/napkin size Facial tissue:(110-210)*(90-110)*(40-100)mm
(Width must be pre-selected)
Single facial/napkin size Napkin:(150-250)*(120-200)*(50-150)mm(Width must be pre-selected)
Machine size L2700*W1050*H1050 mm

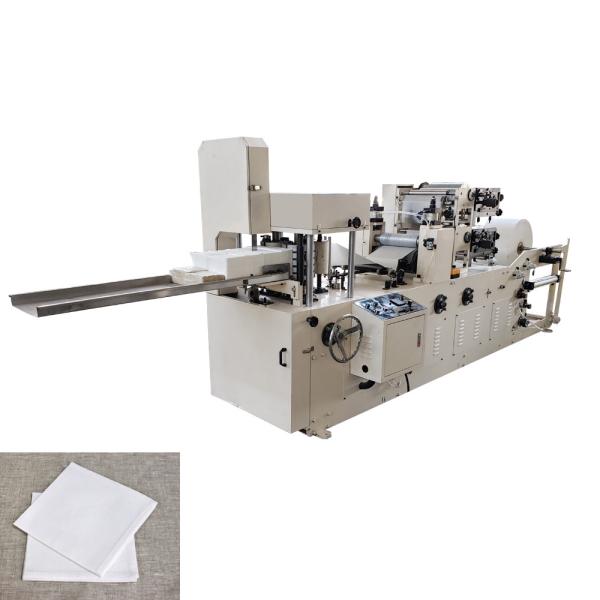

XY-OQ-7000A High speed printing napkin paper folding machine

Main feature:
1. Adopt flexible printing unit, high procession ceramic anilox roller, making the water ink equally spread and print out
extract and stereo pattern.
2. Raw material through synchronous belt and come into calendaring unit, and into embossing unit. There is tension unit between raw material and calendaring, raw material and embossment.
3. Folding wheel automatic stop machine protection unit.
4. Automatic rectify system.
5. Automatic constant temperature drying system.
6. Raw material broken protection unit. Automatic speed down unit when raw material run out. Folding roller stop protection unit.
7. Water ink circulation system.
8. Full-automatic unreel control system: track the speed of main machine by computer, transmit to servo system, the servo system convey paper to printing system accurately according to the order of computer and make perfect product.

Cheap price 2 colors printing napkin tissue paper making machine packing production line for start business

Jumbo roll stand

Folding device

Machine Model
XY-OQ-7000A
Size of finished product
200mm/230mm/270mm/300mm/330mm/400mm
Printing unit
1-3 colors as per requirement
Embossing unit
Full of border pattern as per requirement
Parent roll width
The same as finished product
parent roll diameter
1200mm
Parent roll core inner diameter
76.2mm
Folding style
1/2,1/4,1/6,1/8 folding as per requirement
Speed
600 sheets/min
Installed power
4.5KW (380V 50HZ 3Phases)
Air pressure required
Provide by buyer
Machine weight
1000KG
Space required
4*1*1.5m

Embossing Device
Color Printing Device
Flexo Printing Device
Q: Are you trading company or manufacturer
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to
quantity.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
