Specifications
Brand Name :
XINYUN
Model Number :
XY-BT-288
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
36000 usd per set
Payment Terms :
T/T
Supply Ability :
500 sets per year
Delivery Time :
60 days
Packaging Details :
Standard export wooden pallet
Speed :
100m/min
Color :
white
Size :
2000mm*1000*1800mm
Weight :
3000 kg
Warranty :
1 year
Power :
380V 50HZ 3Phase
Finished product :
glue lamination N fold hand towel
Condition :
New
Jumbo roll width :
1200mm
Jumbo roll diameter :
1200mm
Description

Dot to dot embossing glue lamination N fold hand towel paper making machine production line

This production line including 3 machines:

1. XY-BT-288N Automatic glue lamination N fold hand towel paper folding machine

2. XY-AI-15 Semi automatic hand towel bagging machine

3.XY-AI-300 Semi automatic hand towel cutting machine

Dot to dot embossing glue lamination N fold hand towel paper making machine production line

1. XY-BT-288N Automatic glue lamination N fold hand towel paper folding machine

Main functions:Main functions
The jumbo rolls which have been slit into the desired width are cut by the slitting cylinders, and then inter folded into inter overlapped N fold hand towel sheets. This machine have automatic marking functions. It features of high speed , nice folding and easy operation .
1. Wallboard rack and Machine running stability is extremely good fast
2. Make various products width as requirement .
3. Equipped with embossing unit to keep the plies together
4. The machine will stop when the paper broken. It avoid waste caused by no paper or paper broken.

Dot to dot embossing glue lamination N fold hand towel paper making machine production line

Hand Towel Folding Machine Overview
1. Jumbo Roll stander with 2 units
2. Paper Tension Control system
3. Glue lamination embossing roll pattern design customize
4. Digital Counting sensors readout
5. Product Output panel

Machine Model
XY-BT-288N Automatic glue lamination N fold hand towel paper folding machine
Unfolding size(L*W)
230*230+-2 mm
Folding size(L*W)
76.6*230+-2 mm
Diameter of jumbo roll inner core
76.2mm (Other sizes are available)
Production speed
0-100m/min (Depending on the machine model )
Power
Frequency conversion speed regulator
Programmable controller
PLC computer controller
Folding type
Vacuum suction “ N” fold
Transmission unit
Timing belt and flat belt
Counter
Ink marked
Embossing unit
Steel to steel
Slitting unit
Pneumatic dot slitting
Pneumatic system
3HP Air compressor, mini air pressure 5 kg/cm2 (provided by customer)

Dot to dot embossing glue lamination N fold hand towel paper making machine production line
2. XY-AI-15 Semi automatic hand towel bagging machine
Main functions
1. This machine replaces a manual operation.
2. After bagging, the product is orderly.
Machine model
XY-AI-15
Speed:
3-5 bags/min
Power:
0.2 Kw (220V 50Hz one phase)
Packing size
length 1150 mm, width 70 mm
Dimensions
1500*850*700mm

Dot to dot embossing glue lamination N fold hand towel paper making machine production line

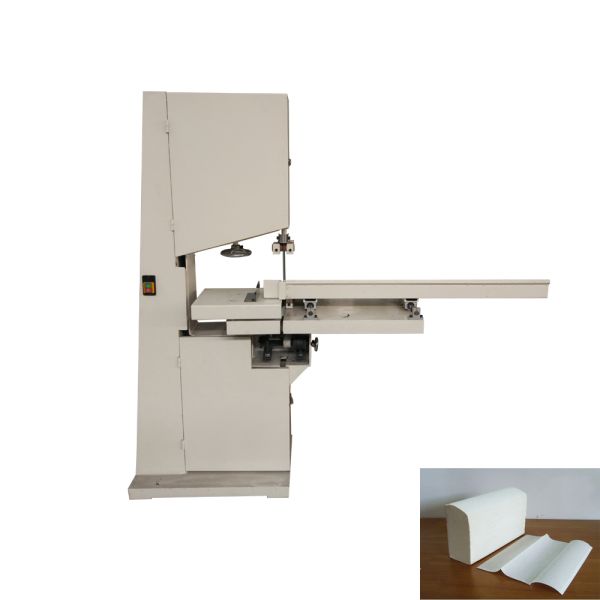

3.XY-AI-300 Semi automatic hand towel cutting machine

Functions and features
This machine is the equipment for cut hand towel paper.
The machine is compose with stander, saw blade drive, adjustment, tension, saw blade grind, operation table and hand table. It is enjoy compact structure, stable running and convenient operation.

Main technology parameter:
Power: 2.2KW (380V 50Hz)
Production speed: 30-60 cuts /min
Cutting width:80~150mm(Big:80~250mm)
Overall size (m ): 1.6x0.6x1.8 (LxW xH)
Weight: About 0.6 T

Dot to dot embossing glue lamination N fold hand towel paper making machine production line

Cutting speed
20-40 cuts/minute
hand towel length
420-1200 mm(it can be made according to customer request)
hand towel width
≦150mm
hand towel
80-250mm
Cutting tolerance
±1.5mm
Power supply
2.2kw 380V 50Hz
Overall size
1600x600x1800mm
Machine weight
600KG
Cutting speed
20-40 cuts/minute
Toilet log length
1200-2000 mm(it can be made according to customer request)
Finished toilet roll length
≦300mm
Finished toilet roll diameter
80-250mm
Cutting tolerance
±1.5mm
Power supply
2.2kw 380V 50Hz
Overall size
1600x600x1800mm
Machine weight
600KG

Technical performance characteristic:

This machine is the equipment for cutting paper.The main function is to toilet paper,kitchen towel paper,maxi roll and hand towel paper into various kinds of standard small rolls.

Cutting speed
20-40 cuts/minute
Toilet log length
1200-2000 mm(it can be made according to customer request)
Finished toilet roll length
≦300mm
Finished toilet roll diameter
80-250mm
Cutting tolerance
±1.5mm
Power supply
2.2kw 380V 50Hz
Overall size
1600x600x1800mm
Machine weight
600KG

Q: Are you trading company or manufacturer
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to
quantity.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
