Specifications
Brand Name :
PRINTYOUNG
Model Number :
WFD720
Certification :
CE
Place of Origin :
China
MOQ :
1 Set/Sets
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
5-8days (stock),20-60days(unstock)
Packaging Details :
Neutral packaging, suitable for shipping in a solid iron frame composite box or fumigation wooden box, to adapt to climate change, Fang Lin, moisture, mold, shock, rust.
Machine Type :
Bag Forming Machine
Driven Type :
Electric
Voltage :
380V
Suitable Glue :
Water Based Glue
Web age content :
Automatic
Counting :
Aurtomatic
Packaging Type :
Cartons
Bag width :
320—600mm adjusting according need
Roll material width :
660—1220mm
Paper roll Max. dia. :
1200mm
Description

High Speed Automatic Double Layer Three-side Sealing Bag Making Machine

Quick Detail

WFD720 multi layer paper bag making machine use for produce 70-140 gsm rolling kraft paper bag, the size can be adjust as user’s need. The middle seam gluing. The bag made by this machine use for packing gain,chemical products, cement.

Model WFD720
Bag length unlimited
Bag width 320—600mm adjusting according need
Roll material width 660—1220mm
Paper roll Max. di 1200mm
Paper weight 70—140gsm
Roll paper core dia Ф76mm
Paper layer 1 - 4 layer(according to user’s need, can make 3 layer paper+ 1 film
Control mode touch screen PLC servo control system,photoelectric tracking
Out dimension 14000mm*2300mm*1900mm

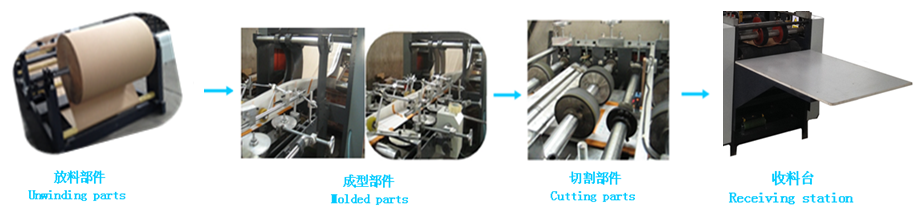

Process Chart

High Speed Automatic Double Layer Three-side Sealing Bag Making Machine

Rolling material → unwinding → Layering →middle seam gluing →forming→multi layer traction→ cutting(set length)→pull cutting → photoelectric counting → bag conveying → finished bag.

Key Feature

High Speed Automatic Double Layer Three-side Sealing Bag Making Machine

With human-machine interface (touch screen), frequency control, high precision servo control system, PLC programming control system, automatic counting, output and so on. Control system easy and convenient to operate: roll material machine automatically stop; Color code automatic tracking, gluing, forming, feeding material, Photoelectric sensor; setting-length without change gear, cutter with hot and cold dual-use cut off, and other functions.

Application

The machine is used for cement bag ,chemical bag.

Samples

High Speed Automatic Double Layer Three-side Sealing Bag Making Machine

High Speed Automatic Double Layer Three-side Sealing Bag Making Machine
