Automatic Paper Bag Making Machine Sheet - Feeding High Precision

Specifications :

Description :

PRY700C-240 sheet-feeding paper bag making machine (adopt Italy technology) is suitable for the mass bag production,it is the first choice of medium and top grade handbag device.This product adopts mechanical,electricity,light,gas integration technology,combine a number of its proprietary technology. use sheet paper as raw material,can one-time finish:paper feeding, positioning,die-cutting, tube forming, gusset forming, square bottom folding and gluing automatic, and then compaction output. The variable speed drive technology, combined with the system of vertical and horizontal creasing, bottom folding realize trackless bag molding process. using the PLC programmable control, frequency control technology to realize the integral multi-dimensional control, more centralized control and single point remote control operating system . with characteristics of good quality and high efficiency,its technology ranks leading level in domestic similar products.

Suitable paper :

Suitable Paper: Kraft paper, art paper(including film adhesive paper)

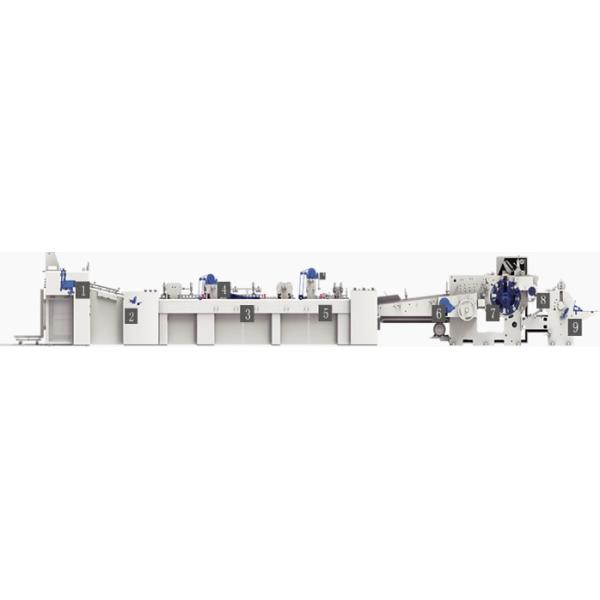

Machine configuration :

1. Feeder:enhanced prestack paper feeder to realize non stop paper feeding,greatly save the time to load and adjust raw paper.
2. Front and side guides positioning system
3. M side making guesst system
4. Big and small edge glue system: Standard configuration big and small side gluing system,front and back joint edge both able to produce.
5. Paper blocked checking system
6. Planetary gear push align guide system,which can realize non stop machine paper push align guide adjustment

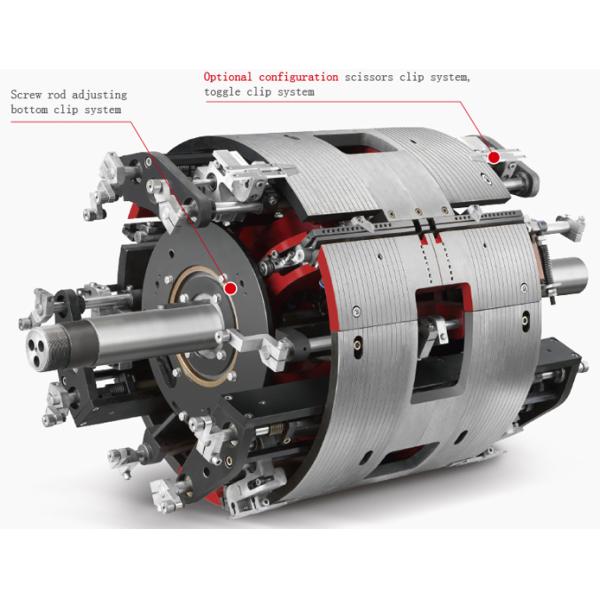

7. Folding bottom roller 4 equal parts design, low speed and high efficiency
8. Planetary gear adjust paper hit rod system,which can realize non stop machine paper hit rod adjustment
9. Automatic collection system: Automatic counting,convenient to collect bags.

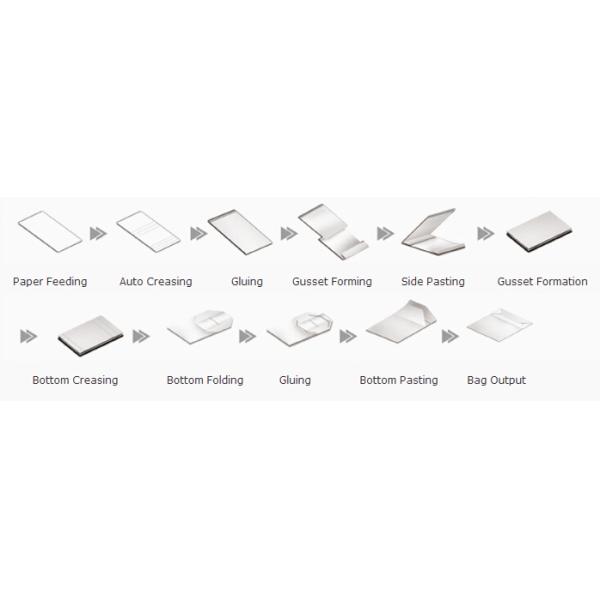

Technological process :
