Automatic Electric Plastic Thermal Lamination Bopp Film Laminating Machine SW Series
Automatic Electric Plastic Thermal Lamination Bopp Film Laminating Machine SW Series
Automatic Electric Plastic Thermal Lamination Bopp Film Laminating Machine SW Series
Automatic Electric Plastic Thermal Lamination Bopp Film Laminating Machine SW Series
Automatic Electric Plastic Thermal Lamination Bopp Film Laminating Machine SW Series
Automatic Electric Plastic Thermal Lamination Bopp Film Laminating Machine SW Series
Automatic Electric Plastic Thermal Lamination Bopp Film Laminating Machine SW Series
Automatic Electric Plastic Thermal Lamination Bopp Film Laminating Machine SW Series
Automatic Electric Plastic Thermal Lamination Bopp Film Laminating Machine SW Series
Automatic Electric Plastic Thermal Lamination Bopp Film Laminating Machine SW Series
Automatic Electric Plastic Thermal Lamination Bopp Film Laminating Machine SW Series
Automatic Electric Plastic Thermal Lamination Bopp Film Laminating Machine SW Series
Automatic Electric Plastic Thermal Lamination Bopp Film Laminating Machine SW Series
Automatic Electric Plastic Thermal Lamination Bopp Film Laminating Machine SW Series
Specifications
Brand Name :
PRINTYOUNG
Model Number :
SW-560,660,760
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
US 33200-38000 Set
Payment Terms :
L/C, T/T
Supply Ability :
10 Set/Sets per Year
Delivery Time :
30 days
Packaging Details :
Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Type :
Laminating Machine
Automatic Grade :
Automatic
Driven Type :
Electric
Voltage :
380V
Model :
SW-560,660,760
Min Paper Size :
210 * 300 mm
Paper Thickness :
90-600 gsm
Max Laminating Speed :
0-60 m/min
Gross Power :
20 kw
Description

SW Series Automatic Laminating Machine
Features
1.Paper loading plate of feeder can land to ground to load paper pile easily.
2.Suction device guarantees stablity and smooth of paper sending.
3.Bigger heating roller with electromagnetism technology ensures high quality lamination.
4.Seperation structure design makes operation and maintaince easily.
5.New design of double layer patting plate of auto stacker makes operation easily.
Technical Parameters
SW Series Automatic Laminating Machine
Model
 SW-560 SW-660 SW-760
Max Paper Width 560 * 820 mm 660 * 820 mm 760 * 820 mm
Min Paper Size 210 * 300 mm
210 * 300 mm
 210 * 300 mm
Paper Thickness 90-600 gsm
90-600 gsm
 90-600 gsm
Max Laminating Speed 0-60 m/min 0-60 m/min 0-60 m/min
Gross Power 20 kw
20 kw
 20 kw
Total Weight 2600 kg 2800 kg 3000 kg
Overall Dimension
 4600 * 1350 * 1600 mm
4600 * 1450 * 1700 mm
 4600 * 1550 * 1700 mm
Configuration

Feeder

*Servo-controlled feeder head replenishes sheets
*Sheets gap sensor for self-protection
*The overlap regulator adjusts the sheets overlapped length

Pneumatic Sheeter

*Adjustable pro-active,anti-curl bar takes the curl out of laminated sheets
*Steer wheel exerts negative force on one side to help with sheeting
*Adjustable sheeting pressure
*Stable and efficient pneumatic sheeting system with a photoelectric detection

Suction Device

Suction device guarantees stablity and smooth of paper sending.

Front Lay

Servo controller and front lay guarantees precision of paper overlap.

Electromagnetic Heater

Equipped with advanced electromagnetic heater.Fast pre-heating.Energy saving. Environmental protection.

Anti-Curvature Device

The machine is equipped with an anti-curl device,which ensures that paper remains flat and smooth during the lamination process.
Automatic Stacker
Automatic stacker collects laminated paper sheet high efficiently and pat paper in good order as well as counter.
*Corrugated delivery system flattens and delivers sheets
*Side joggers and back-stop stack sheets in order

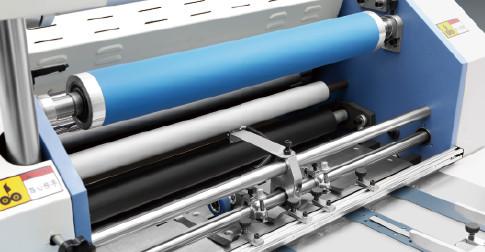

Laminator
*Electromagnetic-heated,chrome laminating roller with the large diameter
*Hydraulic pump along with rubber roller exerts a big,even and constant laminating pressure
*Film mounted on a quick-change inflatable air-shaft with the scale on it
*Air-shaft ensures precise film release tension and speed
*Film roll slitting and perforating mechanisms
Others
*Feed,overlap adjustment,laminating,sheeting and stacking are finished in one pass
*Separated structure convenient for machine maintenance and repair
*Touch screen and control panel with colourful buttons
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free;
2)We can send technicians (engineers) to your factory for installation and training.
You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.
And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.
If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
