ZH-600G 380V 3.2KW Crash Lock Bottom Carton Folder Gluer Machine
ZH-600G 380V 3.2KW Crash Lock Bottom Carton Folder Gluer Machine
ZH-600G 380V 3.2KW Crash Lock Bottom Carton Folder Gluer Machine
ZH-600G 380V 3.2KW Crash Lock Bottom Carton Folder Gluer Machine
ZH-600G 380V 3.2KW Crash Lock Bottom Carton Folder Gluer Machine
ZH-600G 380V 3.2KW Crash Lock Bottom Carton Folder Gluer Machine
ZH-600G 380V 3.2KW Crash Lock Bottom Carton Folder Gluer Machine
ZH-600G 380V 3.2KW Crash Lock Bottom Carton Folder Gluer Machine
ZH-600G 380V 3.2KW Crash Lock Bottom Carton Folder Gluer Machine
ZH-600G 380V 3.2KW Crash Lock Bottom Carton Folder Gluer Machine
ZH-600G 380V 3.2KW Crash Lock Bottom Carton Folder Gluer Machine
ZH-600G 380V 3.2KW Crash Lock Bottom Carton Folder Gluer Machine
Specifications
Brand Name :
PRINTYOUNG
Model Number :
ZH-600G
Certification :
CE Certificate
Place of Origin :
China
MOQ :
1 Set/Sets
Price :
Discussible
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
500 Units per year
Delivery Time :
2 Weeks
Packaging Details :
wooden case
Voltage :
380V,3.2KW
Condition :
New
Driven type :
Electric
Type :
Gluing Machine
Warranty :
1 Year
Model :
ZH-600G
Weight :
1.6t
Suitable paper :
210-600g/m² paperboard
Dimension :
8.5*1.2*1.3M
Description

ZH-600G Economic Stable High Speed Automatic Carton Folder Gluer with Crash Lock Bottom

Feature:

ZH600G is our most competitive folder gluer with crash lock bottom which developed by ourselves. It has two National Patents. Its easy operation, reasonable price and wide application make it a new leap forward in the history of folder gluer. It combines a variety of folder gluer functions: straight line box, pre-fold box, crash lock bottom box. Our machine is featured by multi-function, wide application, easy operation and competitive price. Compared to older generation folder gluer, our machines simplify the complicated construction, reduce the difficulty of test run and reduce the cost. Especially for the current packaging and printing industry with tough competition, it can help to shorter delivery time and recover your invest easily. It is ideal equipment in printing industry.

  1. Line speed: 0—220m/min adjustable
  2. Usage paper: 210-660g/m²paperboard
  3. Box forming:Either side folds, either sides pre-fold, and crash lock bottom
  4. Paperboard Feeding: Continuous automatic
  5. Way of folding: First, second and fourth lines fold 180 degree, third line fold 135 degree.
  6. Glue Type: Cold glue
  7. Power: three-phase, AC380V, (600G)3.2kw (700G)3.2kw (800G)4.5kw
  8. Weight: 1600kg,1800kg,2000kg
  9. Dimension: (600G)8500×1200×1300mm (700G)8500*1350*1300mm (800G)10000*1500*1300mm
  10. The counting range: 0～999999(full-automatic)

Technical Parameters

Line Speed 0-220m/min continuous adjustment
Suitable paper 210-600g/m² paperboard
Box Forming single side gluing or both side gluing and pre-folding , crash lock bottom
delivery Paper feeding
Glue Cold glue
Power 380V 3.2KW
Weight 1.6t
Dimension 8.5*1.2*1.3M

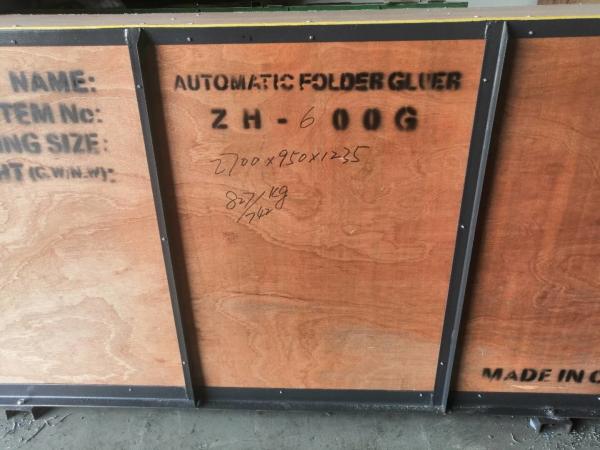

Steel frame Packing Size 8.94m³ 1585/1817kg
Feeding Part 2700*950*1235=3.17 m³ 742/827kg
Folding Part 2185*1100*1235=2.97m³ 443/520kg
Conveyor Part 2660*950*1110=2.80 m³ 400/470kg



ZH-600G 380V 3.2KW Crash Lock Bottom Carton Folder Gluer Machine

Box Type
A
B
C(min)
D(min)
Side-Glue Box(I)
110-600
60-500
50
10
Pre-Folding Box(I)
170-600
60-500
80
10
Crash Lock Bottom Box(II)
180-560
100-500
80
40

ZH-600G 380V 3.2KW Crash Lock Bottom Carton Folder Gluer Machine

ZH-600G 380V 3.2KW Crash Lock Bottom Carton Folder Gluer Machine

Product display

ZH-600G 380V 3.2KW Crash Lock Bottom Carton Folder Gluer Machine

Company Profile

ZH-600G 380V 3.2KW Crash Lock Bottom Carton Folder Gluer Machine
ZH-600G 380V 3.2KW Crash Lock Bottom Carton Folder Gluer Machine

FAQ

Q1: Are you a manufacturer or a trading company?

A: Our shanghai office is mainly doing export. We have our own factory in Wenzhou, Zhejiang Province.

Q2. What is the machine warranty?

A: One year. After the warranty, we still provide technical support to buyer at low cost.

Q3. What is the production time while placing order?

A: Normally about 10-20 days.

Q4. What is the delivery time?

A: 15-30days after deposit.

Q5. Can your company handle shipping for customers?

A: Yes, just give us destination sea port or container yard.

Q6. Does the packing strong?

A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Q7. How about the machine installation and training ?

A: 1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training. You shall pay the round trip air fare and accommodations, plus each technician charges USD100/per day.

Q8. Do you have machines in stock?

A: For standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.

Q9. How can you assure the machines’ quality?

A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.

Q10. Do you inspect machines or test running before packing?

A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material

Q11. What’s the payment term?

A: T/T 30% in advance, the balance shall be paid before delivery. We also accept payment by West Union or L/C at sight.

Q12. Do you accept factory visiting?

A: Warmly welcome for your visiting.

Q13. How many years are you in printing field?

A: Shanghai company is 12 years old, the factory is more than 20years.

Q14. How many clients do you have?

A: We have sold our machines to about 60 countries. We have agents in South Africa, Morocco and Italy.
