Specifications
Brand Name :
PRINTYOUNG
Model Number :
PCS-1200
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, T/T
Supply Ability :
10 Set/Sets per Month
Delivery Time :
30 days
Packaging Details :
Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Model :
PCS-1200
Paper material :
Cardboard 210-800gsm, A/B/E Flute
Max.speed :
260m/min
Max.thickness of folded box :
12mm
Way of folding :
Fold 1 and fold 3 are 180°and 135°,fold 2 and fold 4 are 180°
Power supply :
3P 380V 50HZ
Blank width :
1200mm
Length x Width x Height :
16.5x1.84x1.7m
Net Weight :
9.5T
Total power :
31.28kw
Description
Technical Parameters
Automatic Grouping 4 and 6 Corner Folder Gluer
Model
PCS-1200
Paper Material
Cardboard 210-800 gsm A/B/E Flute
Max.Speed
260 m/min
Max.Thickness of Folded box
12mm
Way of Folding
Fold 1 and fold 3 are 180°and 135°,fold 2 and fold 4 are 180°
Power Supply
3 P 380 V 50 HZ
Blank Width
1200 mm
Length x Width x Height
16.5 x 1.84 x 1.7 m
Net Weight
9.5 T
Total Power
31.28 kw

Products Description
Configuration

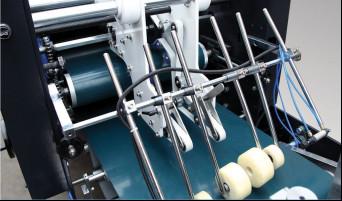

1. Paper Feeding Section

Feeding belts equipped with the function of air suction.Equipped with new type of feeding knife. You can adjust them according to the box shapes.With special pushing teeth function, easy to adjust the backing board.Vibration device coordinate with motor which helps machine consecutive and automatic feeding quickly and simply.

2. Aligner Section

The paper board sent from feeder section will be corrected by aligner section to ensure transmission accurately.
Pressing drive pressure can be adjusted up and down to accommodate different paper board thickness.

3. Pre-folding Section

Special first folding line pre-fold 180°. third line 135° ,which perfectly meeting the requirements of automatic packaging industry.

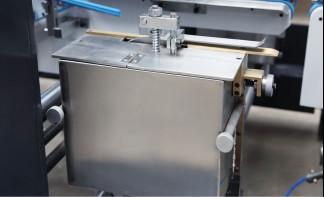

4. Lower Gluing Tank

lower gluing tank is large volume.
Easy to remove and clean
Electronic upper gluing system by guns.

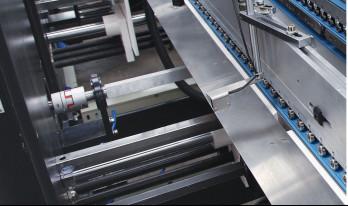

5. Folding and Closing

Equipped with flexible box forming device to ensure the perfect forming of the box.The upper pressure belt adopts main drive and cylinder pressure, is mainly used for the production of different thickness of corrugated products.

6. Trombone

Belt can be adjusted independently.
Independently adjust the speed, and draw back the distance of the paper, convenient for collection.Equipped with electronic photoelectric counting function, convenient for counting.

7. Transmission

Pressing and Transmission unit has regulator,patting device, can effectively avoid the “scissors mouth” phenomenon of corrugated products.Pressing and Transmission unit adopts waiting function, when feeding section is in the pause status, it will automatically enable waiting function. If has error in paper collection unit, it will automatically stop the machine work.

8. 4 and 6-corner device

Motorized and untimed electronic back folding system with intelligent servo motor technology

Samples Parameters

Straight Line Box Crash Lock Bottom Box
Box Type
Straight Line Box
Crash Lock Bottom Box
4 Corners Box
6 Corners Box
A+B+C+D+E
-----
-----
-----
260-1200
B+C(Min)
-----
-----
-----
90
A+B+C
-----
-----
160-1200
-----
B(Min)
-----
-----
90
90
C(Min)
-----
-----
-----
30
D(Min)
-----
-----
-----
70
B+C+D+E
280-1200
280-1200
-----
-----
C+D
140
140
-----
-----
C+D+E
70
-----
-----
-----
F
70-900
70-900
70-900
70-900
G(Max)
900
900
900
900
H(Min)
-----
25
25
25
L
-----
30-100
30-100
30-100
D+E(Max)
300
-----
-----
-----
G(Max)
400
-----
-----
-----
4 Corners Box 6 Corners Box

Application

Straight-line Type
Crash Lock Bottom Type Four Corners Type
Customer
Company Profile
Why Choose Us
Product packaging

Q1: Are you a manufacturer or a trading company?

A: Our shanghai office is mainly doing export. We have our own factory in Wenzhou, Zhejiang Province.

Q2. What is the machine warranty?

A: One year. After the warranty, we still provide technical support to buyer at low cost.

Q3. What is the production time while placing order?

A: Normally about 10-20 days.

Q4. What is the delivery time?

A: 15-30days after deposit.

Q5. Can your company handle shipping for customers?

A: Yes, just give us destination sea port or container yard.

Q6. Does the packing strong?

A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included..

Q7. How about the machine installation and training ?

A: 1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training. You shall pay the round trip air fare and accommodations, plus each technician charges USD100/per day.

Q8. Do you have machines in stock?

A: For standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.
