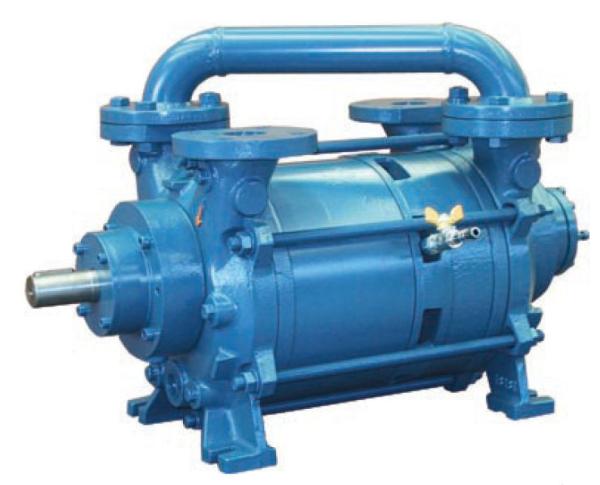

Energy Saving Liquid Ring Vacuum Pump , Packing Seal / Mechanical Seal Liquid Ring Pump
Energy Saving Liquid Ring Vacuum Pump , Packing Seal / Mechanical Seal Liquid Ring Pump
Specifications
Brand Name :
Paragon
Model Number :
2BE1
Certification :
ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
200pcs per month
Delivery Time :
50 working days after received your payment
Packaging Details :
Packed in wooden case
Application :
corrosive gas and liquid
Advantage :
energy saving
Warranty :
1 year
Drive :
direct connection, belt, reducer
Color :
Customize
Shaft sleeve :
Wear-resisting
Description

Energy Saving Liquid Ring Vacuum Pump , Packing Seal / Mechanical Seal Liquid Ring Pump

Description:

The liquid-ring pump compresses gas by rotating a vaned impeller located eccentrically within a cylindrical casing. Liquid (usually water) is fed into the pump and, by centrifugal acceleration, forms a moving cylindrical ring against the inside of the casing. This liquid ring creates a series of seals in the space between the impeller vanes, which form compression chambers. The eccentricity between the impeller's axis of rotation and the casing geometric axis results in a cyclic variation of the volume enclosed by the vanes and the ring.

Feature:

As the result of the flexible valve provided in the outlet to adjust the discharge angles, the pump can work efficiently at different suction conditions.

The rotating parts of the pump do not contact each other in the working chamber. Axial and radial load is borne by different bearings, being stable, safe and reliable.

There is observation hole on the side cover, pump’s corrosive and scaling conditions can be observed through the hole, it is easy to maintain.

Single stage and end suction structure, axial gas suction and discharge, being simple in structure and convenient for maintenance.

There are packing seal and mechanical seal two kinds of structures to meet the needs of the different seals.

Applications:

Vacuum drying for water washer

Vacuum food packing

Vacuum cleaner

Preservation of processed goods

Absorption carrier

Vacuum car

Elimination of shaved chips

Vacuum casting

Product tags

liquid ring vacuum pump operation

,

liquid ring type vacuum pump

,

vacuum liquid ring pump
