5lanes PE Film Paper Roll Wrapping Machine For sale
5lanes PE Film Paper Roll Wrapping Machine For sale
5lanes PE Film Paper Roll Wrapping Machine For sale
5lanes PE Film Paper Roll Wrapping Machine For sale
5lanes PE Film Paper Roll Wrapping Machine For sale
5lanes PE Film Paper Roll Wrapping Machine For sale
Specifications
Brand Name :
FEXIK
Model Number :
F-T8
Certification :
ISO9001/CE
Place of Origin :
CHINA
MOQ :
1
Price :
USD 240000-270000 USD/SET
Payment Terms :
T/T
Supply Ability :
15 sets/year
Delivery Time :
120-150days
Packaging Details :
standard package for sea shipping
Usage :
Automatic paper tissue and towel roll wrapping machine PE film material
Production speed :
35-140 packs/min
Infeed :
1-5 lanes
Layers :
1 or 2 layers design
Average format changeover time :
10-30 min
Roll diameter :
90-160(200)mm(3.5”-6.3”)(7.9”)
Roll length :
90-300(3.5”-11.8”)
Pack width :
100-650mm(3.9”-25.6”)
Pack length :
90-630mm(3.5”-24.8”)
Pack height :
90-270mm(300mm) (3.5”-10.6”)(11.8”)
Power supply :
Power supply
Air Consumption :
＜500 L/Min
Wrapping Material :
PE,LDPE
PE thickness,LDPE :
25-50 microns
Real Power consumption :
32KW
Description

Automatic paper tissue converting machine towel roll wrapping machine

1. Machine Outlook

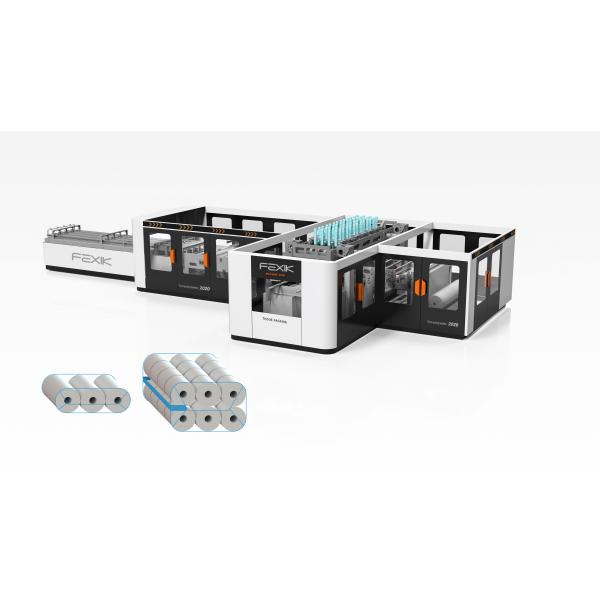

As a result of a constant search to create something unique and to contribute to ecologically oriented way of thinking, our company has launched a new product- F-T8 roll wrapping machine.

This is our latest and technologically most advanced machine for packaging toilet and kitchen towel rolls with a wide range of packaging configurations.

It can pack up to 140 packs/min (speed is in correlation with packaging configuration) and it has the possibility of packaging five roll wide packs. We have added possibility of packing vertical core rolls (optional).

5lanes PE Film Paper Roll Wrapping Machine For sale

2. General Description

This equipment is a paper roll wrapping machine to pack toilet paper and paper towel roll automatically. It normally connects with non-stop rewinding machine and log saw cutting machine as a converting line. The packing material is plastic film, PE or other film material. It is three-dimensional packing style. The finished package is be sealed on both sides and bottom sides. Handle applicator is optional. This kind of packing style is very popular in many countries.

Conveyor design

Four-channel motorized belt conveyor, about 4meters long, controlled by inverter, for rolls accumulation.

The group includes series of photo-eyes sensors for controlling the right position and the presence of rolls.

5lanes PE Film Paper Roll Wrapping Machine For sale

Main Technical Parameters

Name Technical Parameters
Production speed 35-140 packs/min
Max mechanical speed 160 packs/min
Infeed 1-4 lanes (optional 5 lanes)
Layers 1 or 2 layers design
Average format changeover time 10-30 min
Roll diameter 90-160(200)mm(3.5”-6.3”)(7.9”)
Roll length 90-300(3.5”-11.8”)
Pack width 100-650mm(3.9”-25.6”)
Pack length 90-630mm(3.5”-24.8”)
Pack height 90-270mm(300mm) (3.5”-10.6”)(11.8”)
Power supply 380V 50HZ/60HZ
Air Consumption ＜500 L/Min
Wrapping Material PE,LDPE
PE thickness,LDPE 25-50 microns
Real Power consumption 32KW
Machine weight About 8000kg

5lanes PE Film Paper Roll Wrapping Machine For sale

5lanes PE Film Paper Roll Wrapping Machine For sale
