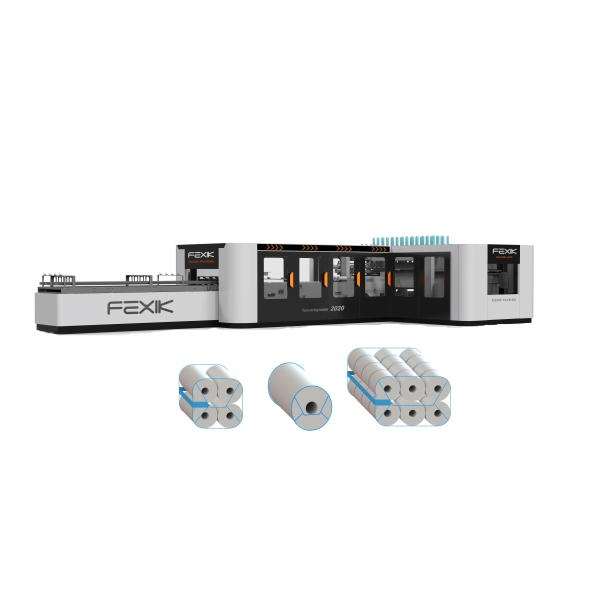

1. Machine Appearance

F-T8 roll wrapping machine is a new generation wrapper with highest production speed on the market and at the same time around 40% less energy consumption comparing to known conventional models which declare same or similar speed.

2. General Description

It is the end part of a converting production line. It is used to pack maxi roll, toilet paper rolls and kitchen towels. The wrapping material is plastic film. This packing style is very popular in America, Europe, Latin America and some countries in Africa and Asia.

F-T8 model roll wrapper is very economical and efficient packaging machine for hygienic rolls. It is dedicated to pack toilet tissue rolls, maxi rolls or kitchen towel rolls in foil.

This wrapping machine is easy to use, it is fully servo driven, controlled by the most advanced motion controller SIMOTION D, origin Siemens brand, which make extremely reliable production process possible. It reaches capacity production speed over 140 packs/minute. With a very low cost of maintenance and with compact dimensions, this toilet paper and paper towel wrapping machine is ideal for mid-range or large-range converting lines.

3. Main Features and Advantages

1) Adopting SIEMENS SIMOTION control system and other advanced world famous brand components in pneumatic parts, electric parts and operation parts. Parameters can be set conveniently and quickly. Machine Automatically completes whole process from the automatic feeding, arranging, wrapping and sealing. Running in a high speed and no pollution.
2) Designed to have various specifications format changeover between toilet roll and kitchen towel with advanced double layers arrangement system.
3) Designed to have quick and flexible format changeover.
4) Using printed film as packing material, it saves the cost.
5) Maximum five-lane infeeding and packing function

Smaples

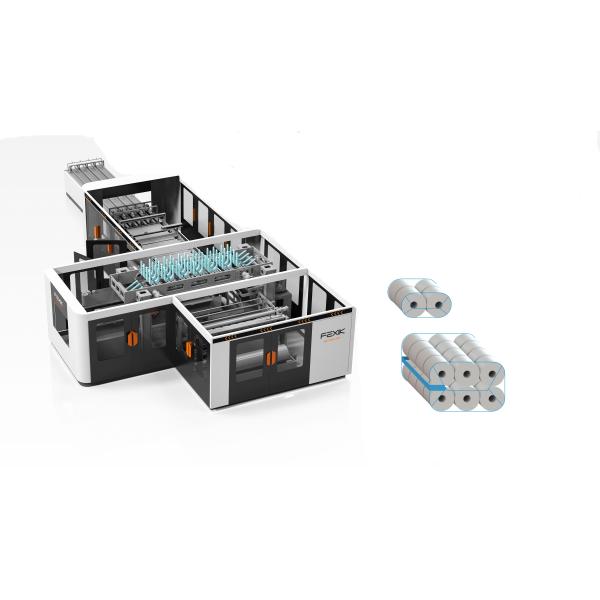

4. working principle

Paper rolls are comning from log saw cutting machine and rewinding machine, transported by conveyor belt; they are launched in the number of channels according to wrapping configuration set on HMI in single layer or double layers, where they are transported and stacked by group of carbon bars mounted on trimming belts. Carbon bars convey the group of paper rolls on the belt, which leads them into the area of folding. The foil positioning section brings the packaging film directly above the rolls by transport belts. The folding process is performed by universal side folders, as well bottom folder and counter folder. Side folding is done by innovative air supported mechanical folders. The overhead pack transport section continuously moves the pack through section of side folding and rotating bottom sealer and deliver pack to side sealing section. All motions and functions are fully controlled by the 21 independent servo motors and 6 inverter motors.

Four-channel motorized belt conveyor, about 4meters long, controlled by inverter, for rolls accumulation. The group includes series of photo-eyes sensors for controlling the right position and the presence of rolls.
