Multiple toilet rolls wrapping machine paper tissue making machine​

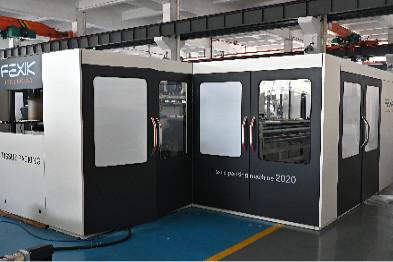

1. Machine Appearance

This is our latest and technologically most advanced machine for packaging toilet and kitchen towel rolls with a wide range of packaging configurations.

It can pack up to 140 packs/min (speed is in correlation with packaging configuration) and it has the possibility of packaging five roll wide packs. We have added possibility of packing vertical core rolls (optional).

2. General Description

The wrapper is for packaging toilet tissue and kitchen towel rolls with a wide range of wrapping configuration. It is conneted with cutting machine, the end part of a production line. The packing material is plastic film, PE or others. This packing style is very popular in Latin America, America, Europe and others Arabic speaking countries.

Highly efficient packaging machine for wrapping different configurations of toilet rolls and kitchen towels on a single layer or double layer. It can also wrap a single roll or two maxi rolls by FOLD&SEAL style. Due to full servo control, this wrapper is extremely flexible and user friendly.

This roll wrapping machine is easy to operate, it is full servo driven and controlled by the most advanced motion controller SIMOTION D, origin Siemens brand, which make extremely reliable production process possible. It reaches capacity production speed over 140 packs/minute. With a very low cost of maintenance and with compact dimensions, this toilet paper and paper towel wrapping machine is ideal for mid-range or large-range converting lines.

3. Main Features and Advantages

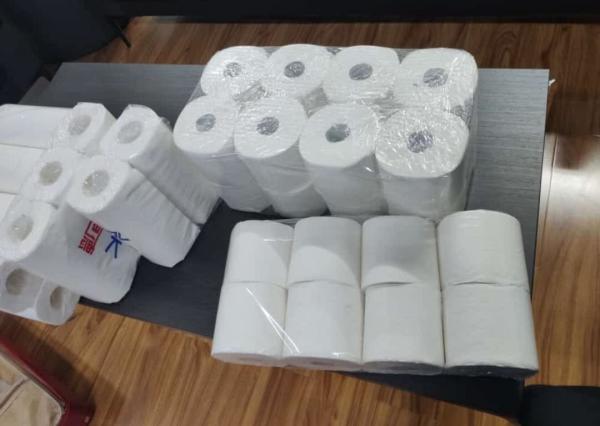

1) The double-layer packing equipment provides lots of packaging configurations for toilet roll and kitchen towel. Full automatic and high speed multiple-rolls wrapper with plastic film material.

2) It is easy to operate and full servo driven and controlled by the most advanced motion controller SIMOTION D, which allows an extremely reliable production process.The output speed can reach 140 packs/min.

3) User friendly touch screen with helped operation & changeovers, variety of packaging configurations are available. This wrapping machine is designed have many kinds of packaging configurations according to customers’ requirements.

4) Optional for five lanes infeeding function and vertical toilet tissue rolls configurations.

5) Selecting bearings, reducers, guide rails, sliders, and various photoelectric are chosen from the world's well-known brands. At the same time, rugged components are used in all areas to reduce vibration and ensure long-term reliability

6) This wrapper can pack perfectly even running in high speed.

7) The use of motor adjustment is convenient and quick, providing an extremely easy and quick format changeover.

4. working principle

The rolls are transfered by conveyor belt from front machines of a production line; they are launched in the number of lanes accordingly, which is set by human interface, in the single layer or double layers into in-feeding section, where they are transported and stacked by group of carbon bars mounted on trimming belts. Carbon bars convey the group of rolls on the elevator, which leads them into the area of folding. The foil positioning section brings the packaging film directly above the rolls by transport belts. The folding process is performed by universal side folders, as well bottom folder and counter folder. Side folding is done by innovative air supported mechanical folders. The overhead pack transport section continuously moves the pack through section of side folding and rotating bottom sealer and deliver pack to side sealing section. All motions and functions are fully controlled by the 21 independent servo motors and 6 inverter motors.

Conveyor design

Four-channel motorized belt conveyor, about 4meters long, controlled by inverter, for rolls accumulation.

The group includes series of photo-eyes sensors for controlling the right position and the presence of rolls.

6. Main Technical Parameters

Optional

* 5th lane
* Additional conveyors
* Rolls and packs handling devices

* Roll upender to provide vertical core packs
