Toilet paper making machine roll wrapping machine film packing material

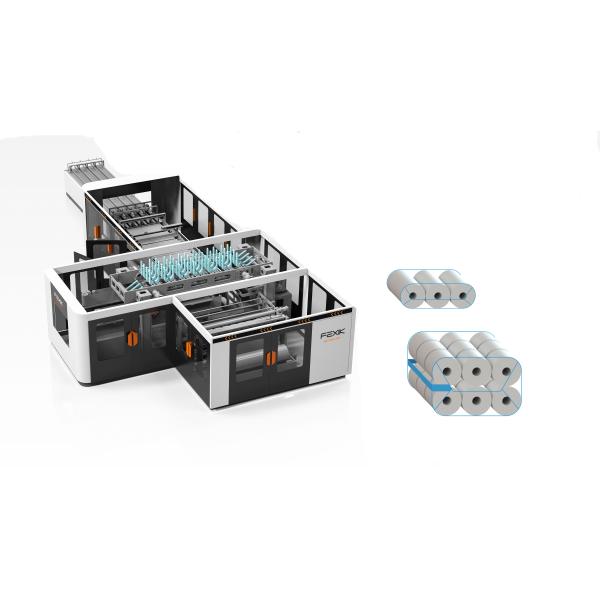

1. Machine Appearance

2. General Description

The wrapper F-T8 is our latest design and most advanced machine for packaging toilet tissue and kitchen towel rolls with a wide range of wrapping configuration.

working principle

The tissue rolls are transfered by converyor belt from log saw cutting machine or band saw cutter; they are launched in the number of lanes according to packing configuration set on the touch screen, in the single layer or double layers into in-feed section, where they are transported and stacked by group of carbon bars mounted on trimming belts. Carbon bars convey the group of rolls on the elevator, which leads them into the area of folding. The foil positioning section brings the packaging film directly above the rolls by transport belts. The folding process is performed by universal side folders, as well bottom folder and counter folder. Side folding is done by innovative air supported mechanical folders. The overhead pack transport section continuously moves the pack through section of side folding and rotating bottom sealer and deliver pack to side sealing section. All motions and functions are fully controlled by the 21 independent servo motors and 6 inverter motors.

3. Main Features and Advantages

Adopting SIEMENS SIMOTION control system and other advanced world famous brand components in pneumatic parts, electric parts and operation parts. Parameters can be set conveniently and quickly on the human interface.

1)Packing Material: plastic film
2)Infeeding lanes: 1 to 5lanes.
3)Layer: 1 to 2 layer.
4)Configuration:
Maxi roll: 1 roll pack, 2rolls pack
Kitchen towel: 1, 2, 3rolls .....20rolls pack
toilet rolls: 2, 3, 4, 5, 6, 8, 9 rolls .....50rolls pack.
5)Speed: 35packs- 160 packs per min.

Main Technical Parameters
