CE ISO 400m/Min toilet Paper Roll Rewinding Machine
CE ISO 400m/Min toilet Paper Roll Rewinding Machine
CE ISO 400m/Min toilet Paper Roll Rewinding Machine
CE ISO 400m/Min toilet Paper Roll Rewinding Machine
CE ISO 400m/Min toilet Paper Roll Rewinding Machine
CE ISO 400m/Min toilet Paper Roll Rewinding Machine
Specifications
Brand Name :
ZODE
Model Number :
ZD-F250
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
1 SET
Price :
USD 20000-300000
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
60 sets per month
Delivery Time :
30-60 days
Packaging Details :
wooden case
Name :
mini paper slitter rewinder slitting machine price,Kraft Paper Jumbo Roll Slitter Rewinder Slitting Machine For Paper
Product Name :
toilet paper production line
Voltage :
380V,380 Voltage / 50 Hz(Option),380V/50HZ,Customized
Weight :
4-20 tons
Type :
Slitting Rewinder,Paper Cutting Machine,cutting and rewinding
After-sales service provided :
Engineers available to service machinery overseas,Field installation,commissioning and training,Video technical support
Condition :
New
Warranty :
2 years
Computerized :
Yes
Application :
Machinery & Hardware,Paper Industry
Product name :
paper roll slitting rewinding machine ( min width 10 mm ) supplier
Automatic grade :
Automatic
Driven type :
Electric
Packaging material :
Wood
Description

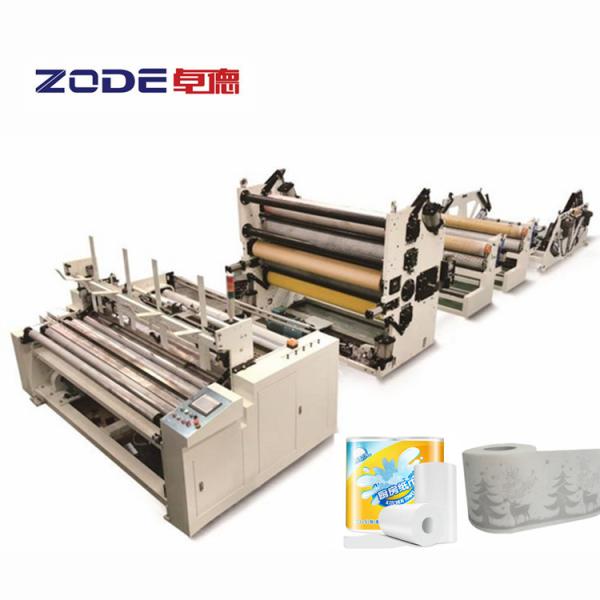

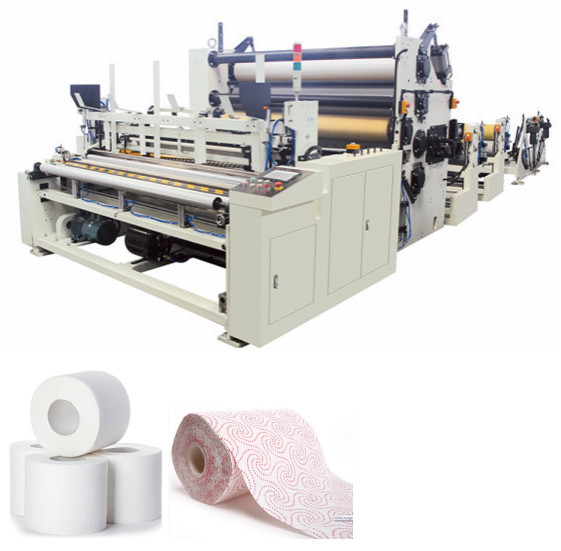

Automatic High quality Toilet Paper Roll Making Machine Production Line

Professional Toilet Tissue Paper Production Line

Which is including is full-automatic production line, which composed of 1 set of CIL-SP-75B Full-automatic high-speed rewinding and perforated toilet paper machine(it can be 2 sets according to requirement), 1 set of CIL-SP-280 roll paper log saw cutting machine, 1 set of CIL-SP-398 multi-rolls packing machine and convey belts.

A. For paper width up to 2700mm to make bathroom tissue, kitchen towels. Equipped with variable perforation length system to satisfy any length need. The speed of this rewinder is up to 325m/min, 6 cycles per minute, including:
Two steel to rubber or steel to wool embossing units.
Two or three backstands, with a double or three belt driving system, for jumbo rolls up to 1500mm diameter, and with a pneumatic loading of jumbo roll system.
B. This CIL-SP-A-A Economical line will automatically change core and unload the finished products, and automatically trim and seal the tails of the logs, leaving a lip about 20mm to make it easy for consumers to start using the rolls without tearing the paper at the seal.
C. All the driven system to be by means of synchronous belts, nylon belts and gears, for years of free maintenance. Electrical eyes will be mounted on the different parts of the line to monitor the machine and stop it in case it runs out of paper, cores or any other unforeseen problems. The lubrication systems will be provided on the major parts of the line.
D. The motor power is 7.5kW. Variable frequency control depending on the final specifications and requirements.
E. This line is to be controlled by a PLC of your choice.

CE ISO 400m/Min toilet Paper Roll Rewinding Machine

Product Name
Professional Toilet Tissue Paper Production Line
Model
ZD-F250
Speed
200-400m/min
Width of raw paper roll
1750mm~2900mm
Diameter of raw paper roll
1200mm (other size must be pointed out);Inner core's diameter:76.2mm
Embossing Units
Steel to Rubber /Steel; Full embossing or edge embossing to be chosen by request
Power supply
20-30kw ,380V ,50/60HZ
Weight
4-20 tons

Toilet paper rewinding machine is a toilet paper rolls processing machine, we provide both semi manual and automatic type.

complete set toilet paper rolls converting machine include 3 machines, tissue paper rewinder ,automatic band saw /log saw paper cutting machine ,multi rolls machine,or single rolls packing machine and also necessary parts air compressor, spare parts ,connection air pipe and so on.
CE ISO 400m/Min toilet Paper Roll Rewinding MachineCE ISO 400m/Min toilet Paper Roll Rewinding MachineCE ISO 400m/Min toilet Paper Roll Rewinding Machine
