Non Stop HMI Paper Slitter Rewinder , 250m/Min Jumbo Roll Slitter Rewinder
Non Stop HMI Paper Slitter Rewinder , 250m/Min Jumbo Roll Slitter Rewinder
Non Stop HMI Paper Slitter Rewinder , 250m/Min Jumbo Roll Slitter Rewinder
Non Stop HMI Paper Slitter Rewinder , 250m/Min Jumbo Roll Slitter Rewinder
Non Stop HMI Paper Slitter Rewinder , 250m/Min Jumbo Roll Slitter Rewinder
Non Stop HMI Paper Slitter Rewinder , 250m/Min Jumbo Roll Slitter Rewinder
Specifications
Brand Name :
ZODE
Model Number :
ZD-H300
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
1 SET
Price :
80000-600000
Payment Terms :
L/C, D/P, T/T, MoneyGram, Western Union
Supply Ability :
60 SETS PER MONTH
Delivery Time :
60 DAYS
Condition :
New
After-sales service provided :
Online support,Video technical support,Engineers available to service machinery overseas,Field installation,commissioning and training
Warranty :
2 years
Voltage :
220V,380v/220v,220V/380V,3 phased 400V±10%,380V
Automatic grade :
Automatic
Applicable industries :
Manufacturing Plant
Product name :
bathroom tissue making machine
Description

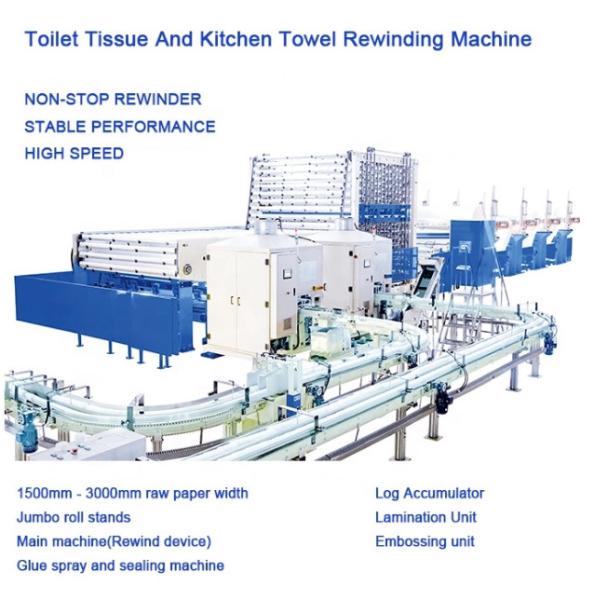

High Speed Non-stop Full Automatic Toilet Paper Towel Making Machine Production Line

Product Description

High Speed Non-stop Full Automatic Toilet Paper Towel Making Machine Production Line is to perforate and cut the raw paper into various sizes according to the requested. The finished product is neat, in good order and with equality tension. It has the feature of compact structure, easy and stable operation, less electricity consumption and covers a small area. The highest production speed is 200-250M/min.

Characteristics of High Speed Non-stop Full Automatic Toilet Paper Towel Making Machine Production Line

This machine can be adjusted to produce different size of kitchen towel and toilet paper. It means you buy one production line machines that you can produce many size of kitchen towel and toilet paper,it is very cost-effctive

Non-stop type machine,continuously rewind

Servo motor controls running acceleration,web-break at the perforated line steadily and precisely.

Each unit is driven by independent servo motor,could easily adjust web tension of each position,

after years could still guarantee the accuracy of product total length and perforation size,and roll tension. Simple structure decreases failure rate.

Adopt high-precision NC machined large diameter blade shaft.

Patented technology:use constant-vacuum system to start rewind fast and wrinkles.

Non Stop HMI Paper Slitter Rewinder , 250m/Min Jumbo Roll Slitter Rewinder

Technical Parameter:

SPECIFICATIONS
Model 1400mm,1500mm, 1800mm, 2000mm,2200mm,2800mm, 2900mm, 3000mm
Jumbo roll width 1350mm, 1450mm,1750mm, 1930mm, 2150mm, 2750mm, 2850mm, 2950mm
Jumbo roll core size Φ76mm (other size to be specified)
Finished roll diameter Φ 60-130mm(Tightness is adjustable)
Finished roll core diameter Φ 32-50mm
Perforation pitch Standard size: 110mm(Adjustable)
Perforation 4PCS sprial upper perforation knives,improve the durability
Parameter set Touch Screen HMI(Siemens)
Machine speed 200-250m/min or 350-400m/min

Details:

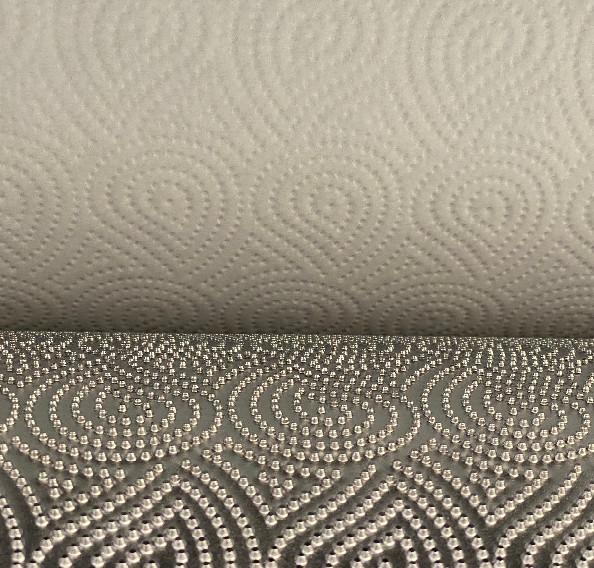

Full embossing device

This embossing unit can engrave the pattern without color,the diameter of roller is 400mm, and the pattern is engraved by computer, it it very clear and regular.

Non Stop HMI Paper Slitter Rewinder , 250m/Min Jumbo Roll Slitter Rewinder

Jumbo roll stand

Independent wall-type jumbo roll stand, stucture is simpler and stronger, easy to clean. It is controled by the independent frequency motor, and the tension is tracked by the encoder.

Glue lamination device

This glue lamination unit can add colors, but one glue lamination can only engrave one kind of pattern, the diameter of the embossing rollers are 394mm.And the pattern is engraved by computer, it it very clear and regular.

Pattern can be any logo, words, flowers,etc

Real machine model:

1 rewinding unit + 1 glue lamination unit + 2 full embosing units + 2 junbo roll stands
