27bags/Bundler Pack Toilet Tissue Making Machine , 23packs/Min Bundle Packing Machine
27bags/Bundler Pack Toilet Tissue Making Machine , 23packs/Min Bundle Packing Machine
27bags/Bundler Pack Toilet Tissue Making Machine , 23packs/Min Bundle Packing Machine
27bags/Bundler Pack Toilet Tissue Making Machine , 23packs/Min Bundle Packing Machine
27bags/Bundler Pack Toilet Tissue Making Machine , 23packs/Min Bundle Packing Machine
27bags/Bundler Pack Toilet Tissue Making Machine , 23packs/Min Bundle Packing Machine
27bags/Bundler Pack Toilet Tissue Making Machine , 23packs/Min Bundle Packing Machine
27bags/Bundler Pack Toilet Tissue Making Machine , 23packs/Min Bundle Packing Machine
27bags/Bundler Pack Toilet Tissue Making Machine , 23packs/Min Bundle Packing Machine
27bags/Bundler Pack Toilet Tissue Making Machine , 23packs/Min Bundle Packing Machine
Specifications
Brand Name :
ZODE
Model Number :
ZD-C25
Certification :
CE,ISO
Place of Origin :
China mainland
MOQ :
1 set
Price :
USD 38000-USD 54000 per set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
25-35 sets per month
Delivery Time :
15-30 days
Packaging Details :
plastic film+Vacuum+export wooden case
Product name :
good quality facial tissue bundler packing machine
Packing material :
PE pre-made plastic bag
Packing configuration :
1 row, 2 rwo, 3 row;
Packing format :
2 to 27 bags per bundler pack
Control system :
Control by PLC
Function :
facial tissue, wet wipes packaging machine
Power :
380V 50Hz
After-sales service :
Engineer available to customer's factory to install machine
Stable Speed :
5-23 packs/min
Packing size :
L550*W420*H150mm
Packaging :
export wood case packaging
Description

Paper product making machine good quality

facial tissue bundler packing machine

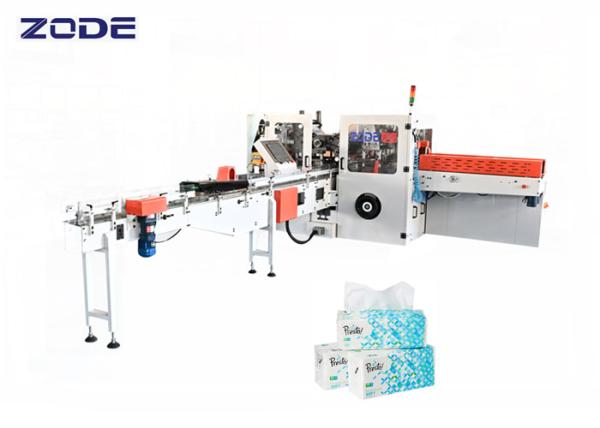

ZD-C25 Paper product making machine good quality facial tissue bundler packing machine.

The tissue arangment,flip,counting line up,bag push,forward filling,bag filling,pulling,sending,opening.sealing,cutting and other actions implementing organization all use servo drive control,simple operation and easy maintenance.

27bags/Bundler Pack Toilet Tissue Making Machine , 23packs/Min Bundle Packing Machine

(1) This model is designed to package facial tissue and wet wipes in single row, double rows and three rows.
(2) The maximum packaging size is L650*W420*H120mm. Of course, it also can be adjusted to the size that you want.
(3) Equipped with automatic alarm. The light is green when the machine work normally. But if there are any problem with the machine, the light will turned red automatic.
(4) Automatic change packing configurations, it is easy to operate and save time
(5) This machine is small, do not need too much space, it can save space for the production line
27bags/Bundler Pack Toilet Tissue Making Machine , 23packs/Min Bundle Packing Machine
27bags/Bundler Pack Toilet Tissue Making Machine , 23packs/Min Bundle Packing Machine
Facial tissue automatic production line:
Single channel facial tissue cutting machine+facial tissue single packing machine+facial tissue bundle packing machine
27bags/Bundler Pack Toilet Tissue Making Machine , 23packs/Min Bundle Packing Machine
Specifications:
Item Technical Parameters
Product name Facial tissue automatic packing machine
Out put 5-23 bags/min
Size range bag L550*W420*H120mm
Configuration

1-3 rows

2-6 bags per row
Power supply 380V 50HZ
Mini air pressure 0.5 Mpa
Packing material PE, CPP Pre-cut bag
Power consumption 11kw
Machine size L2600*W1500*H1950mm
Machine weight 2000kg
Automatic type Full automatic
Stable Speed 5-23 packs/min

Feature:

It adopts full servo technology, touch screen and PLC control system. Convenient and quick parameter setting, with the automatic design, it can accomplish feeding, arranging, opening the bag, filling into the bag, inserting angle and sealing. The world's first 180-degree flip on the bag body, making the device smaller, lower energy consumption.
27bags/Bundler Pack Toilet Tissue Making Machine , 23packs/Min Bundle Packing Machine
The machine is designed to have a quick, flexible format changeover. Wide packing configurations meed different market's demands. This model is the ideal model to pack facial tissue and wet wipes.
27bags/Bundler Pack Toilet Tissue Making Machine , 23packs/Min Bundle Packing Machine
Real Product:
we have already exported to many countries, for example the USA,Singapore,Australia,Korea,and so on.we are able to supply our partners not only high quality product, but also special designed services.our price is very competitive because we are manufacturer we are the source.
Facial tissue and wet wipes bundle packing machine in mass production, gurrantee for the delivery time and good quality.
27bags/Bundler Pack Toilet Tissue Making Machine , 23packs/Min Bundle Packing Machine
27bags/Bundler Pack Toilet Tissue Making Machine , 23packs/Min Bundle Packing Machine
27bags/Bundler Pack Toilet Tissue Making Machine , 23packs/Min Bundle Packing Machine
Our Service
1) One year warranty
2) Engineers available to do machinery service overseas
3) Test sample support
4) 24 hours a day online service
Packaging details
27bags/Bundler Pack Toilet Tissue Making Machine , 23packs/Min Bundle Packing Machine
Delivery time and payment terms:

• 30% with the order as down-payment.
• 70% after machine completion, but before shipment.
• Will finished manufacturing in 15-30days after received the down-payment.
Production department
27bags/Bundler Pack Toilet Tissue Making Machine , 23packs/Min Bundle Packing Machine
Our exhibition
27bags/Bundler Pack Toilet Tissue Making Machine , 23packs/Min Bundle Packing Machine
Certificate
27bags/Bundler Pack Toilet Tissue Making Machine , 23packs/Min Bundle Packing Machine
