F-T8 500L/ Min Tissue Paper Wrapping Machine 5 Lanes LDPE 160 Packs / Min
F-T8 500L/ Min Tissue Paper Wrapping Machine 5 Lanes LDPE 160 Packs / Min
F-T8 500L/ Min Tissue Paper Wrapping Machine 5 Lanes LDPE 160 Packs / Min
F-T8 500L/ Min Tissue Paper Wrapping Machine 5 Lanes LDPE 160 Packs / Min
F-T8 500L/ Min Tissue Paper Wrapping Machine 5 Lanes LDPE 160 Packs / Min
F-T8 500L/ Min Tissue Paper Wrapping Machine 5 Lanes LDPE 160 Packs / Min
F-T8 500L/ Min Tissue Paper Wrapping Machine 5 Lanes LDPE 160 Packs / Min
F-T8 500L/ Min Tissue Paper Wrapping Machine 5 Lanes LDPE 160 Packs / Min
Specifications
Brand Name :
ZODE
Model Number :
F-T8
Certification :
CE, ISO
Place of Origin :
Liuzhou Guangxi, China
MOQ :
1 Set
Price :
USD 230,000-USD 300,000/Set
Payment Terms :
T/T
Supply Ability :
350 sets/year
Delivery Time :
90 work days
Packaging Details :
1)Inside package is plastic film, outside is wooden or plywood case 2)full automatic instant porridge machine packaging is based on the customers' need). 3)Only plastic film nude packing with wooden pallet. 4)We can supply fumigation package and certificat
Speed :
30-160 packs/min
Packing Specification :
1-60 rolls
Filling material :
PE/LDPE
Material :
Carbon Steel
Automatic Grade :
Automatic
Function :
Wrapping
Packaging Material :
Plastic
Advantage :
High speed,full automatic
Voltage :
380V 50Hz
Key Selling Points :
High Technology
Description

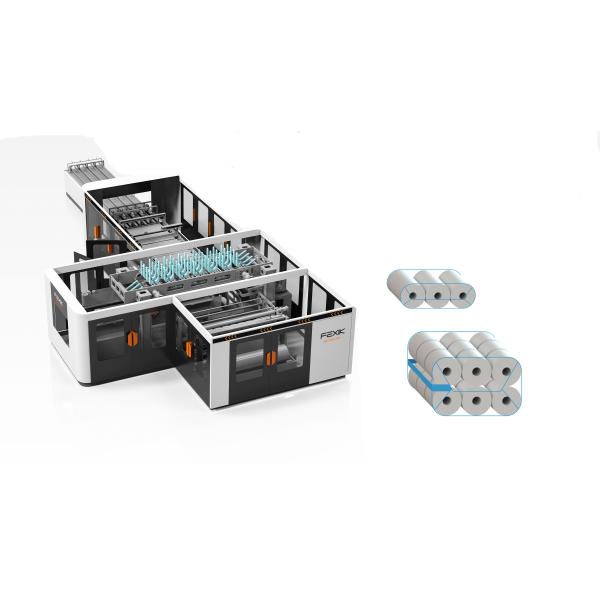

F-T8 Full Automatic Toilet Paper and Kitchen Towel Roll Wrapper

Product Description

F-T8 Full Automatic Toilet Paper and Kitchen Towel Roll Wrapper

T8 model wrapping machine is our latest and technologically most advanced machine for packaging toilet tissue rolls and kitchen towel rolls with a wide range of packaging configuration. It can pack up to 140 packs/min( Packing speed is in correlation with packaging configuration). The wrapping material is plastic film. It saves the cost a lot.

F-T8 500L/ Min Tissue Paper Wrapping Machine 5 Lanes LDPE 160 Packs / Min

Feature 1

F-T8 500L/ Min Tissue Paper Wrapping Machine 5 Lanes LDPE 160 Packs / Min

Cost saving
Instead of using prefabricated bags, this wrapping material is plastic film.
It saves the cost a lot!
Feature 2

F-T8 500L/ Min Tissue Paper Wrapping Machine 5 Lanes LDPE 160 Packs / Min

High production speed.

Stable speed is about 140+packs/min.
Max speed is able to reach 160+packs/min
Feature 3
Flexibility
The machine is designed to have quick and flexible format changeover.
The changing time less than 30 minutes.
Feature 4

It adopts full servo technology, touch screen and SIEMENS SIMOTION control system. Parameters can be set conveniently and quickly.

Machine Automatically completes whole process from the automatic feeding, arranging, wrapping and sealing. Running in a high speed and no pollution.
Feature 5
F-T8 500L/ Min Tissue Paper Wrapping Machine 5 Lanes LDPE 160 Packs / Min
Clients can choose whether the production has a handle( blue one ) or not.

Main Features

◆ It adopts full servo technology, touch screen and SIEMENS SIMOTION control system. Parameters can be set conveniently and quickly. Machine Automatically completes whole process from the automatic feeding, arranging, wrapping and sealing. Running in a high speed and no pollution.


◆ This machine is designed to have various specifications format changeover between toilet roll and kitchen towel with advanced double layers arrangement system.

◆ Adopting advanced world famous brand components in pneumatic parts, electric parts and operation parts.

◆ The machine is designed to have quick and flexible format changeover. The changing time less than 30 minutes.

◆ This machine is used plastic film roll to pack, it saves the cost.

◆ Five-channels motorized belt feeding conveyor with high technology controlled by SIEMENS SIMOTION control system.

Infeed
5 lanes
Pack height
90-270(300)mm (3.5-10.6" )(11.8" )
Max mechanical speed
160packs/min
Wrapping material
PE/LDPE
Production speed
140+packs/min
PE thickness/LDPE
25-30microns
Layers
1 or 2
Reel diameter
up to 500mm (19.7" )
Average format changeover time
10-30min
Install power
35kw
Roll diameter
90-160(200)mm(3.5-6.3" )(7.9" )
Real power consumption
18kw
Roll length
90-300mm(3.5-11.8" )
Air consumption
<500L/min
Pack width
100-265mm (3.9-24.6" )
Machine weight
8000Kg
Pack length
90-630mm(3.5-24.8" )

Detailed Images

F-T8 500L/ Min Tissue Paper Wrapping Machine 5 Lanes LDPE 160 Packs / Min

F-T8 500L/ Min Tissue Paper Wrapping Machine 5 Lanes LDPE 160 Packs / Min

Packing&Shipping

F-T8 500L/ Min Tissue Paper Wrapping Machine 5 Lanes LDPE 160 Packs / Min

After Sales Service
The normal package is wooden box(Size: L*W*H). Cover PE film,then packed by seaworthy Export Packing Wooden Case, ensure that the goods will safely arrive at the erection or construction site without any damage.
F-T8 500L/ Min Tissue Paper Wrapping Machine 5 Lanes LDPE 160 Packs / Min
Pre-Sales Service
