Stable Performance Facial Tissue Paper Making Machine Wall Plate Rack Structure
Stable Performance Facial Tissue Paper Making Machine Wall Plate Rack Structure
Specifications
Brand Name :
HENGXIN
Model Number :
HX-CS-190/5L
Place of Origin :
Quanzhou, Fujian, China
MOQ :
1 set
Payment Terms :
L/C, T/T
Certification :
CE, BV and ISO
Price :
$22,000/set
Supply Ability :
20 sets/month
Delivery Time :
60 days
Packaging Details :
Pallet
Condition :
New
Warranty :
1 Year
Type :
Facial Tissue Making Machine
After-sales service provided :
Engineers available to service machinery overseas, Online support, Video technical support
Application :
Paper Industrial Production
Color :
Customized
Description

Stable Performance Facial Tissue Paper Making Machine Wall Plate Rack Structure

Product Description:

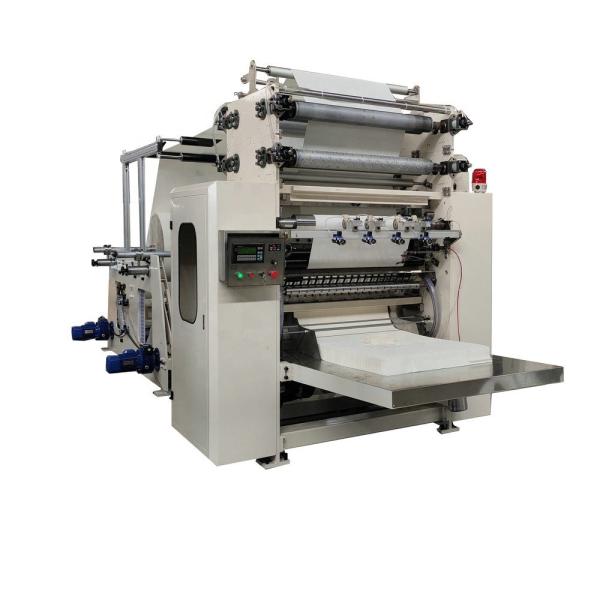

The HX-CS-190 / 5L box drawing facial tissue machine cuts the cut base paper through a knife roller and folds it into a chain-shaped rectangular or square facial tissue. This machine adopts independent drive of variable frequency motor, automatic tension adjustment and automatic stacking counting function. It has the advantages of high speed, neat folding and easy operation.

Main Function and Characteristics:

1. Equipped with pneumatic embossing roller, pneumatically separated. (Customized)

2. The whole machine is a wall plate rack structure, and the machine runs fast and has excellent stability.

3. Pneumatic jumbo roll loading on the paper return shelf, flexible speed adjustment, and can automatically adjust different paper tension.

4. Equipped with Roots type vacuum pump for large inspiratory capacity and stable running of the machine.

5. Equipped with steel to steel edge embossing device to keep the double plies together.

6. The machine would stop when the paper got broken to avoid waste caused by no paper or broken paper.

7. Adopt back and forth jog switch for towing the base paper, which is easy and safe to operate.

Main Technical Parameters:

Production speed (60-100)m/min
Product unfold size (mm) 180 (long) x130-210 (wide adjustable)
190 (long) x130-210 (wide adjustable)
200 (long) x130-210 (wide adjustable)
Folding products size (mm) 90 (long) x130-210 (wide adjustable)
95 (long) x130-210 (wide adjustable)
100 (long) x130-210 (wide adjustable)

Maximum cutting base paper size

 2L:420mm 3L:680mm 4L:840mm
Roots Vacuum pump 2L:7.5KW 3L:11KW 4L:11KW
Machine dimension (m) Depends on Machine Model
Equipment weight(kg) Depend on the size and configure

Our Advantages:

Experience Establish in the middle of 1990s, more than 25 years’ experience.
Manufacturer We are 100% factory.
One-stop Service Your One-Stop Solution Supplier, from design, production to shipping.
OEM&ODM OEM or ODM is available.
Fast Production We have a professional design team and a big range of machines.
Quality Control We strictly follow quality management system to insure product quality.
Production Ability Own the factory building and machines to make price competitive.

Final Products Display:

Toilet Paper Toilet Paper
Toilet Paper with Core
Toilet Paper without Core
Facial Tissue Soft Facial Tissue
Box Facial Tissue
Pocket Facial Tissue
Kitchen Towel Napkin Paper
Printing Napkin
Kitchen Towel

Packing & Shipping:

Packing Wooden pallet according to specific size of each equipment, we twine thick plastic coating for each machine.
Packing Details Tight the equipment in the pallet without space to ensure no rubbing during the transportation.
Shipping Sea transportation or train.
