Metal Cermet Carbide Insert Solid Carbide Tips SC10 SC20 SC30 SC50
Metal Cermet Carbide Insert Solid Carbide Tips SC10 SC20 SC30 SC50
Specifications
Brand Name :
SHENGONG
Model Number :
4.5*2.6*2.3
Certification :
ISO9001, ISO14001, ISO18001
Place of Origin :
China
MOQ :
100pcs
Price :
USD 0.20~1.00 / PC
Payment Terms :
T/T
Supply Ability :
1000000pcs per month
Delivery Time :
Stock / 30 Days
Packaging Details :
Plastic Bottles
Product Name :
Circular Saw Tips
Shape :
Standard/Customized
Application :
Steel Processing
Hardness :
HRA92-HRA93
Advantage :
Clean Cutting
Package :
Plastic Bottles
Material :
Cermet, SC10, SC20,SC30, SC50
Logo :
OEM/Our Logo
Feature :
Fast Sharp Cutting
Grade :
YG6/YG8/YG10X/YG20C
Description

Saw Blade for Metal Cermet Carbide Insert from China Material Grade SC10, SC20,SC30, SC50

Circular Saw Tips For Steel Cutting And Iron Cutting Tools

Description of carbide saw tip:

tungsten carbide saw tips usually used for process wood materials.as dry wood ,soft wood ,hard wood,original wood,solid wod,multiple wood,and nonferrous metal,most kinds of steel materials,granite,marble

Grade Chart

Grade Density(g/Cm³) Hardness(HRA) T.R.S(N/mm2) Recommended Cutting Application
SM02 15.0-15.2 94.5-94.8 ≥2200 For chipboard,MDF&HDF,Jaminated board,etc.
SM03 15.0-15.2 94.0-94.4 ≥2500 For veneer board,MDF&HDF,aluminum extrusions,etc.
SM06 14.9-15.1 93.6-94.0 ≥2600 For hardwood,copper,aluminum,plywood,MDF and Acrylic,etc.
SM07 14.8-15.0 93.2-93.6 ≥2700 For solidwood,hardwood,cooper,aluminum,plywood,etc.
SM09 14.6-14.8 92.4-92.8 ≥2800 For ceramic tile,solidwood,hardwood and various woodworking tools,etc.
SM10 14.2-14.4 92.0-92.5 ≥3000 For hardwood,Non-ferrousMetal,PCB circuit board and various woodworking tools,etc.
SM12 14.2-14.4 91.8-92.3 ≥3000 For stainless and alloy steel,etc.
XF5 14.9-15.1 91.2-92.0 ≥2100 For solidwood,composite board and Non-Ferrous Metal,etc.
XF6 14.7-14.9 92.0-92.8 ≥2200 For solidwood,hardwood and composite board,etc.
XF8 14.5-14.7 91.0-92.0 ≥2300 For construction formwork,Non-ferrous Metal and various woodworking tools,etc.
XF10 14.3-14.5 90.5-91.5 ≥2400 For wolidwood,hadwood and various woodworking tools,etc.
XK10 14.8-15.0 90.5-91.5 ≥2200 For solidwood,hardwood,etc.
XK20 14.6-14.8 89.5-90.5 ≥2400 For softwood,solidwod,etc.
XP40 13.0-13.2 91.2-91.8 ≥2800 For alloy steel,stainless steel and high-manganese steel,etc.
XP30 13.1-13.3 91.4-92.0 ≥2700 For common steel,color steel tile,etc.
YG8C 14.6-14.8 88.0-89.0 ≥2700 For weed,shrub,medium hard rock formation and natural stones,etc.
YG11C 14.3-14.5 87.0-88.0 ≥2600 For marble,granite and various mining tools,etc.
YG15C 13.9-14.1 85.5-86.5 ≥2800 For oil drill,stamping die material,etc.
YG20C 13.4-13.6 83.0-84.0 ≥3000 For various stamping die material,etc.

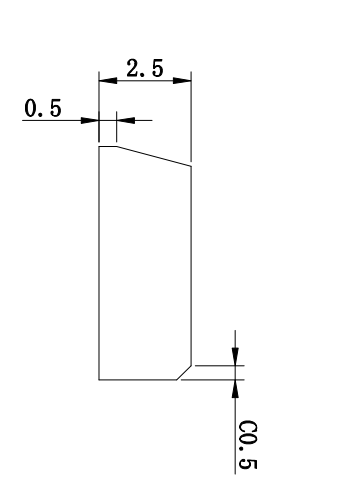

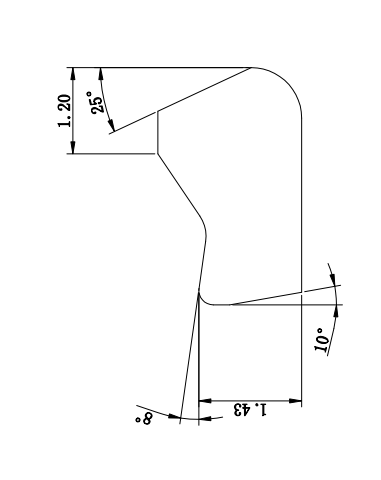

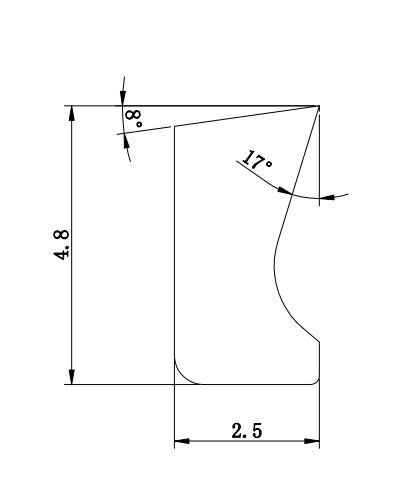

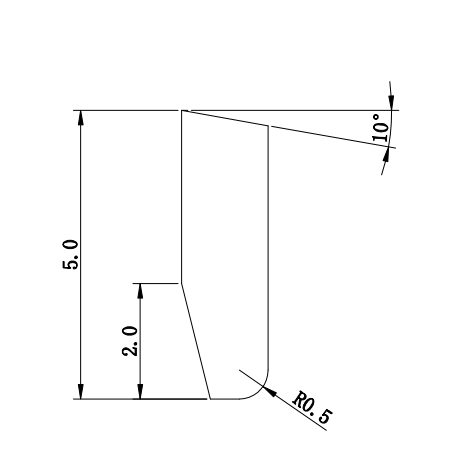

Detailed Images

Metal Cermet Carbide Insert Solid Carbide Tips SC10 SC20 SC30 SC50Metal Cermet Carbide Insert Solid Carbide Tips SC10 SC20 SC30 SC50

Metal Cermet Carbide Insert Solid Carbide Tips SC10 SC20 SC30 SC50Metal Cermet Carbide Insert Solid Carbide Tips SC10 SC20 SC30 SC50

About Us:

Sichuan Shen Gong Carbide Knives supplies circular saw tips made in cermet. Cermet is well grown up in metalworking, Cermet is a composite material composed of ceramics, for example titanium carbonitride and titanium nitride, and metals like molybdenum carbide and tungsten carbide, and bonded with nickel and cobalt.Cermet is commonly defined as an intermediate material between ceramic and cemented carbide. With cermet saw tips, you can cut longer time and get much better cutting surface than using a traditional carbide tipped saw. It’s definitely a new and interesting options for all the saw makers all over the world. Please feel free to inquire me with your demands.

Metal Cermet Carbide Insert Solid Carbide Tips SC10 SC20 SC30 SC50

FAQ

* Q: What is your main product?
* A: The main product include tungsten carbide bar, carbide wire drawing die, carbide drill bit button, carbide SS10 tips, carbide
strip and carbide plate, anvil, carbide inserts, and any other carbide products and customized products.

* Q: Do you have certification on your products?
* A: ISO 9001

* Q: What is about your general delivery date?
* A: Nomally 7-15 workdays .

* Q: What is your packing?
* A: We use standard export packing and customization is available.

* Q: Can I get the samples?
* A: Sure, contact us directly.
