420mm Thermal Paper Label Die Cutting Machine Die Cut Vinyl Sticker Machine
420mm Thermal Paper Label Die Cutting Machine Die Cut Vinyl Sticker Machine
420mm Thermal Paper Label Die Cutting Machine Die Cut Vinyl Sticker Machine
420mm Thermal Paper Label Die Cutting Machine Die Cut Vinyl Sticker Machine
Specifications
Brand Name :
FOCUS
Model Number :
420mm
Certification :
SGS, FSC
Place of Origin :
China
MOQ :
1 set
Price :
23500usd
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
50 sets per month
Delivery Time :
30-45 working days
Packaging Details :
wooden box
Name :
FOCUS Brand Automatic 420mm Rotary Thermal Paper Label Die Cutting Machine
Warranty :
1 year
Voltage :
380V, 60HZ
Speed :
80m/min
Machine weight :
1500kg
Condition :
New
Service :
Online service
Function :
roll to roll
Description

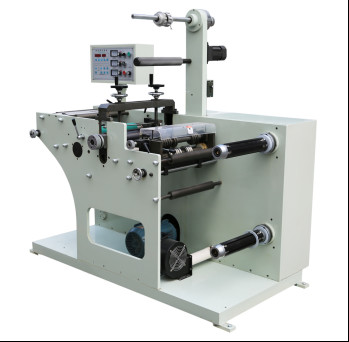

FOCUS Brand Automatic 420mm Rotary Thermal Paper Label Die Cutting Machine

Die-cutting machines are mainly divided into three types: round pressing, round pressing and flat pressing according to the different imprinting forms. According to the form of template placement, it can be divided into vertical and horizontal. There are two kinds of manual and automatic according to the degree of automation.

At present, most of the advanced die-cutting equipment is developing towards the fully automatic combination of printing and die-cutting. The circular-pressing-circle automatic die-cutting machine and the printing machinery are connected into an automatic production line. This production line consists of four main parts, namely the material part, printing part, die-cutting part, sending part, etc.


Model 420mm
Die cutting speed 80m/min
Working width 0-420mm
Maximum unwinding diameter 500mm
Maximum winding diameter 480mm
Die Cut Length 178-470mm(7" - 18,5")
Machine size 1.57mx1.02mx1.61m
Machine weight 1500kgs
Voltage 380V 60HZ


Machine Features:
420mm Rotary die-cutting machine is a new type of slitting machine with die-cutting function, it has a high-precision circular die-cutting system. This machine is suitable for blank self-adhesive labels. Die cutting and slitting can be done at one time. It has functions such as automatic meter counting, automatic shutdown, and photoelectric eye correction. This machine is characterized by compact structure, high speed, high efficiency, simple operation and stable operation.

Standard Configuration
Slitting device
One 3-inch unwinding air shaft Two 3-inch rewinding air shafts
Counting/meter counter
Two photoelectric eyes for deviation correction
8 round knives
One magnetic powder brake, two clutches


Product Application
This machine is used for self-adhesive, label, paper, film (PET, PC, PE), non-woven fabric, foam, double-sided tape, copper foil/aluminum foil and various roll materials of die cutting and slitting and it is most widely uesd in printing, packaging, 3C electronics, leather, clothing, plastic and other industries.

Suitable for die-cutting and slitting of self-adhesive, labels, paper, film (PET, PC, PE), non-woven fabric, foam, double-sided tape, copper foil/aluminum foil and various roll materials. Widely used in printing, packaging, 3C electronics, leather, clothing, plastic and other industries.
Detailed drawing:

420mm Thermal Paper Label Die Cutting Machine Die Cut Vinyl Sticker Machine


420mm Thermal Paper Label Die Cutting Machine Die Cut Vinyl Sticker Machine
420mm Thermal Paper Label Die Cutting Machine Die Cut Vinyl Sticker Machine420mm Thermal Paper Label Die Cutting Machine Die Cut Vinyl Sticker Machine

Application
420mm Thermal Paper Label Die Cutting Machine Die Cut Vinyl Sticker Machine
MACHINE PACKING AND TEST RUNNING OF THERMAL PAPER COATING MACHINE
Packaging Details
The normal package is wooden box. The wooden box will be fumigated. If container is too tigher, we will use pe film for packing or pack it according to customers special request
420mm Thermal Paper Label Die Cutting Machine Die Cut Vinyl Sticker Machine
420mm Thermal Paper Label Die Cutting Machine Die Cut Vinyl Sticker Machine
420mm Thermal Paper Label Die Cutting Machine Die Cut Vinyl Sticker Machine

​
420mm Thermal Paper Label Die Cutting Machine Die Cut Vinyl Sticker Machine
COMPANY INFORMATION
420mm Thermal Paper Label Die Cutting Machine Die Cut Vinyl Sticker Machine
SUCCESSFUL MACHINE PROJECTS
420mm Thermal Paper Label Die Cutting Machine Die Cut Vinyl Sticker Machine420mm Thermal Paper Label Die Cutting Machine Die Cut Vinyl Sticker Machine

THERMAL PAPER COATING MACHINE PRODUCTION PROCESS
420mm Thermal Paper Label Die Cutting Machine Die Cut Vinyl Sticker Machine
​
CUSTOMER FEEDBACK
420mm Thermal Paper Label Die Cutting Machine Die Cut Vinyl Sticker Machine
FOCUS attends more than 15 exhibitions of carbonless paper/thermal paper/paper coating machine every year all over the world to meet and service clients face to face.
420mm Thermal Paper Label Die Cutting Machine Die Cut Vinyl Sticker Machine
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
